EcoQuip 2 EQ400t Elite

EcoQuip 2 EQ400T System

Part Number: 279980

product image product image

EcoQuip 2 EQ400t Elite

EcoQuip 2 EQ400T System

Part Number: 279980

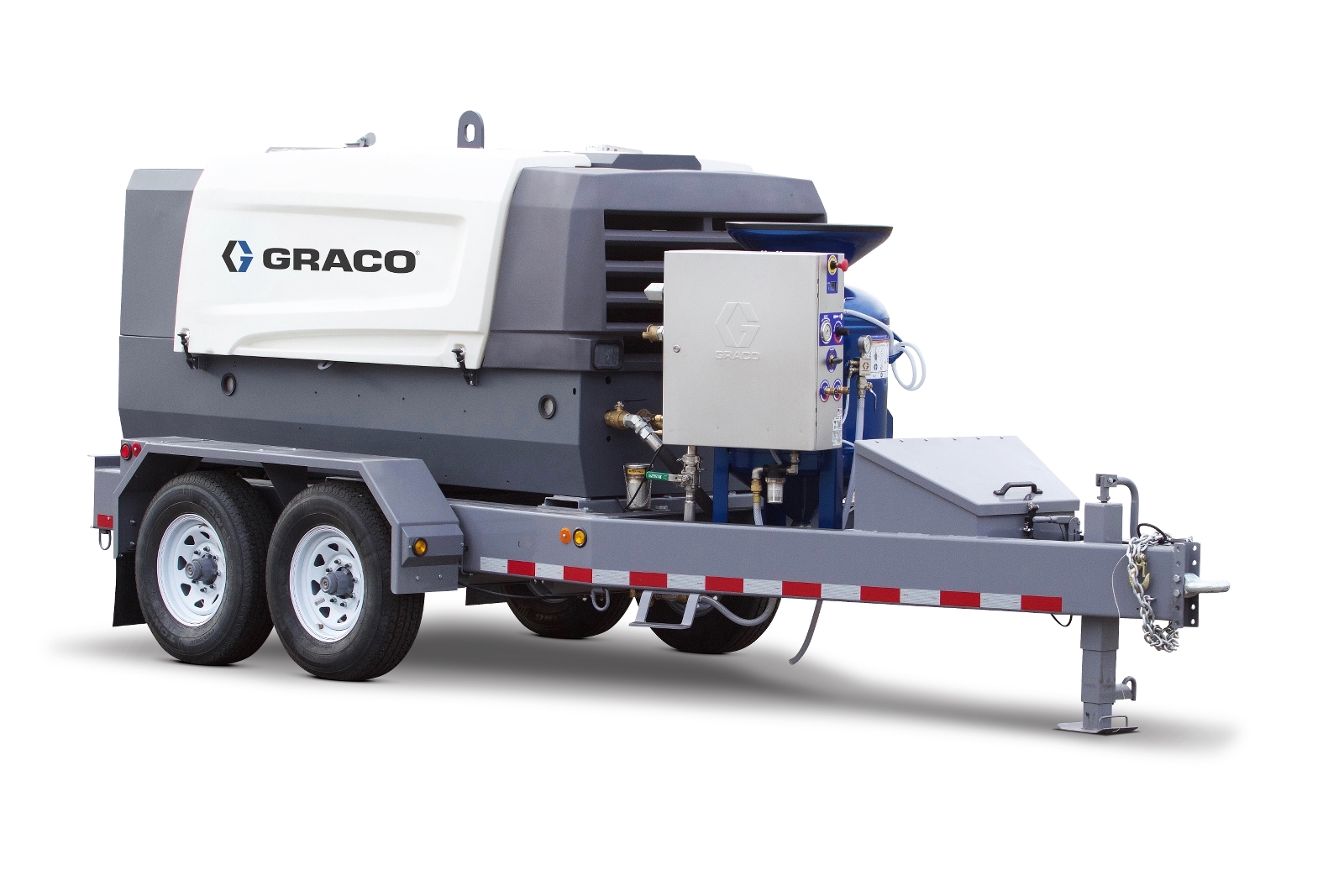

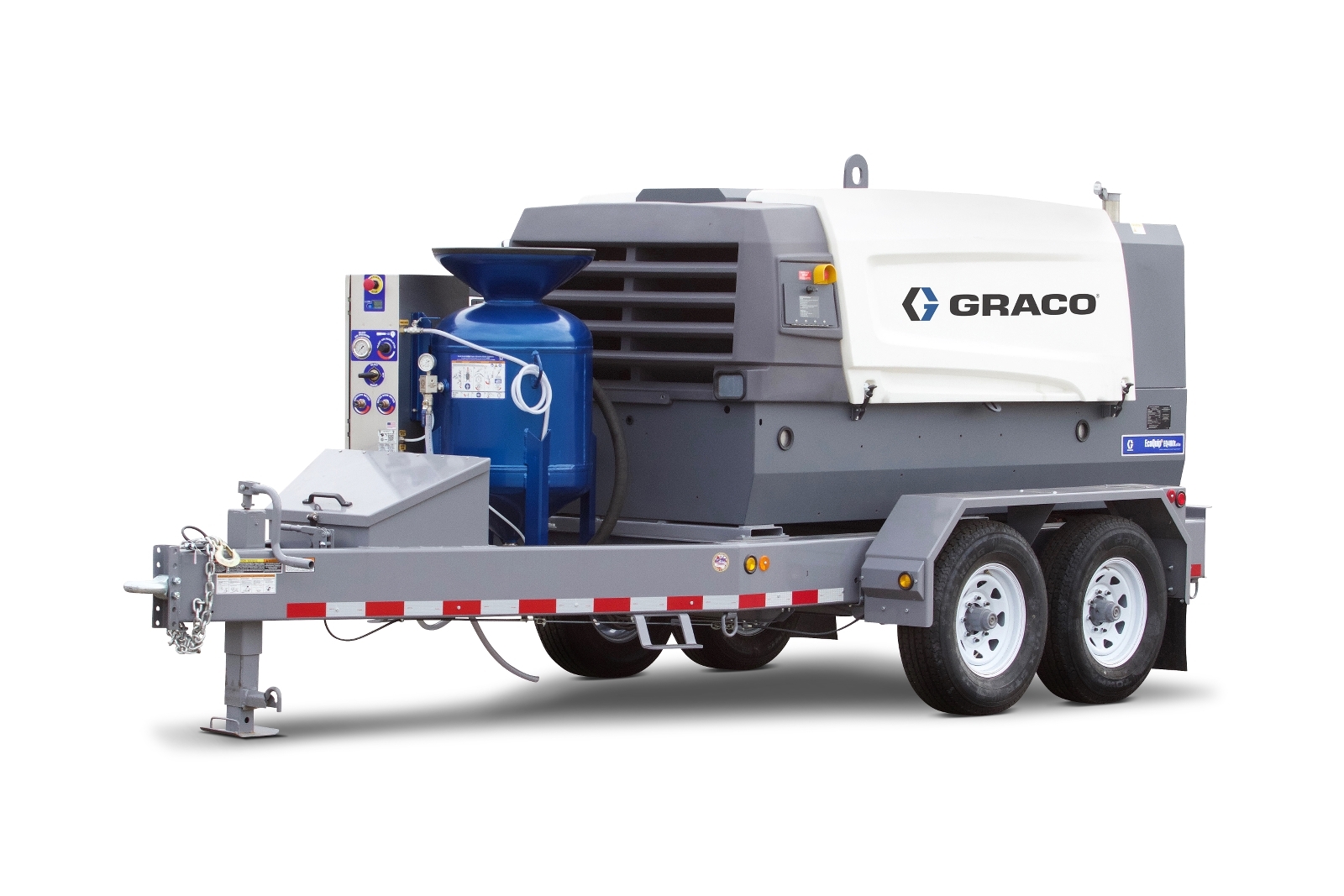

Largest towable abrasive blasting trailer with option of integrated compressor

Features

Product Brochure

Largest towable abrasive blasting trailer with option of integrated compressor

The EcoQuip 2 EQ400t is designed for the toughest high-production projects and comes with two compressor options. Select a trailer with no compressor, or one with a Tier 4f compressor with 400 CFM @ 150 PSI (10.3 bar).

  • Vapor Abrasive Blasting: A cleaner, easier path to profitable results

    • Generates less dust - 92% less airborne dust than dry blasting
    • Uses less water than traditional water-based wet blasting
    • Optimizes air, water and media ratio – resulting in a fine mist with a blast that is powerful, but with less dust
    • Uses less media than wet blasting, so clean up is minimal and you save on media costs
  • Features and Benefits

    • Comes with the option to include the Tier 4f compressor 400 ft³/min @ 150 psi (11.3 m³/min @ 10.3 bar)
    • Redesigned controls for easier operation
    • Abrasive meter and MediaTrak for easy monitoring of media consumption
    • Blast hose, electric or pneumatic blast controls and nozzle sold separately

Specifications & Documents

Technical Specifications

Convert to Metric
Abrasive Capacity (lb) 880
Air Inlet Size (in) 1-1/2
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (in) 1-1/4
Blast Hose Length (ft) 50
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Trailer
Control Type Pneumatic, Electric
Enclosure Material Stainless Steel
Maximum Blast Pressure (psi) 150
Maximum Compressed Air (CFM) 400
Maximum Operating Temperature (°F) 110
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (psi) 150
Minimum Operating Temperature (°F) 35
Model EcoQuip 2
Package Type Bare Package
Pot Capacity (ft³) 6.5
Pot Capacity (gal) 49
Pot Finish/Coating A-Coat/Powder
Series EQ400t Elite
Sound Power Level (dB(A)) 139
Sound Pressure Level (dB(A)) 133
Type Abrasive Blast System
Unit Type High Production Unit
Water Tank Material Aluminum
Water Tank Volume (gal) 130
Wet Weight (lb) 9999
Air Inlet Size (cm) 3.81
Air Inlet Size (in) 1-1/2
Air Inlet Size (mm) 38.1
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (cm) 3
Blast Hose Inside Diameter (in) 1-1/4
Blast Hose Inside Diameter (mm) 31.75
Blast Hose Length (m) 15
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Trailer
Control Type Pneumatic, Electric
Enclosure Material Stainless Steel
Maximum Blast Pressure (psi) 150
Maximum Operating Temperature (°C) 43.3
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (bar) 10.3
Maximum Working Pressure (kPa) 1030
Maximum Working Pressure (kg/cm²) 10.55
Maximum Working Pressure (psi) 150
Minimum Operating Temperature (°C) 1.6
Model EcoQuip 2
Package Type Bare Package
Pot Capacity (L) 184
Pot Finish/Coating A-Coat/Powder
Series EQ400t Elite
Sound Power Level (dB(A)) 139
Sound Pressure Level (dB(A)) 133
Type Abrasive Blast System
Unit Type High Production Unit
Water Tank Material Aluminum

Repair Parts

Part No. Description
106148 Air Filter - 3/8 in NPT with 20 Micron Filter
24V671 LOWER,DISPLACEMENT,SST
