EcoQuip 2 EQ200t Elite
EcoQuip 2 EQ200T System
279990


EcoQuip 2 EQ200t Elite
EcoQuip 2 EQ200T System
279990

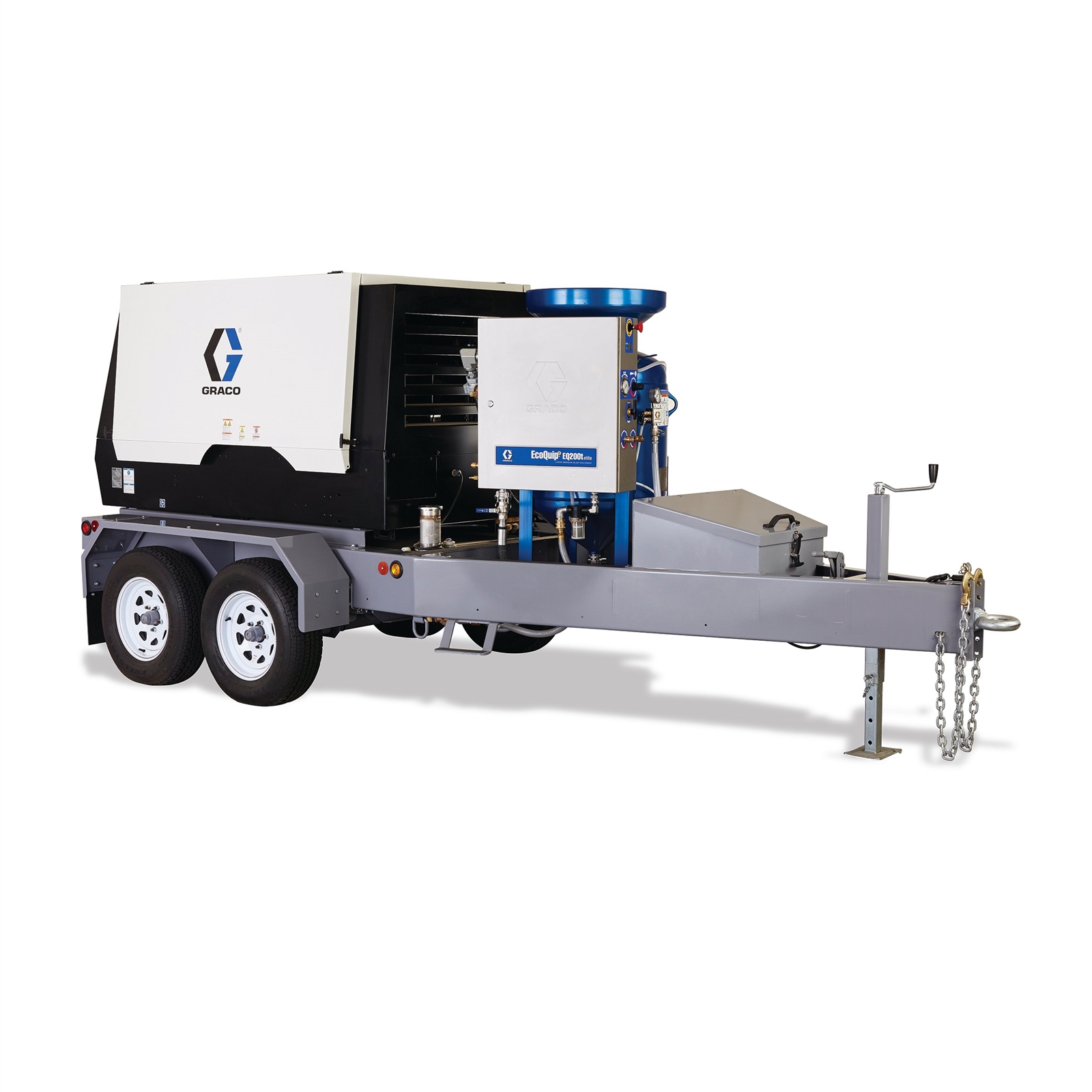

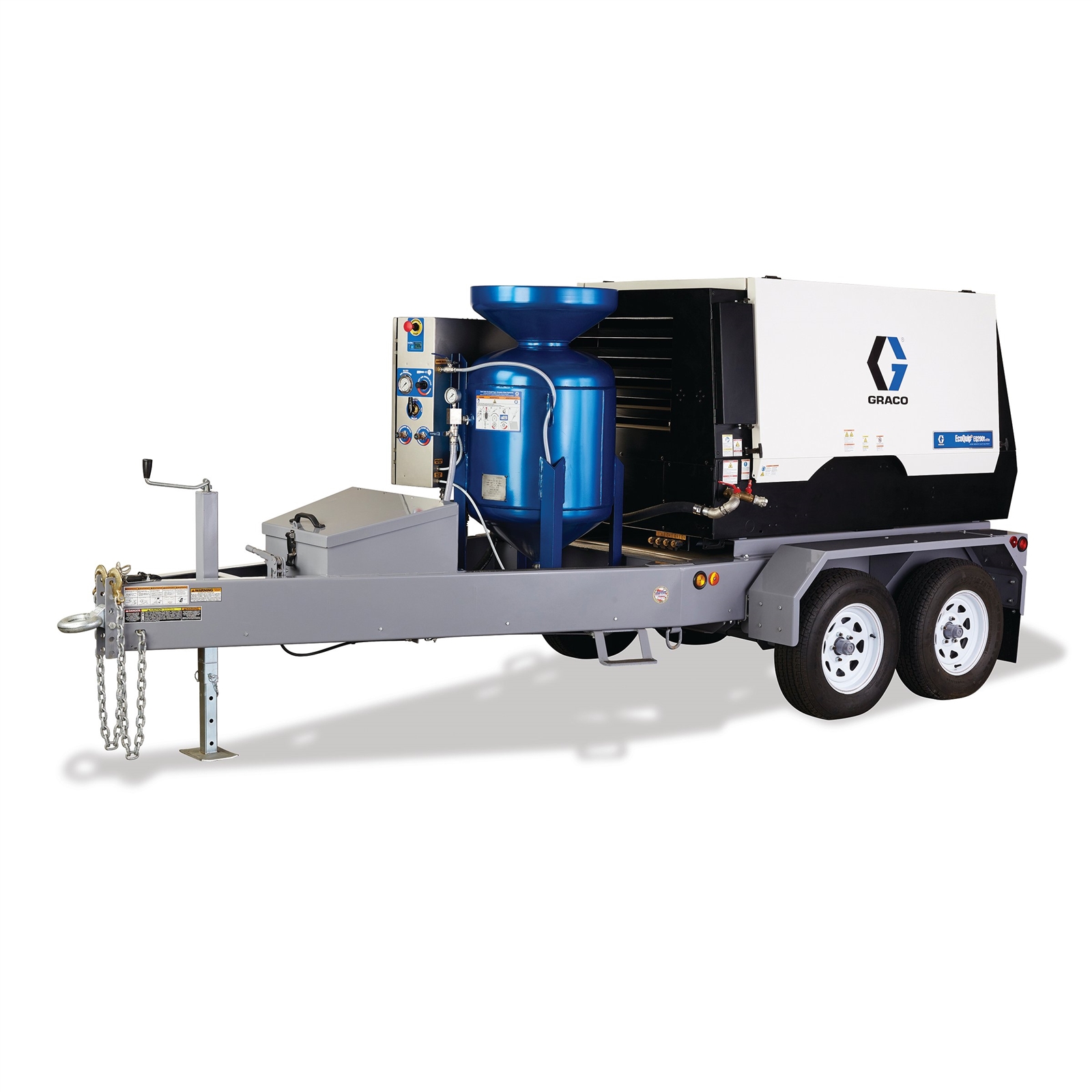

The EQ200t is easy to haul and its compact design is easy to maneuver at the jobsite. Graco’s blasting equipment is rugged and built to withstand the most challenging conditions.
Features
Product BrochureThe EQ200t is easy to haul and its compact design is easy to maneuver at the jobsite. Graco’s blasting equipment is rugged and built to withstand the most challenging conditions.
Designed for mid to high production projects, the EQ200t is a self-contained trailer with 200 CFM @ 125 PSI (8.6 bar) Tier 4f compressor. This trailer can also be ordered without a compressor, giving you the option to mount your existing compressor.
Vapor Abrasive Blasting: A cleaner, easier path to profitable results
- Generates less dust - 92% less airborne dust than dry blasting
- Uses less water than traditional water-based wet blasting
- Optimizes air, water and media ratio – resulting in a fine mist with a blast that is powerful, but with less dust
- Uses less media than wet blasting, so clean up is minimal and you save on media costs
Features and Benefits
- Comes with the option to include the Tier 4f compressor (200 CFM @ 125 PSI)
- Redesigned controls for easier operation
- Abrasive meter and MediaTrak for easy monitoring of media consumption
- Blast hose, electric or pneumatic blast controls and nozzle sold separately
Specifications & Documents
Technical Specifications
Convert to MetricAbrasive Capacity (lb) | 880 |
---|---|
Air Inlet Size (in) | 1-1/2 |
Air Inlet Thread Type | NPT |
Blast Hose Inside Diameter (in) | 1-1/4 |
Blast Hose Length (ft) | 50 |
Compatible Abrasives | Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda |
Configuration | Trailer |
Control Type | Pneumatic, Electric |
Enclosure Material | Stainless Steel |
Maximum Blast Pressure (psi) | 100 |
Maximum Compressed Air (CFM) | 210 |
Maximum Operating Temperature (°F) | 110 |
Maximum Working Pressure (MPa) | 0.7 |
Maximum Working Pressure (psi) | 100 |
Minimum Operating Temperature (°F) | 35 |
Package Type | Bare Package |
Pot Capacity (ft³) | 6.5 |
Pot Capacity (gal) | 49 |
Pot Finish/Coating | A-Coat/Powder |
Sound Power Level (dB(A)) | 139 |
Sound Pressure Level (dB(A)) | 133 |
Type | Abrasive Blast System |
Unit Type | Mid-sized Unit |
Water Tank Material | Aluminum |
Water Tank Volume (gal) | 100 |
Wet Weight (lb) | 6600 |
Air Inlet Size (cm) | 3.81 |
Air Inlet Size (mm) | 38.1 |
Air Inlet Thread Type | NPT |
Blast Hose Inside Diameter (cm) | 3 |
Blast Hose Inside Diameter (mm) | 31.75 |
Blast Hose Length (m) | 15 |
Compatible Abrasives | Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda |
Configuration | Trailer |
Control Type | Pneumatic, Electric |
Enclosure Material | Stainless Steel |
Maximum Compressed Air (CFM) | 210 |
Maximum Operating Temperature (°C) | 43.3 |
Maximum Working Pressure (MPa) | 0.7 |
Maximum Working Pressure (bar) | 6.89 |
Maximum Working Pressure (kPa) | 689 |
Maximum Working Pressure (kg/cm²) | 7.03 |
Minimum Operating Temperature (°C) | 1.6 |
Package Type | Bare Package |
Pot Capacity (L) | 184 |
Pot Finish/Coating | A-Coat/Powder |
Sound Power Level (dB(A)) | 139 |
Sound Pressure Level (dB(A)) | 133 |
Type | Abrasive Blast System |
Unit Type | Mid-sized Unit |
Water Tank Material | Aluminum |
