XP35

XP35 Cart Mounted Plural-Component Spray Package with 3:1 Mix Ratio, IS Fluid Heater, and Solvent Flush Pump

281303

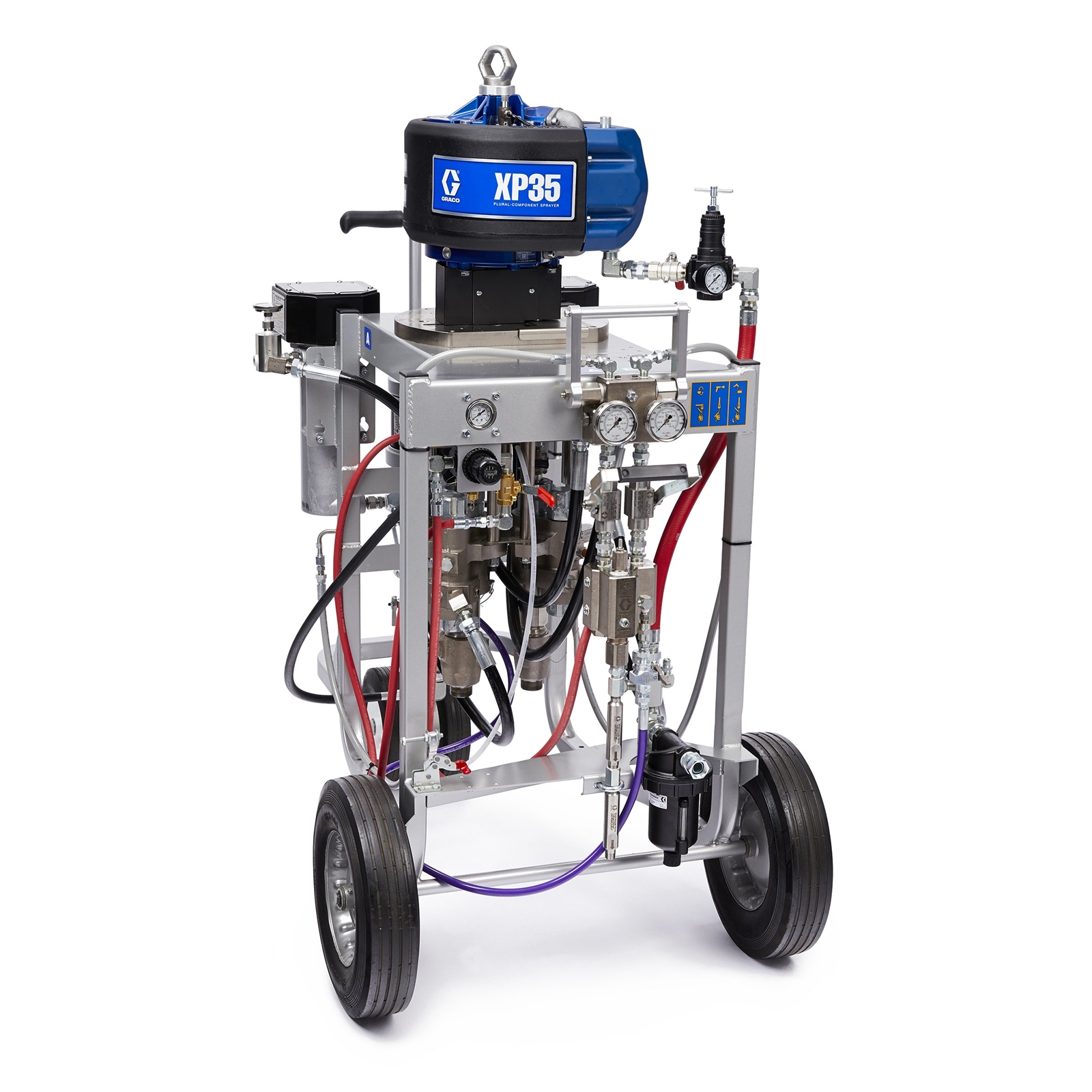

xp35-bf-cnh-hs-front-right xp35-bf-cnh-hs-back-right

XP35

XP35 Cart Mounted Plural-Component Spray Package with 3:1 Mix Ratio, IS Fluid Heater, and Solvent Flush Pump

281303

Two-component spraying made easy and affordable. Graco XP Plural-Component Sprayers are designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing materi...

More Info

Features

Product Brochure

Two-component spraying made easy and affordable. Graco XP Plural-Component Sprayers are designed to pump, mix and atomize high-viscosity, high-solids coatings with superior results. When you upgrade from hand mixing, you'll find that the XP provides excellent return on investment, by reducing material waste and by using less clean-up solvent. Optimized for lower-pressure airless spray applications, the Graco XP35 has similar flow capability as the XP70, but a smaller NXT 3400 air motor. The XP35 is an ideal replacement for Graco Bulldog Hydra-Cat™ systems.

For low pressure protective coatings applications.

  • Reduced material waste
  • No more throwing away unused mixed material at the end of the day
  • Save money by using less clean-up solvent
  • Consistent material quality - no more guesswork or human error in measuring materials
  • Easy to operate - minimal training required
  • Reduced maintenance costs
  • Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 3/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPSM
Applicator Type Manual
Compatible Material Urethane, Two-Component Epoxy
Component Type Plural-Component
Configuration Cart Mount with 7 gal Hopper Option
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Flush Type Solvent
Gun Type Airless Spray Gun
Hose Length (ft) 6
Includes Cart, IS Fluid Heater, Solvent Flush Pump, Material Hoses, XTR-5 Gun, NXT 3400 Air Motor
Material Application Paints, Primers
Maximum Air Consumption (SCFM) 50 scfm/gpm at 100 psi
Maximum Air Inlet Pressure (psi) 175
Maximum Cycle Rate (CPM) 40
Maximum Flow Rate (GPM) 2
Maximum Flow Rate (cc/min) 7570
Maximum Fluid Temperature (°F) 160
Maximum Fluid Viscosity (cP) 20000
Maximum Hose Length (ft) 300
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (psi) 3500
Measuring Type Fixed Mechanical Positive Displacement
Minimum Fluid Viscosity (cP) 200
Mix Accuracy (%) +/- 5
Mix Ratio 3:1
Number of Catalysts 1
Number of Reducers 0
Number of Resin Colors 1
Number of Tanks 0
Overall Depth (in) 52
Overall Height (in) 62
Overall Width (in) 35
Power Source Air, Electric
Product Type Plural Component
Sound Power Level (dB(A)) 98
Sound Pressure Level (dB(A)) 86
Type Proportioner Package
Wetted Material Nickel-Plated Carbon Steel, Zinc-Plated Carbon Steel, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Acetal
Air Inlet Size (cm) 1.905
Air Inlet Size (mm) 19.05
Air Inlet Thread Gender Female
Air Inlet Thread Type NPSM
Applicator Type Manual
Compatible Material Urethane, Two-Component Epoxy
Component Type Plural-Component
Configuration Cart Mount with 7 gal Hopper Option
Fluid Inlet Size (cm) 3.175
Fluid Inlet Size (mm) 31.75
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Flush Type Solvent
Gun Type Airless Spray Gun
Hose Length (m) 1.8288
Includes Cart, IS Fluid Heater, Solvent Flush Pump, Material Hoses, XTR-5 Gun, NXT 3400 Air Motor
Material Application Paints, Primers
Maximum Air Inlet Pressure (bar) 12.07
Maximum Air Inlet Pressure (kPa) 1207
Maximum Cycle Rate (CPM) 40
Maximum Flow Rate (L/min) 7.57
Maximum Flow Rate (cc/min) 7570
Maximum Fluid Temperature (°C) 71
Maximum Fluid Viscosity (cP) 20000
Maximum Hose Length (m) 91.44
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (bar) 241.3
Maximum Working Pressure (kPa) 24130
Measuring Type Fixed Mechanical Positive Displacement
Minimum Fluid Viscosity (cP) 200
Mix Accuracy (%) +/- 5
Mix Ratio 3:1
Number of Catalysts 1
Number of Reducers 0
Number of Resin Colors 1
Number of Tanks 0
Overall Depth (cm) 132.1
Overall Depth (mm) 1321
Overall Height (cm) 157.5
Overall Height (mm) 1575
Overall Width (cm) 88.9
Overall Width (mm) 889
Power Source Air, Electric
Product Type Plural Component
Sound Power Level (dB(A)) 98
Sound Pressure Level (dB(A)) 86
Type Proportioner Package
Wetted Material Nickel-Plated Carbon Steel, Zinc-Plated Carbon Steel, Stainless Steel, Carbide, PTFE, UHMWPE, Nylon, Acetal
