EcoQuip 2 EQs Dual Line

EcoQuip 2 EQc Dual Line System

282500

ecoquip-dual-line-no-tank-frameless-left ecoquip-dual-line-no-tank-frameless-right ecoquip-dual-line-no-tank-frameless-pot-front-left ecoquip-dual-line-no-tank-frameless-pot-front-right

EcoQuip 2 EQs Dual Line

EcoQuip 2 EQc Dual Line System

282500

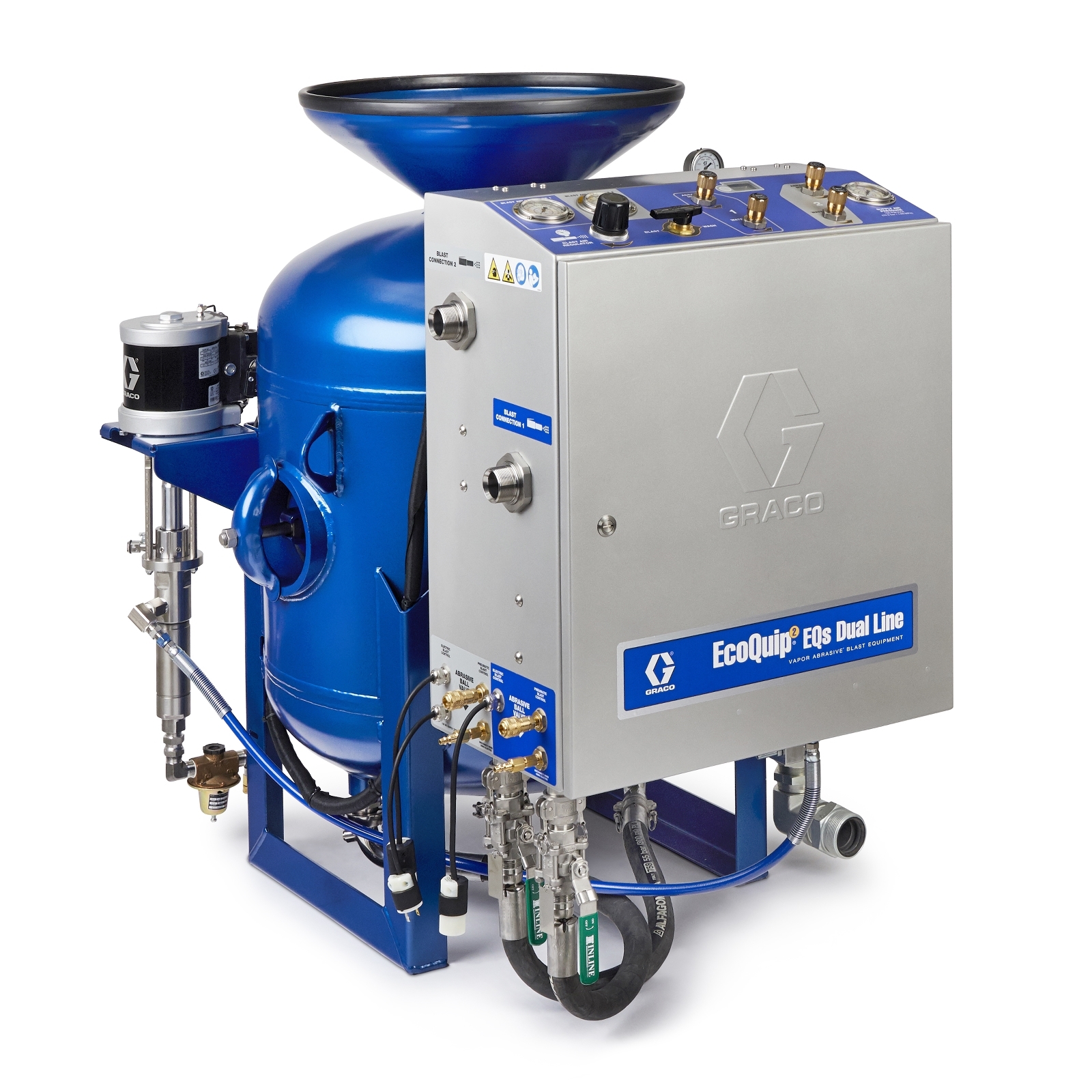

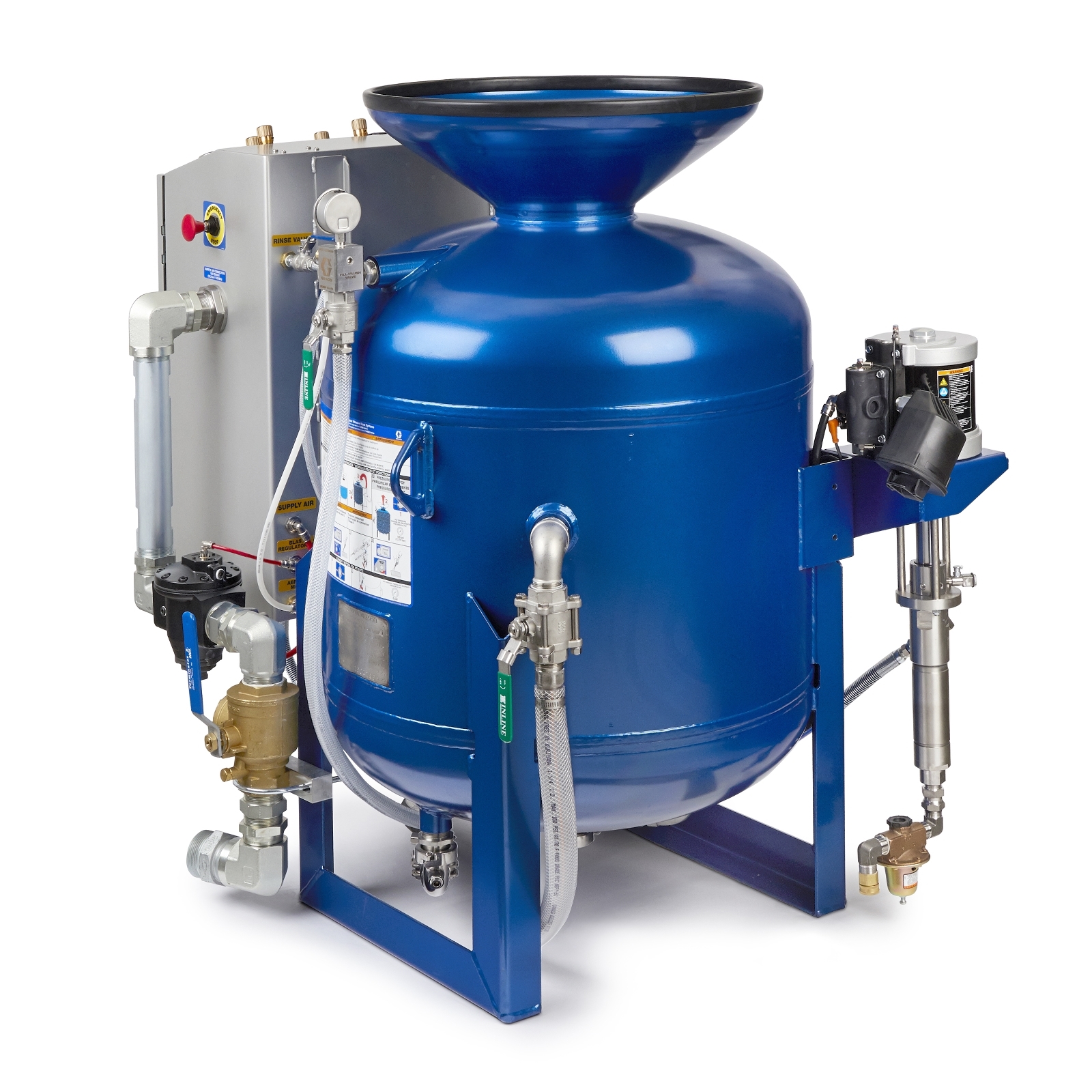

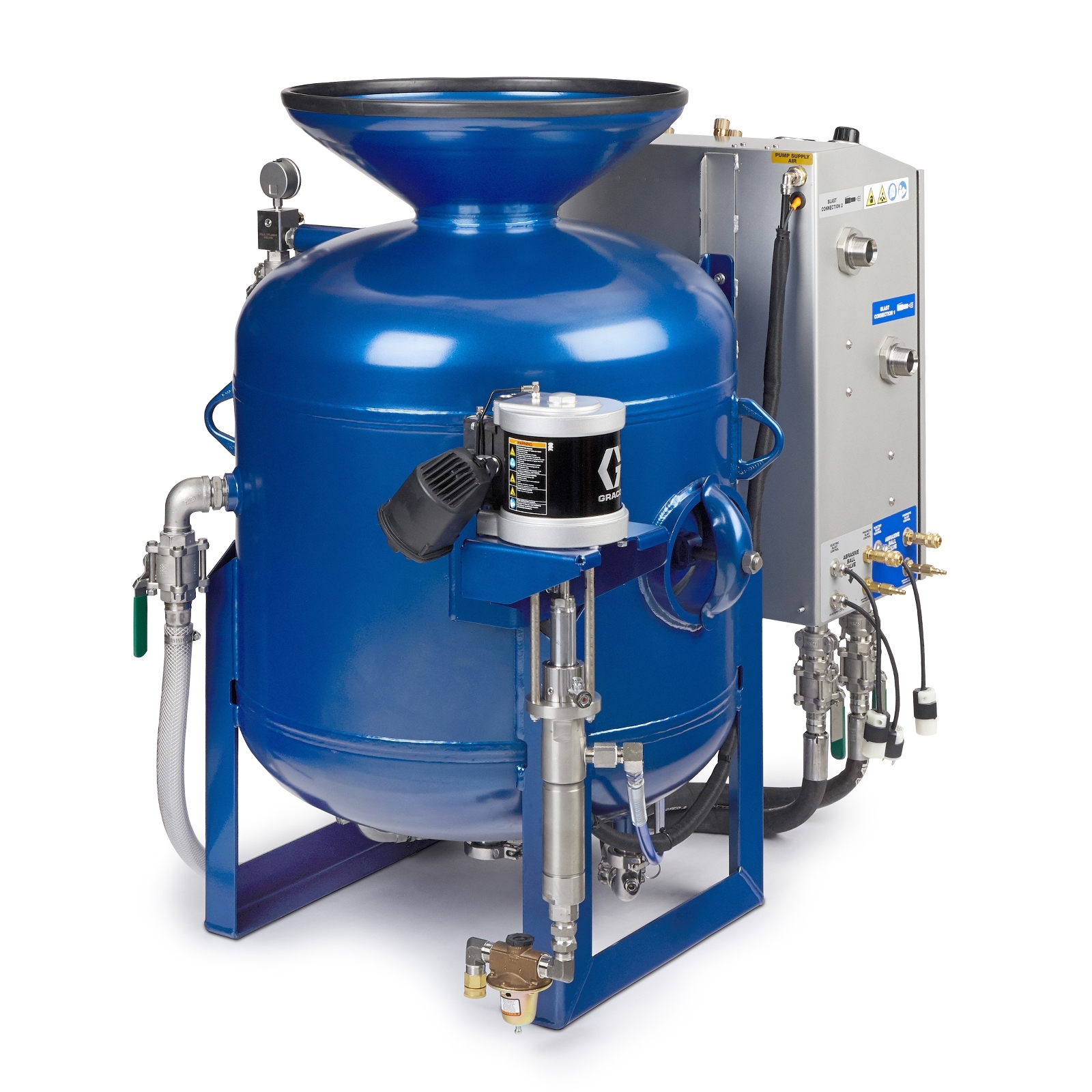

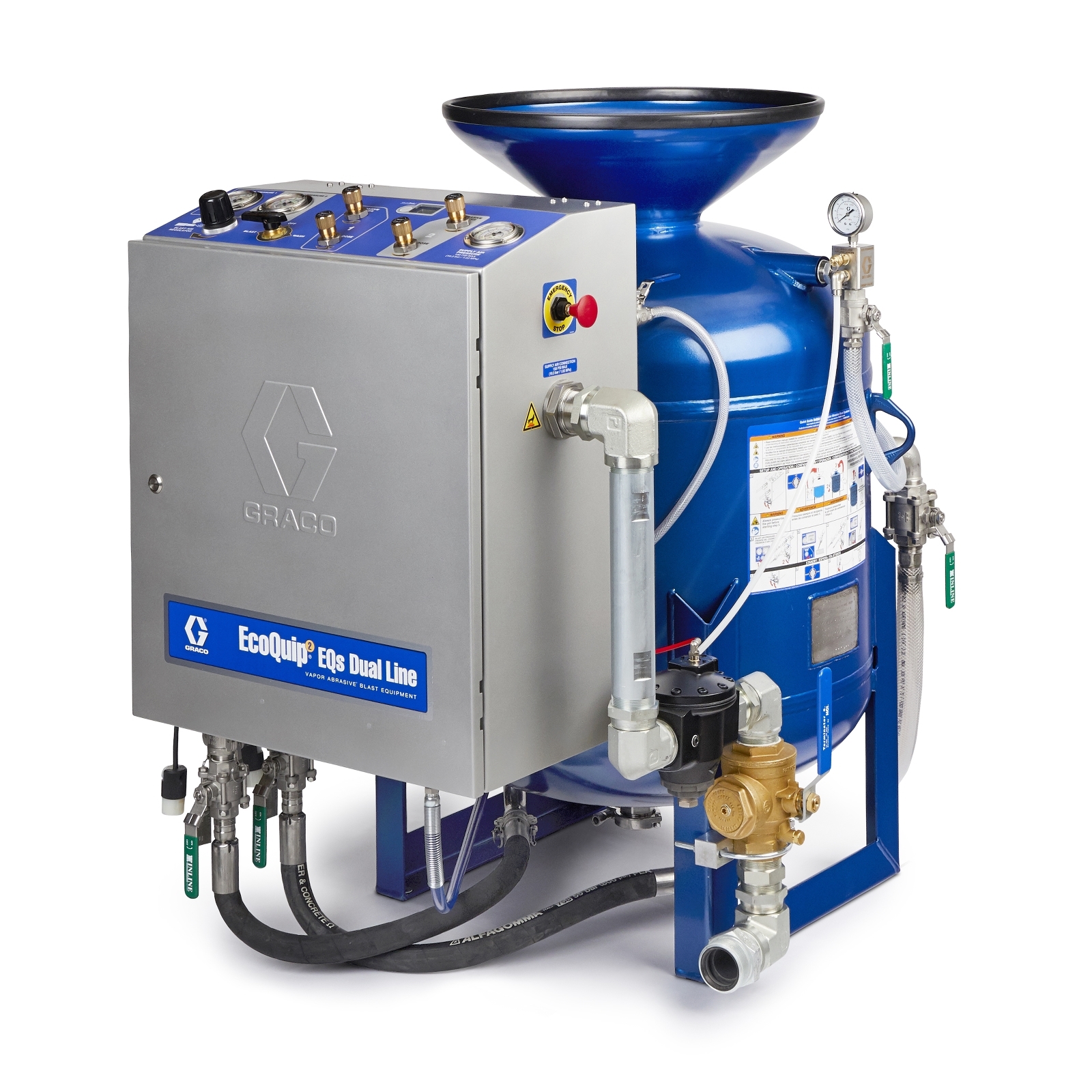

Graco’s EcoQuip EQs Dual Line system is easy to add to your existing setup and comes with just the blast pot and a single control box. Featuring two outlets and a 12 cu ft (340 L) pressure pot capable of blasting up to four hours with two blasters at once, this unit is perfect for high production jo... More Info

Features

Product Brochure
Graco’s EcoQuip EQs Dual Line system is easy to add to your existing setup and comes with just the blast pot and a single control box. Featuring two outlets and a 12 cu ft (340 L) pressure pot capable of blasting up to four hours with two blasters at once, this unit is perfect for high production jobs with an existing water source.

Specifications

Technical Specifications

Convert to Metric
Abrasive Capacity (lb) 1400
Air Inlet Size (in) 2
Air Inlet Thread Type NPT
Blast Hose Coupler 1 Material Brass
Blast Hose Coupler 1 Type Nozzle Holder
Blast Hose Inside Diameter (in) 1-1/4
Blast Hose Length (ft) 50
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Control Type Pneumatic, Electric
Dry Weight (lb) 1400
Enclosure Material Coated
Frame Material Coated
Frame Type Skid/Crash Frame
Maximum Operating Temperature (°F) 110
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (psi) 150
Minimum Operating Temperature (°F) 35
Nozzle Type #8 High Performance
Pot Capacity (ft³) 12
Pot Capacity (gal) 90
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 750-1600
Type Abrasive Blast System
Unit Type High Production Unit
Water Tank Material Polyethylene
Water Tank Type No Water Tank
Water Tank Volume (gal) 115
Wet Weight (lb) 4200
Air Inlet Size (cm) 5.08
Air Inlet Size (mm) 50.8
Air Inlet Thread Type NPT
Blast Hose Coupler 1 Material Brass
Blast Hose Coupler 1 Type Nozzle Holder
Blast Hose Inside Diameter (mm) 31.75
Blast Hose Length (m) 15
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Control Type Pneumatic, Electric
Enclosure Material Coated
Frame Material Coated
Frame Type Skid/Crash Frame
Maximum Operating Temperature (°C) 43.3
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (bar) 10.3
Maximum Working Pressure (kPa) 1030
Maximum Working Pressure (kg/cm²) 10.55
Minimum Operating Temperature (°C) 1.6
Nozzle Type #8 High Performance
Pot Capacity (L) 340
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 750-1600
Type Abrasive Blast System
Unit Type High Production Unit
Water Tank Material Polyethylene
Water Tank Type No Water Tank
