XP50-h Proportioner System with Viscount II Hydraulic Motor, 2.5:1 Mix Ratio, Hopper, XTR Gun
284254
XP-h
XP50-h Proportioner System with Viscount II Hydraulic Motor, 2.5:1 Mix Ratio, Hopper, XTR Gun
284254
Two-component spraying made easy and affordable. XP-h Hydraulic Sprayer - Built with patented XP ratio technology, the Graco XP-h Hydraulic Plural-Component Sprayer is ideal for truck, palletized, trailer or flatbed systems that have on-board hydraulic power*. It is well-suited for OEM traffic marki...
More InfoFeatures
Product Brochure

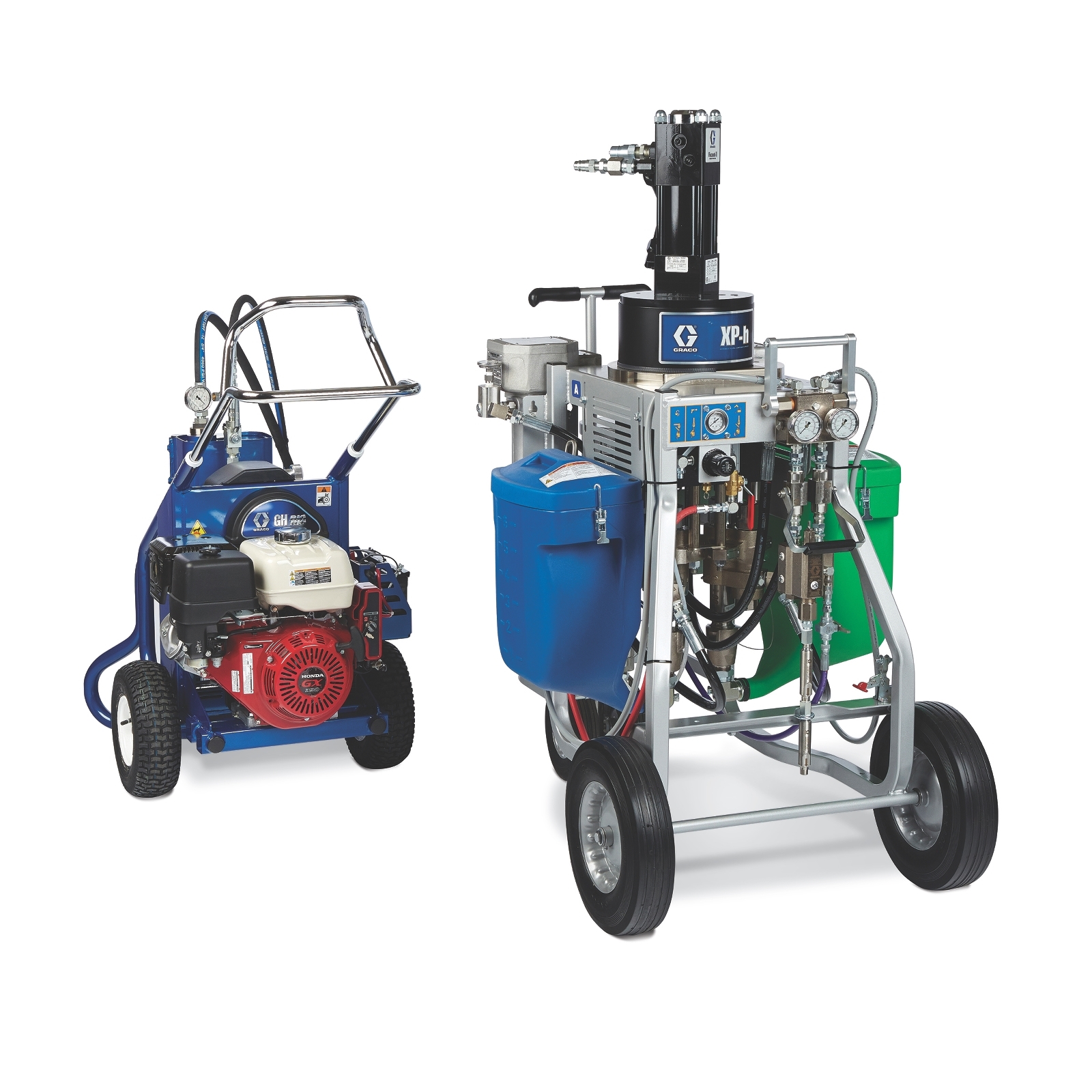

Two-component spraying made easy and affordable. XP-h Hydraulic Sprayer - Built with patented XP ratio technology, the Graco XP-h Hydraulic Plural-Component Sprayer is ideal for truck, palletized, trailer or flatbed systems that have on-board hydraulic power*. It is well-suited for OEM traffic marking applications. The system’s hydraulic motor has been optimized and rated to match the pressure capabilities of the NXT 6500 air motor used on Graco XP50 and XP70 sprayers. GH Power Pack Accessory - The XP is now more versatile than ever for contractors wishing to take advantage of the convenience and efficiency of a gas-powered hydraulic system. Hydraulic systems are energy efficient and provide very smooth changeovers on the XP resulting in well balanced pressures and the smoothest possible spray pattern.
For hydraulic power, performance and cost-saving efficiencies. Use in situations where a customer wants to tow only one trailer and eliminate the need for a large tow-behind compressor. Use for applications where a contractor already has small utility generators for the XP fluid heaters and small compressors capable of operating a solvent pump or transfer pumps with the XP. (Hydraulic solvent pumps are available separately from Graco, but would require a distributor to install onto the XP)
- Rated for 5000 psi (345 bar)
- Mix Ratio for protective coatings materials: 2.5:1
- Available as a stand or wall-mount system
- Fits onto the standard XP portable cart
