D-Gun Standard

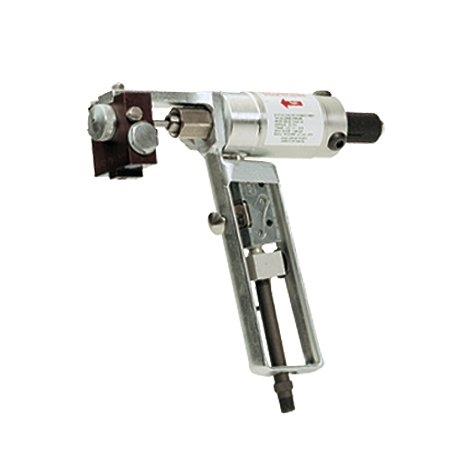

D-Gun D-55 Standard Spray Gun

295530

d-gun-left

D-Gun Standard

D-Gun D-55 Standard Spray Gun

295530

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application. Lightweight, easy to operate and maintain. Mechanically self-cleaning so you eliminate costly solvent-flushing.

Features

Product Brochure

A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application. Lightweight, easy to operate and maintain. Mechanically self-cleaning so you eliminate costly solvent-flushing.

The Graco D-Gun is ideal for small to midrange output foam applications such as interior stud-wall spraying.

  • Air cap allows for easy cleaning of the purge rod
  • Lightweight design reduces operator fatigue
  • Pattern control knob allows for fine tune adjustments

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/8
Air Inlet Thread Type NPT
Compatible Material Spray Polyurethane Foam
Component A Inlet Size (in) 1/2-20
Component A Inlet Thread Type UNF
Component B Inlet Size (in) 9/16
Component B Inlet Thread Type UNF
Gun Activation Manual
Gun Type Mechanical-Purge
Gun Weight (lb) 3.1
Maximum Air Inlet Pressure (MPa) 0.76
Maximum Air Inlet Pressure (psi) 110
Maximum Air Pressure (psi) 100
Maximum Flow Rate (lb/min) 16
Maximum Fluid Working Pressure (MPa) 6.9
Maximum Fluid Working Pressure (psi) 1000
Minimum Air Inlet Pressure (MPa) 0.6
Minimum Air Inlet Pressure (psi) 90
Minimum Flow Rate (lb/min) 2
Model D-Gun
Overall Height (in) 9
Overall Length (in) 8
Overall Width (in) 2.25
Pattern Size (in) 8 in @ 18-20 in from target
Pressure Type Low Pressure
Purge Method Mechanical
Series Standard
Type Spray Gun
Wetted Parts Stainless Steel, Carbon Steel, Brass, Nylon, Acetal, PTFE
Air Inlet Thread Type NPT
Compatible Material Spray Polyurethane Foam
Component A Inlet Thread Type UNF
Component B Inlet Thread Type UNF
Gun Activation Manual
Gun Type Mechanical-Purge
Gun Weight (kg) 1.4
Maximum Air Inlet Pressure (MPa) 0.76
Maximum Air Inlet Pressure (bar) 7.6
Maximum Air Inlet Pressure (kPa) 76
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 70
Maximum Flow Rate (kg/min) 7.2
Maximum Fluid Working Pressure (MPa) 6.9
Maximum Fluid Working Pressure (bar) 69
Minimum Air Inlet Pressure (MPa) 0.6
Minimum Air Inlet Pressure (bar) 6
Minimum Air Inlet Pressure (kPa) 60
Minimum Flow Rate (kg/min) 0.9
Model D-Gun
Overall Height (cm) 22.9
Overall Height (mm) 228.6000
Overall Length (cm) 20.3
Overall Length (mm) 203.2
Overall Width (cm) 5.7
Overall Width (mm) 57.1500
Pattern Size (mm) 203.2
Pressure Type Low Pressure
Purge Method Mechanical
Series Standard
Type Spray Gun
Wetted Parts Stainless Steel, Carbon Steel, Brass, Nylon, Acetal, PTFE
