XP70-hf

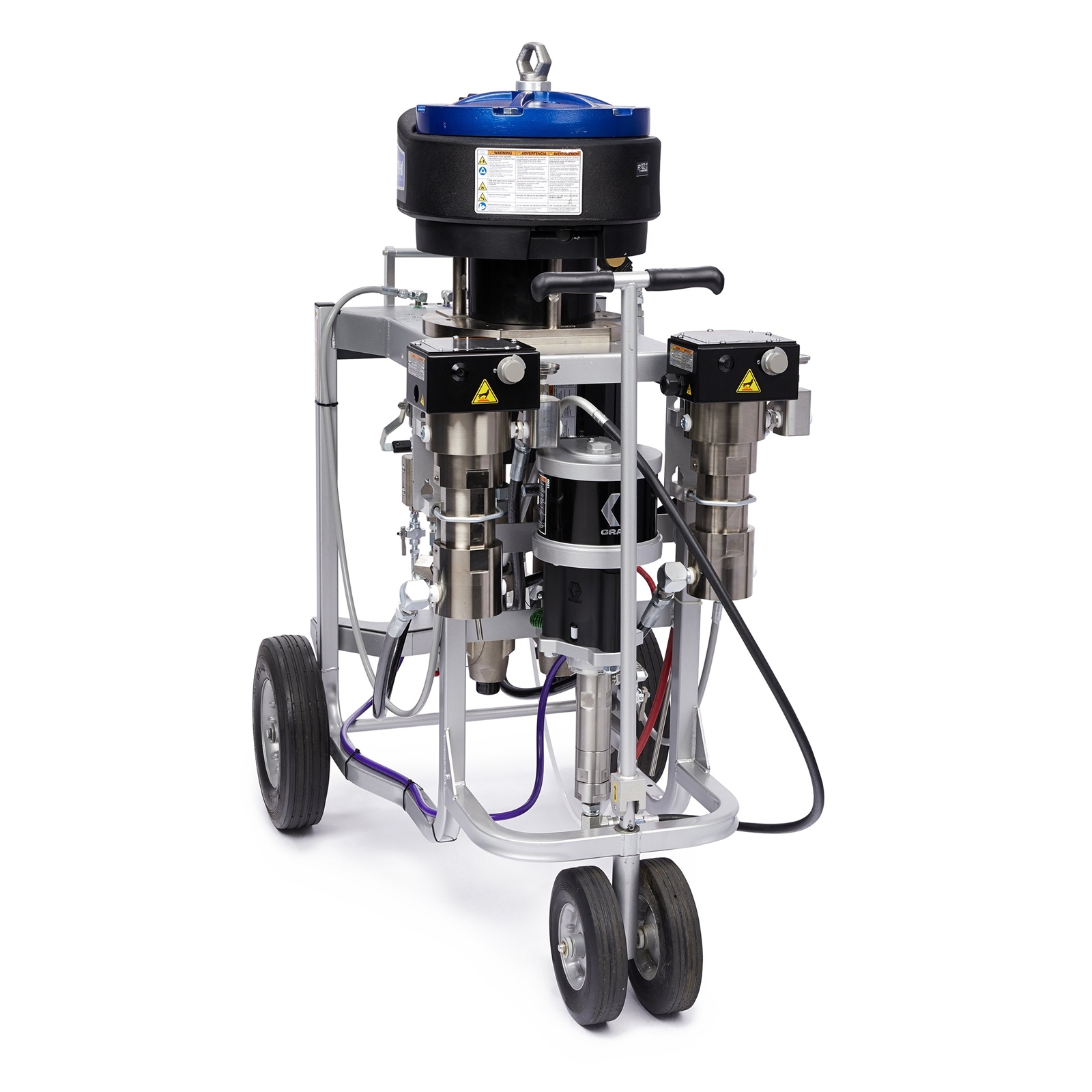

XP70-hf Plural-Component Cart Mounted Spray Package with 3:1 Mix Ratio, Solvent Pump & Viscon HF Hazardous Location Heaters
572303


XP70-hf
XP70-hf Plural-Component Cart Mounted Spray Package with 3:1 Mix Ratio, Solvent Pump & Viscon HF Hazardous Location Heaters
572303
Two-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf ...
More InfoFeatures
Product BrochureTwo-component spraying made easy and affordable. The XP-hf system combines the popular XP70 Sprayers with the powerful XL 10000 air motor. Combining these two technologies, you get more flow - getting jobs done faster and with less wear and tear. Engineered for more flow capacity, the Graco XP70-hf is great for applications where you want to spray with multiple guns or larger tip sizes. Flexible options for mix ratio, pressure and flow rate – choose the right system for the application. If you occasionally change materials, the Graco XP Sprayers are the right choice. That’s because you can change the ratio by simply changing out one or two pump lowers. Available in 1:1, 1.5:1, 2:1, 2.5:1, 3:1 and 4:1 mix ratios.
High-pressure performance for two-part high-solids coatings.
- Reduced material waste
- No more throwing away unused mixed material at the end of the day
- Save money by using less clean-up solvent
- Consistent material quality - no more guesswork or human error in measuring materials
- Easy to operate - minimal training required
- Reduced maintenance costs
- Rated for 7250 psi (500 bar, 50 MPa) to handle viscous materials and long hose lengths
Specifications
Technical Specifications
Convert to MetricAir Inlet Size (in) | 1 |
---|---|
Air Inlet Thread Gender | Male |
Air Inlet Thread Type | NPSM |
Applicator Type | Manual |
Compatible Material | High Solids Coatings, 100% Solids Coatings |
Component Type | Plural-Component |
Configuration | Cart Mount with 7 gal Hopper Option |
Fluid Inlet Size (in) | 1-1/4 |
Fluid Inlet Thread Gender | Male |
Fluid Inlet Thread Type | NPSM |
Fluid Outlet Size (in) | 1/2 |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Flush Type | Solvent |
Gun Type | Airless Spray Gun |
Hose Length (ft) | 10, 25 |
Includes | Air Motor, Pump Lowers, Cart, Spray Gun, Supply Hose, Solvent Pump, Hazardous Location A/B Heaters |
Material Application | Paints, Primers |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Air Pressure (MPa) | 0.69 |
Maximum Air Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 40 |
Maximum Flow Rate (GPM) | 3 |
Maximum Flow Rate (cc/min) | 11360 |
Maximum Fluid Viscosity (cP) | 20000 |
Maximum Hose Length (ft) | 300 |
Maximum Mix Ratio | 3:1 |
Maximum Spray Pressure (MPa) | 49 |
Maximum Spray Pressure (psi) | 7100 |
Maximum Working Pressure (MPa) | 49 |
Maximum Working Pressure (psi) | 7100 |
Measuring Type | Fixed Mechanical Positive Displacement |
Minimum Fluid Viscosity (cP) | 200 |
Minimum Mix Ratio | 3:1 |
Mix Accuracy (%) | +/- 5 |
Mix Ratio | 3:1 |
Number of Catalysts | 1 |
Number of Reducers | 0 |
Number of Resin Colors | 1 |
Number of Tanks | 0 |
Overall Depth (in) | 52 |
Overall Height (in) | 62 |
Overall Width (in) | 35 |
Power Source | Air |
Product Type | Plural Component |
Sound Power Level (dB(A)) | 96 |
Sound Pressure Level (dB(A)) | 86.8 |
Type | Plural Component Sprayer |
Weight (lb) | 640 |
Wetted Material | Carbon Steel, Electroless Nickel Plating, Stainless Steel, Carbide, Acetal, PTFE, Carbon-Filled PTFE, Aluminum, Nylon |
Air Inlet Size (cm) | 2.54 |
Air Inlet Size (mm) | 25.4 |
Air Inlet Thread Gender | Male |
Air Inlet Thread Type | NPSM |
Applicator Type | Manual |
Compatible Material | High Solids Coatings, 100% Solids Coatings |
Component Type | Plural-Component |
Configuration | Cart Mount with 7 gal Hopper Option |
Fluid Inlet Size (cm) | 3.175 |
Fluid Inlet Size (mm) | 31.75 |
Fluid Inlet Thread Gender | Male |
Fluid Inlet Thread Type | NPSM |
Fluid Outlet Thread Gender | Female |
Fluid Outlet Thread Type | NPT |
Flush Type | Solvent |
Gun Type | Airless Spray Gun |
Hose Length (m) | 3.048, 7.62 |
Includes | Air Motor, Pump Lowers, Cart, Spray Gun, Supply Hose, Solvent Pump, Hazardous Location A/B Heaters |
Material Application | Paints, Primers |
Maximum Air Inlet Pressure (bar) | 6.9 |
Maximum Air Inlet Pressure (kPa) | 690 |
Maximum Air Pressure (MPa) | 0.69 |
Maximum Air Pressure (bar) | 6.9 |
Maximum Air Pressure (kPa) | 690 |
Maximum Cycle Rate (CPM) | 40 |
Maximum Flow Rate (L/min) | 11.36 |
Maximum Flow Rate (cc/min) | 11360 |
Maximum Fluid Viscosity (cP) | 20000 |
Maximum Hose Length (m) | 91.44 |
Maximum Mix Ratio | 3:1 |
Maximum Spray Pressure (MPa) | 49 |
Maximum Spray Pressure (bar) | 489.5 |
Maximum Spray Pressure (kPa) | 48950 |
Maximum Working Pressure (MPa) | 49 |
Maximum Working Pressure (bar) | 490 |
Maximum Working Pressure (kPa) | 49000 |
Measuring Type | Fixed Mechanical Positive Displacement |
Minimum Fluid Viscosity (cP) | 200 |
Minimum Mix Ratio | 3:1 |
Mix Accuracy (%) | +/- 5 |
Mix Ratio | 3:1 |
Number of Catalysts | 1 |
Number of Reducers | 0 |
Number of Resin Colors | 1 |
Number of Tanks | 0 |
Overall Depth (cm) | 132.1 |
Overall Depth (mm) | 1321 |
Overall Height (cm) | 157.5 |
Overall Height (mm) | 1575 |
Overall Width (cm) | 88.9 |
Overall Width (mm) | 889 |
Power Source | Air |
Product Type | Plural Component |
Sound Power Level (dB(A)) | 96 |
Sound Pressure Level (dB(A)) | 86.8 |
Type | Plural Component Sprayer |
Weight (kg) | 290 |
Wetted Material | Carbon Steel, Electroless Nickel Plating, Stainless Steel, Carbide, Acetal, PTFE, Carbon-Filled PTFE, Aluminum, Nylon |
