Merkur
24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Cart Mount, G40 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter
G24C09
Merkur
24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Cart Mount, G40 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter
G24C09

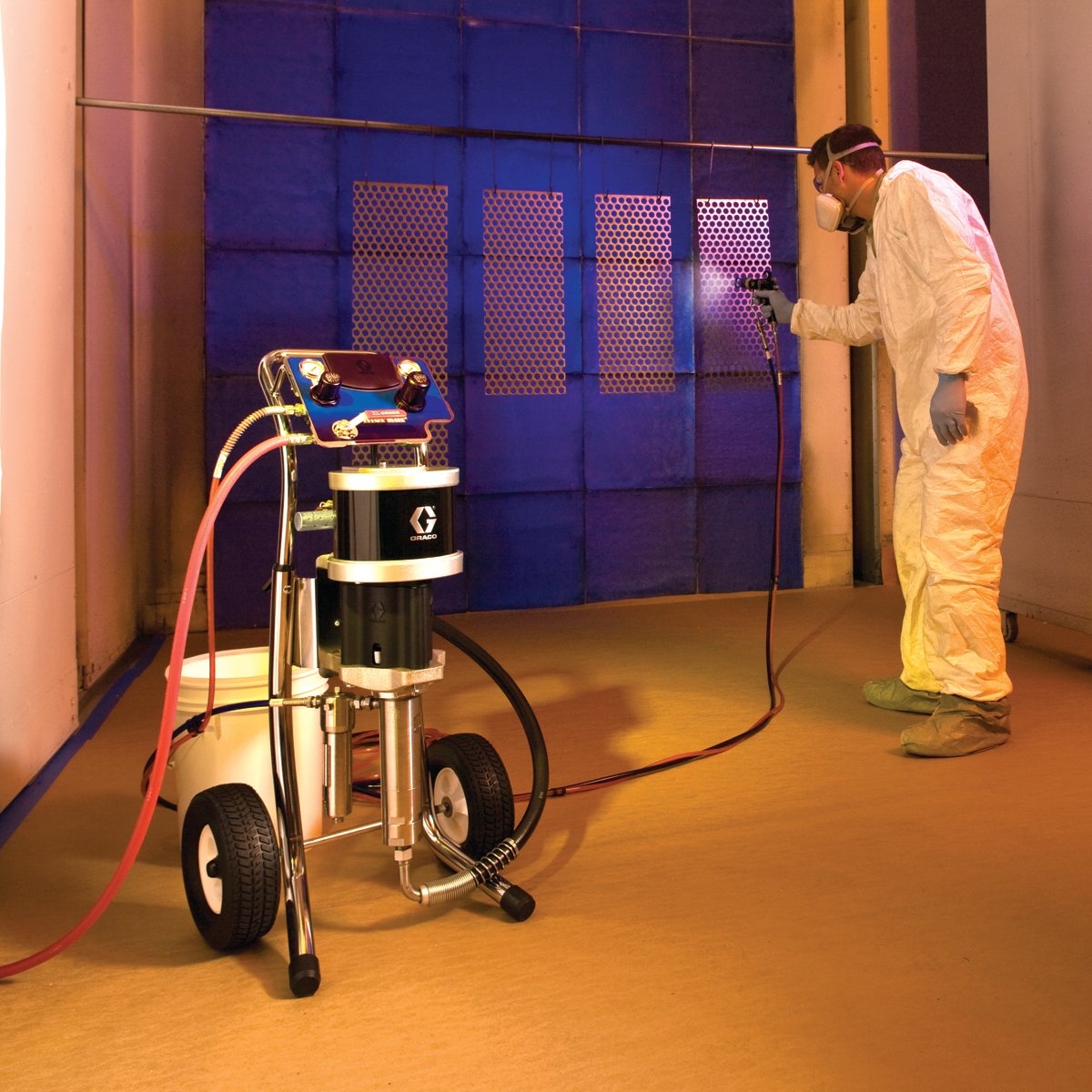

Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- External valve access allows for easy servicing and online replacement to minimize downtime
- Operator Control Panel located at operator height for easy setting and monitoring
- Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
Specifications
Technical Specifications
Convert to Metric| Convertible | Non-Convertible |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.1875 |
| Includes | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter |
| Maximum Flow Rate (GPM) | 2.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Working Pressure (MPa) | 16.5 |
| Maximum Working Pressure (psi) | 2400 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Cart Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 24:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | Air-Assisted |
| Technology Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 116 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer |
| Convertible | Non-Convertible |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (cm) | 0.4763 |
| Hose Inlet Diameter (mm) | 5 |
| Includes | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter |
| Maximum Hose Length (m) | 7.6 |
| Maximum Working Pressure (MPa) | 16.5 |
| Maximum Working Pressure (bar) | 165 |
| Maximum Working Pressure (kPa) | 16500 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Cart Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 24:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | Air-Assisted |
| Technology Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 52.6 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer |
Product Manuals
CAD Drawings
G45C01-3D-EN.zip
(16 MB)
Repair Parts
| Part No. | Description |
|---|---|
| W24FAS | Merkur Wet Cup Pump Assembly, 24:1, 150 cc Lower, 3 UHMWPE/2 PTFE Packings with Chromex, No Data Monitoring, Low Noise, SST |
| M18LN0 | Air Motor, 1800 cc displacement, 7.5 in piston diameter, 2.5 in stroke, Low Noise, compatible with DataTrak with Cycle Count |
| LW150A | Merkur Wet-Cup Style Stainless Steel Displacement Pump, 150 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings |
| 24A577 | Stand Mount Kit for Merkur Packages G15xxx and G30xxx |
| 24A954 | 55 gal (208 l) Drum Suction Hose and Strainer, 3/4 in fluid inlet |
| 24B424 | PTFE Lined Suction Hose for 5 gal (19 l) Pails and Strainer, 3/4 in inlet |
| 24E883 | Air Control Mounting Kit for Merkur and Merkur Bellows, Wall and Stand |
| 24A955 | 50 ft (15.2 m) Bundled Air and Fluid Hose, 3300 psig (228 bar) |
| 289694 | Cart Mount Kit |
| 24B337 | PTFE Lined Suction Hose for Cart Mount Pump, 3/4 in inlet |
| 24B425 | PTFE Lined Suction Hose for 5 gal (19 l) Pails and Strainer, 1 in inlet |
| 24J315 | PTFE Lined Suction Hose for Wall Mount Pumps, 1/2 in inlet |
| 256410 | Hopper Kit, 1.5 gal (5 l) polyethylene |
| 24A578 | Wall Mount Kit for Merkur Packages |
| 24B338 | PTFE Lined Suction Hose for Cart Mount Pump, 1 in inlet |
| 24B598 | 55 gal (208 l) Drum Suction Hose and Strainer, 1 in fluid inlet |
| 256425 | Drain Valve Kit, includes drain valve, coupling and hose |
