Merkur

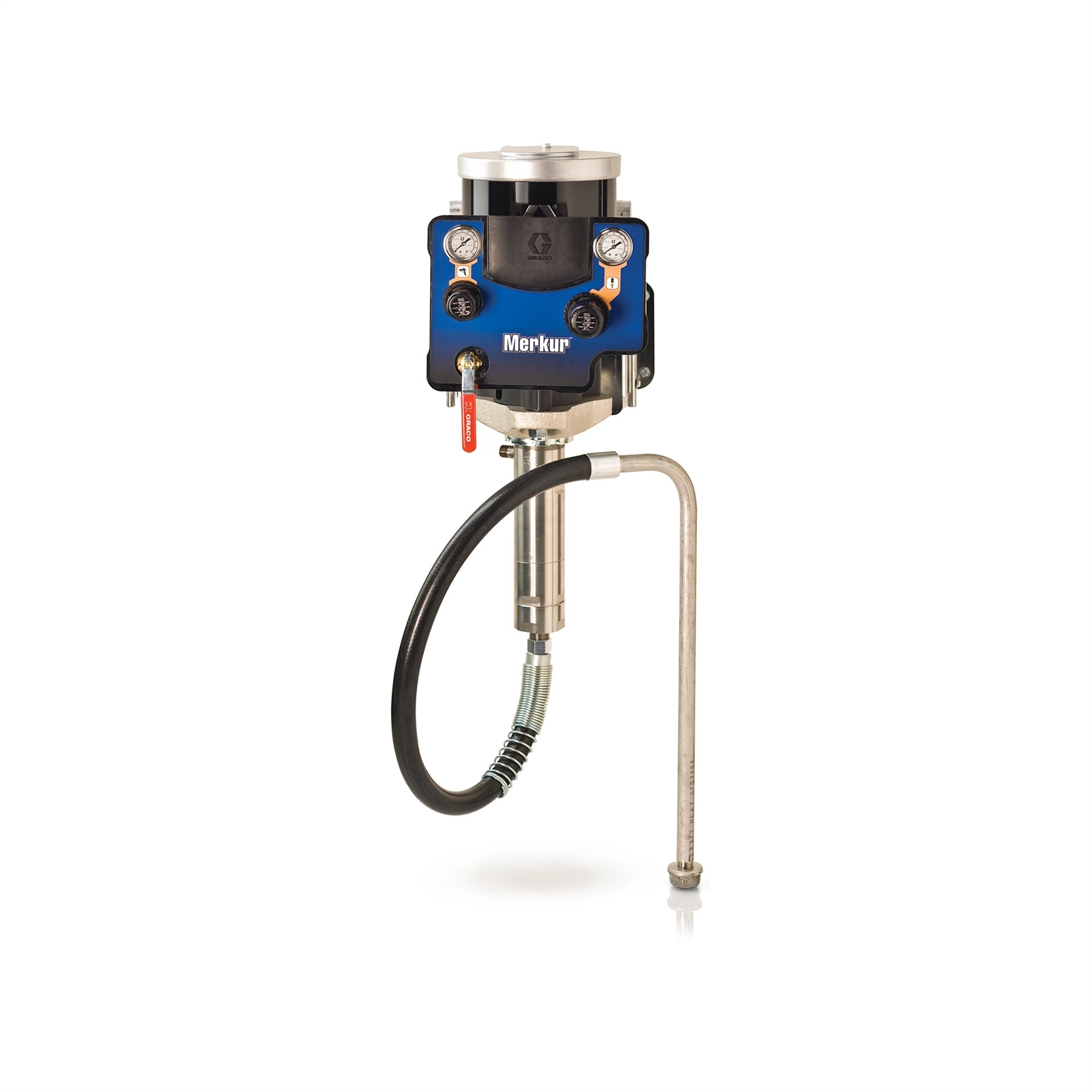

24:1 Merkur Airless Package, 2.4 gpm (9 lpm) fluid flow, Wall Mount, XTR-5 Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter, DataTrak
G24W06
Merkur
24:1 Merkur Airless Package, 2.4 gpm (9 lpm) fluid flow, Wall Mount, XTR-5 Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter, DataTrak
G24W06
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- External valve access allows for easy servicing and online replacement to minimize downtime
- Operator Control Panel located at operator height for easy setting and monitoring
- Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
Specifications
Technical Specifications
Convert to Metric| Convertible | Non-Convertible |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |

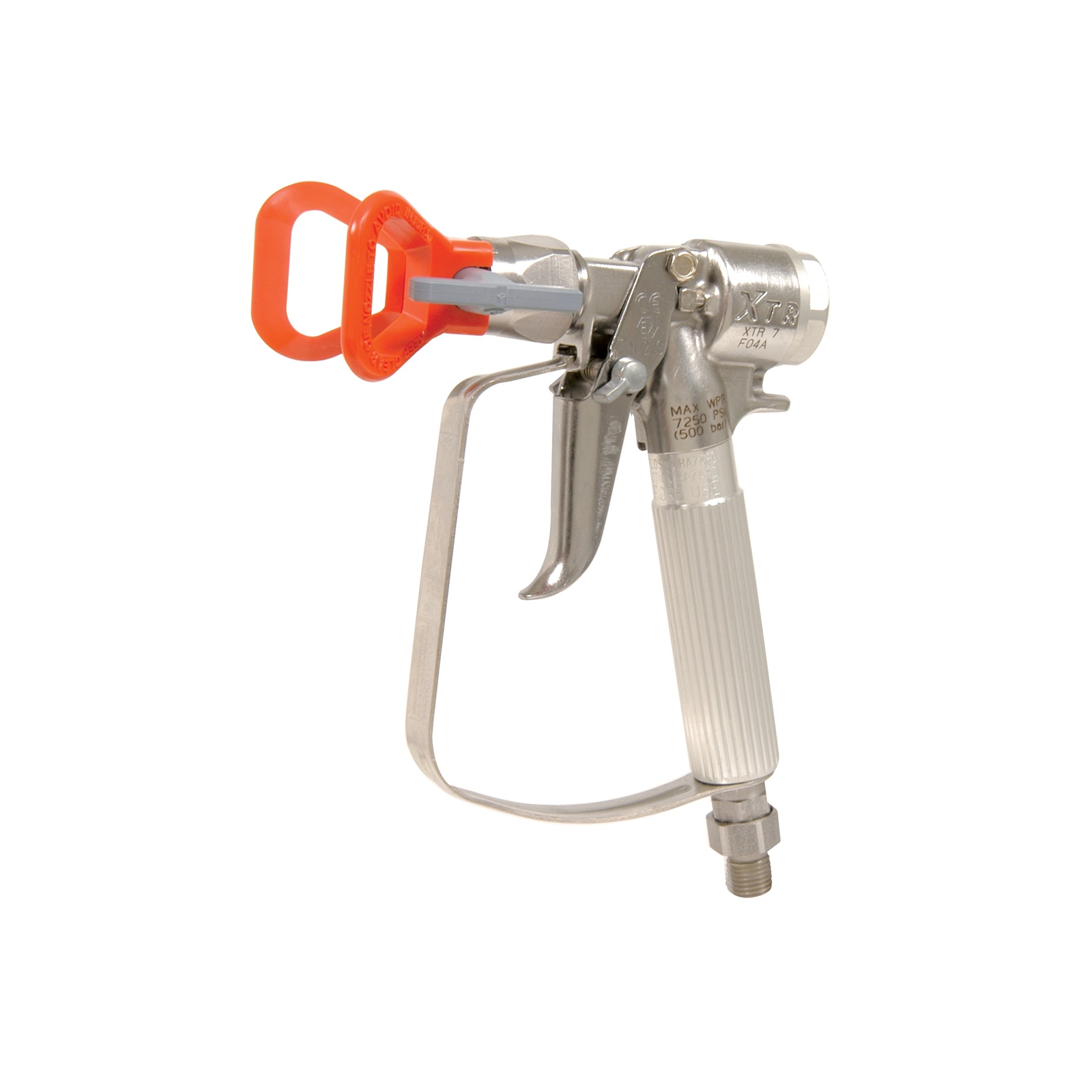

| Gun Model | XTR-5 |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (in) | 3/16 |
| Includes | Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter, DataTrak Monitor |
| Maximum Flow Rate (GPM) | 2.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Working Pressure (MPa) | 16.5 |
| Maximum Working Pressure (psi) | 2400 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Wall Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 24:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | Airless |
| Standards Met | ATEX, CE, ETL |
| Technology Type | Airless |
| Type | Airless Spray Package |
| Weight (lb) | 89 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Aluminum, Acetal, Polyethylene, Nylon, Polypropylene, Polyurethane, Solvent-Resistant O-Ring |
| Convertible | Non-Convertible |
| Fluid Inlet Size (cm) | 2.54 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 1.9050 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | XTR-5 |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (cm) | 0.5 |
| Hose Inlet Diameter (mm) | 5 |
| Includes | Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter, DataTrak Monitor |
| Maximum Flow Rate (L/min) | 9.0 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Working Pressure (MPa) | 16.5 |
| Maximum Working Pressure (bar) | 165 |
| Maximum Working Pressure (kPa) | 16500 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Wall Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 24:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | Airless |
| Standards Met | ATEX, CE, ETL |
| Technology Type | Airless |
| Type | Airless Spray Package |
| Weight (kg) | 40 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Aluminum, Acetal, Polyethylene, Nylon, Polypropylene, Polyurethane, Solvent-Resistant O-Ring |
Product Manuals
Repair Parts
| Part No. | Description |
|---|---|
| W24FBS | Merkur Wet Cup Pump Assembly, 24:1, 150 cc Lower, 3 UHMWPE/2 PTFE Packings with Chromex, DataTrak, Low Noise, SST |
| 24A578 | Wall Mount Kit for Merkur Packages |
| 289694 | Cart Mount Kit |
| 24A577 | Stand Mount Kit for Merkur Packages G15xxx and G30xxx |
| 256410 | Hopper Kit, 1.5 gal (5 l) polyethylene |
| 24E883 | Air Control Mounting Kit for Merkur and Merkur Bellows, Wall and Stand |
| 24J315 | PTFE Lined Suction Hose for Wall Mount Pumps, 1/2 in inlet |
| 256426 | Package of 10 strainers for Kits 24F149 and 256420 |
| 24B337 | PTFE Lined Suction Hose for Cart Mount Pump, 3/4 in inlet |
| 24B338 | PTFE Lined Suction Hose for Cart Mount Pump, 1 in inlet |
| M18LT0 | Air Motor, 1800 cc displacement, 7.5 in piston diameter, 2.5 in stroke, Low Noise, compatible with DataTrak with Runaway Protection |
| LW150A | Merkur Wet-Cup Style Stainless Steel Displacement Pump, 150 cc, Chromex coated rod and 3 UHMWPE, 2 PTFE packings |
