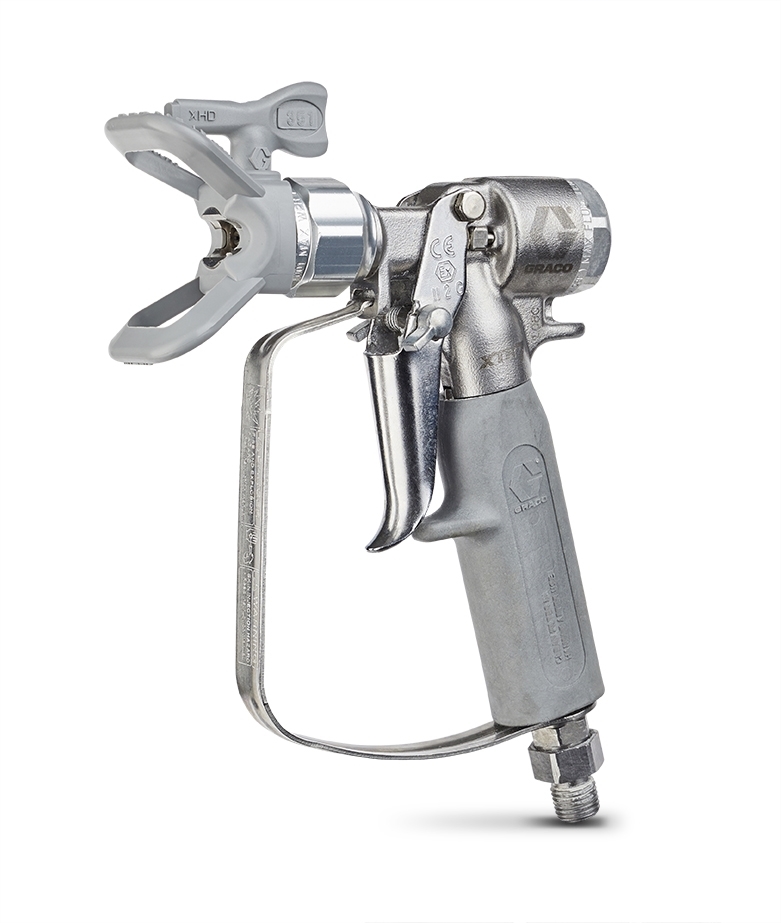

XTR 5

XTR-5 Airless Spray Gun, Oval-Insulated Handle, 2-Finger Trigger, XHD RAC Tip

XTR503

Rugged, ergonomic design handles the toughest protective coatings.

Features

Product Brochure

Rugged, ergonomic design handles the toughest protective coatings.

Airless spray guns for protective coatings.

  • Needle Assembly and GHD RAC SwitchTip

    • Exceptional life, pattern and finish
    • Great for high solids coatings
    • Factory set needle needs no adjustments
  • Easy Out Gun Filter

    • Reduces tip plugs
    • Eliminates collapsed filters
    • Provides more filtration area
  • EasyGlide Swivel

    • Allows easier gun movement under high pressure
  • Trigger Guard

    • Easily detaches for access to filter
    • Acts as a wrench to remove filter from gun handle
    • Small profile sprays in tight areas
  • The ideal choice for hard-to-spray industrial coatings

    • Variety of handle and trigger options for maximum spraying comfort
    • Compact design allows for easy access to tight places
    • High quality materials and construction
    • XTR-5 maximum fluid pressure: 5000 psi (345 bar, 34.5 MPa)

Specifications

Technical Specifications

Convert to Metric
Applicator Type Manual
Compatible Material Protective Coating Materials
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Fluid Orifice Size (in) 0.090
For Use With GH Big Rig Sprayers, Xtreme Airless Sprayers, XM Plural Component Sprayers, Merkur Airless Sprayers
Gun Activation Manual
Gun Included 1
Gun Type Airless Gun
Gun Weight (lb) 0.9
Gun Weight (oz) 14.5
Includes 519 XHD RAC tip
Maximum Fluid Pressure (MPa) 35
Maximum Fluid Pressure (psi) 5000
Maximum Fluid Temperature (°F) 160
Maximum Fluid Working Pressure (MPa) 34.5
Maximum Fluid Working Pressure (psi) 5000
Model XTR
Overall Height (in) 7.1
Overall Length (in) 4.35
Product Type Spray Gun
Purge Method Liquid
Series 5
Sound Power Level (dB(A)) 95.7
Sound Pressure Level (dB(A)) 84.3
Spray Pattern Flat
Spray Type Airless
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Aluminum , Stainless Steel, Acetal, Polyethylene, Nylon, Polypropylene, Carbide, Polyurethane, Solvent-Resistant O-Rings
Applicator Type Manual
Compatible Material Protective Coating Materials
Fluid Inlet Size (cm) 0.635
Fluid Inlet Size (mm) 6.35
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Fluid Orifice Size (cm) 0.23
Fluid Orifice Size (mm) 2.3
For Use With GH Big Rig Sprayers, Xtreme Airless Sprayers, XM Plural Component Sprayers, Merkur Airless Sprayers
Gun Activation Manual
Gun Included 1
Gun Type Airless Gun
Gun Weight (g) 411
Gun Weight (kg) 0.411
Includes 519 XHD RAC tip
Maximum Fluid Pressure (MPa) 35
Maximum Fluid Pressure (bar) 345
Maximum Fluid Pressure (kPa) 34500
Maximum Fluid Temperature (°C) 71
Maximum Fluid Working Pressure (MPa) 34.5
Maximum Fluid Working Pressure (bar) 345
Model XTR
Overall Height (cm) 18
Overall Height (mm) 180
Overall Length (cm) 11
Overall Length (mm) 111
Product Type Spray Gun
Purge Method Liquid
Series 5
Sound Power Level (dB(A)) 95.7
Sound Pressure Level (dB(A)) 84.3
Spray Pattern Flat
Spray Type Airless
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Aluminum , Stainless Steel, Acetal, Polyethylene, Nylon, Polypropylene, Carbide, Polyurethane, Solvent-Resistant O-Rings

Repair Parts

Part No. Description
287450 KIT, TRIGGER,XTR 7,2 FINGER
246296 TUBE, EXTENSION, .50 METER
246297 180° Spray Nozzle, 7/8-14 UNC-2B
287032 Gun Filter, 60 mesh
287451 KIT, TRIGGER,XTR 7,4F,CONTR.
246294 TUBE, EXTENSION, .25 METER
287033 Gun Filter, 100 mesh
287034 Gun Filters, (1) 60 mesh and (1) 100 mesh
245994 RETAINER, RAC TIP
246295 TUBE, EXTENSION, .38 METER
248837 Gun Repair Kit- Includes Gasket, Needle and Seat
287449 Four-finger Round Trigger Kit (for XTR gun)
