TrueCoat 360 DSP
TrueCoat 360 DSP Electric TrueAirless Sprayer
Part Number: 16Y386
TrueCoat 360 DSP
TrueCoat 360 DSP Electric TrueAirless Sprayer
Part Number: 16Y386
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertBuy Online
Review Highlights
Read All Reviews“The product worked well. Good value. Easy to use. Helpful instructions.”
– Lumberjack from MN, 10/5/21★★★★★
“Purchased the sprayer on a sales person recommendation…Fence looks great - finished in less than a full day. The sprayer performed perfectly and was easy to clean up. I would buy it again..”
–JackU52, 9/29/21★★★★★
“…I painted a 6' x 7' lean to shed using this sprayer. It took about 15 minutes and I had to fill the cup three times. Never had a problem. Then I switched colors and painted the inside…the TrueCoat 360 performed flawlessly…easy to clean..”
– Part Time DIY, 9/26/21★★★★★
“I bought this unit after researching it on line for about a month. It worked perfectly…Great gun. Highly recommend it.”
– rick7447, 8/10/21★★★★★
“great tool to work on painting job like a pro, and get it done fast…”
– Recy4609, 8/9/21★★★★★
“I have now owned two of these. They work as advertised. Finish is excellent for a hand held sprayer… I also want to give a shout out to their excellent customer service…They back their products. If you have a problem, before you post a negative comment, contact customer support 5+ stars for them.”
– GT Reilly, 8/2/21★★★★★
Features
Product Brochure

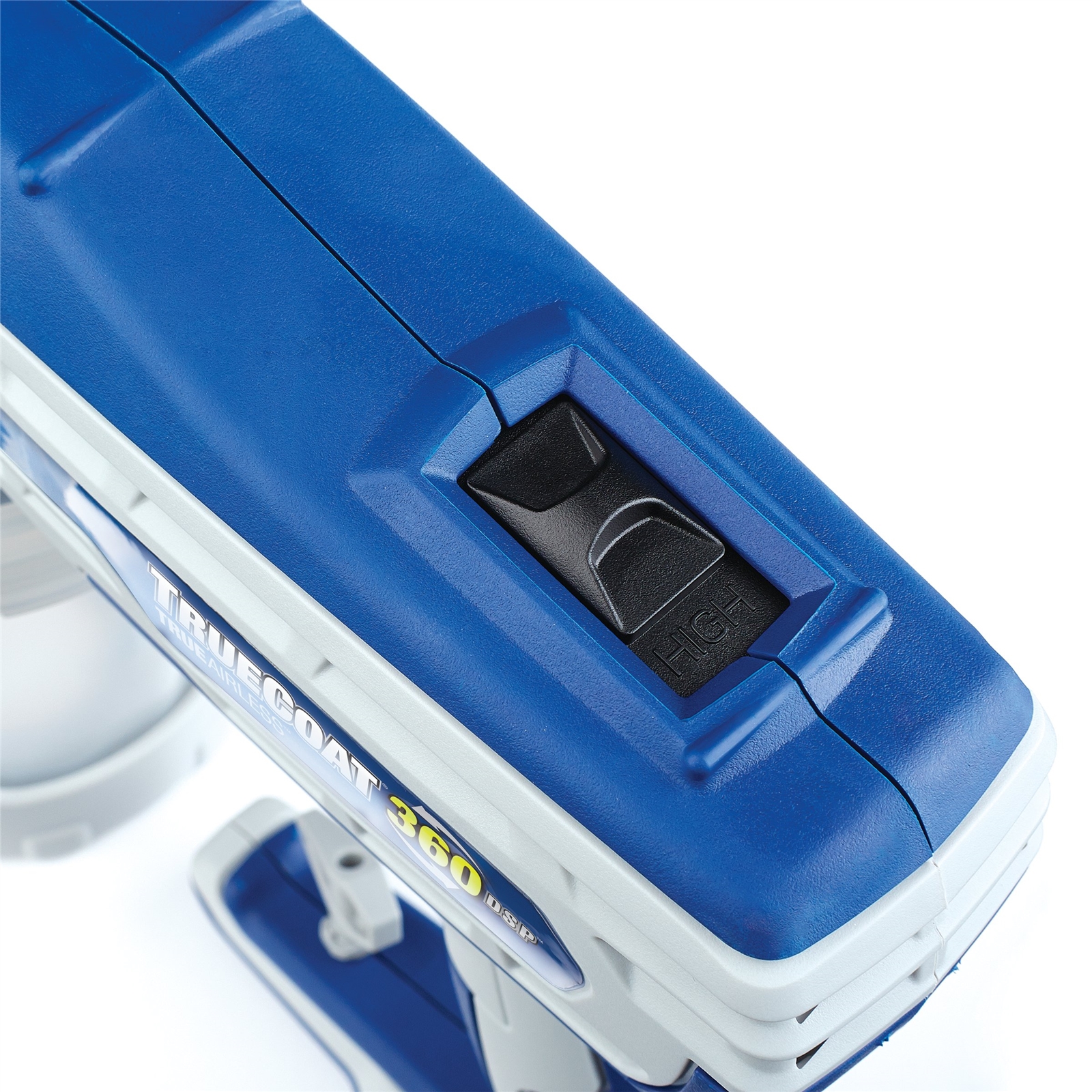

- Dual Speed Control - Low speed for more control, high speed to get the job done fast
- Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
- VacuValve Technology - Squeeze out all the air to spray in any direction - even upside down
- Reverse-A-Clean Spray Tip - High precision spray tip reverses to quickly clean material clogs
- On-Board Tip Storage - Quickly switch between the 4 in narrow and 12 in wide spray tips (tips are included)
- FlexLiner Paint Bag System - Fast cleanup, recycle or reuse
- Durable Storage Bag - Protects sprayer while keeping tips and accessories organized
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Tip Size (in) | 0.015 |
|---|---|
| Frame Configuration | Handheld |

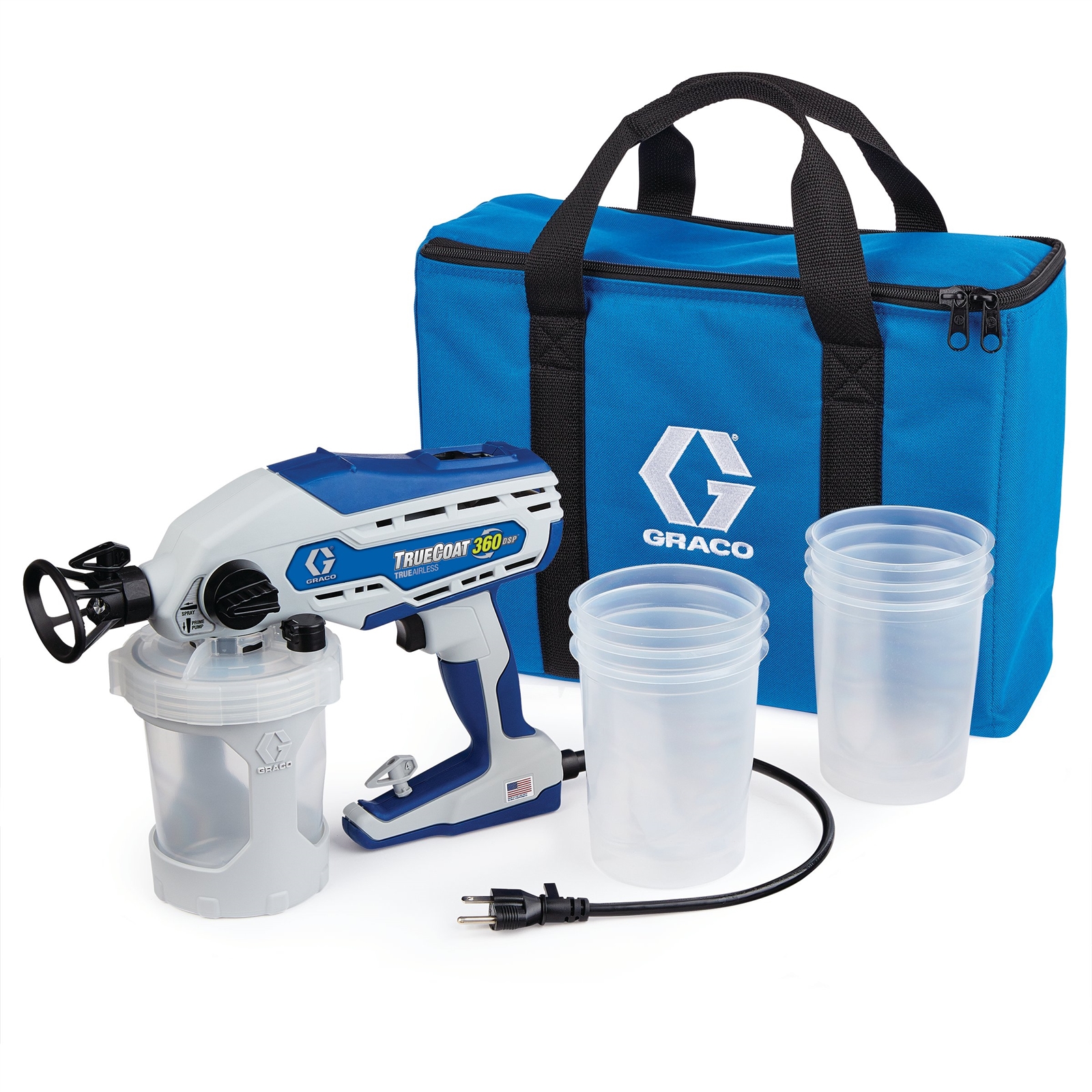

| Includes | 4 in RAC Spray Tip, 12 in RAC Spray Tip, 7 - 32 oz FlexLiner Bags, Storage Case |
| Maximum Tip Size (in) | 0.015 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Model | TrueCoat |
| Overall Height (in) | 9.75 |
| Overall Length (in) | 12.50 |
| Overall Width (in) | 5.25 |
| Power Cord Length (in) | 18 |
| Power Source | Electric |
| Product Series | DIY |
| Pump Type | Piston |
| Recommended Annual Usage (gal) | 25 |
| Series | 360 DSP |
| Type | Handheld Corded Airless Sprayer |
| Voltage (V) | 120 |
| Weight (lb) | 4 |
| Compatible Tip Size (cm) | 0.0381 |
| Compatible Tip Size (in) | 0.015 |
| Compatible Tip Size (mm) | 0.3810 |
| Frame Configuration | Handheld |
| Includes | 4 in RAC Spray Tip, 12 in RAC Spray Tip, 7 - 32 oz FlexLiner Bags, Storage Case |
| Maximum Tip Size (cm) | 0.0381 |
| Maximum Tip Size (in) | 0.015 |
| Maximum Tip Size (mm) | 0.3810 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Maximum Working Pressure (psi) | 1500 |
| Model | TrueCoat |
| Overall Height (cm) | 24.77 |
| Overall Height (mm) | 247.7 |
| Overall Length (cm) | 31.75 |
| Overall Length (mm) | 317.5 |
| Overall Width (cm) | 13.34 |
| Overall Width (mm) | 133.4 |
| Power Cord Length (cm) | 46 |
| Power Cord Length (mm) | 457 |
| Power Source | Electric |
| Product Series | DIY |
| Pump Type | Piston |
| Series | 360 DSP |
| Type | Handheld Corded Airless Sprayer |
| Voltage (V) | 120 |
| Weight (kg) | 2 |
