Features
Product Brochure- Dual Speed Control - Low speed for more control, high speed to get the job done fast
- Stainless Steel Piston Pump - Delivers high pressure power to spray unthinned paints
- VacuValve Technology - Squeeze out all the air to spray in any direction - even upside down
- Reverse-A-Clean Spray Tip - High precision spray tip reverses to quickly clean material clogs
- On-Board Tip Storage - Quickly switch between the 4 in narrow and 12 in wide spray tips (tips are included)
- FlexLiner Paint Bag System - Fast cleanup, recycle or reuse

Specifications & Documents
Technical Specifications
Convert to MetricCompatible Tip Size (in) | 0.015 |
---|---|
Frame Configuration | Handheld |

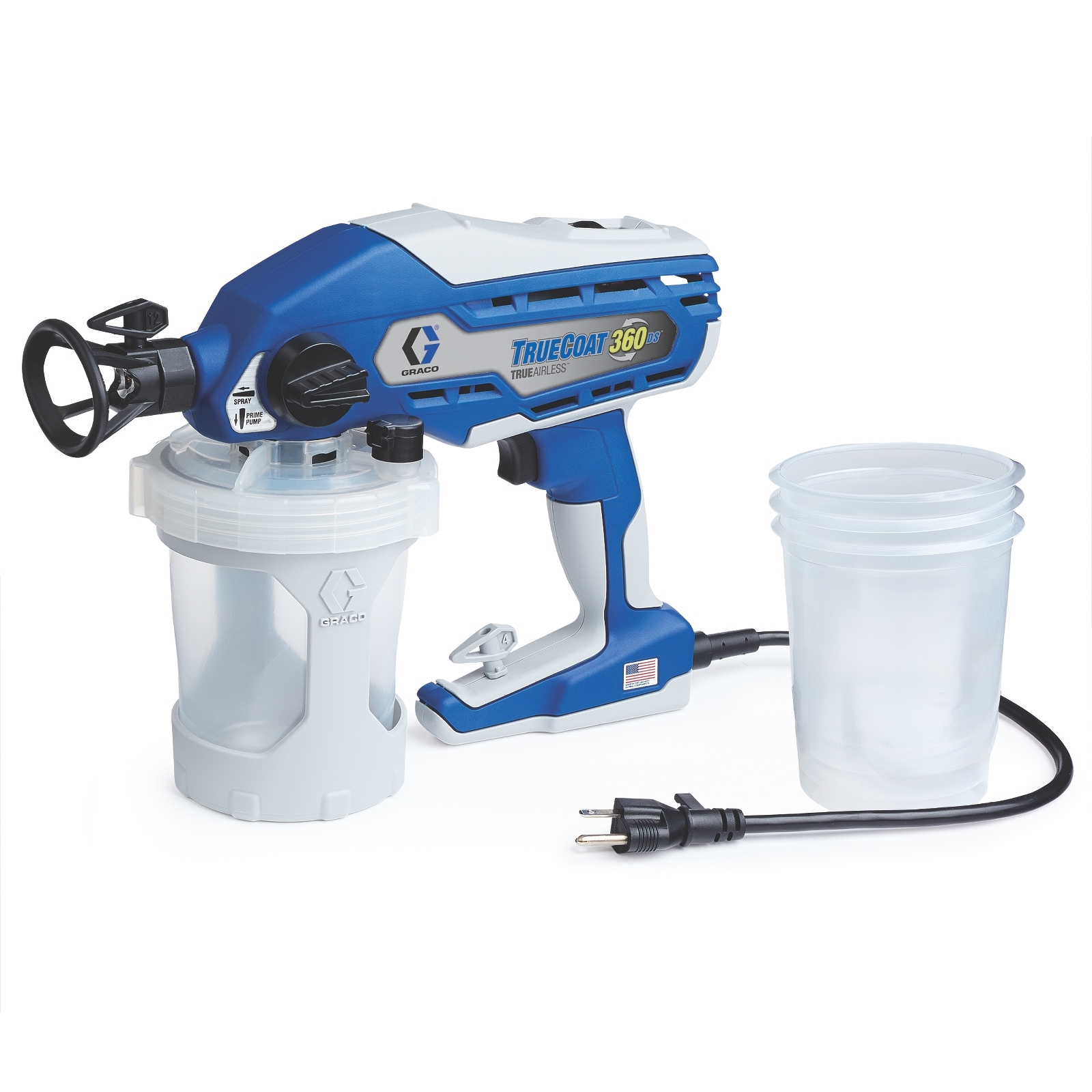

Includes | 4 in Spray Tip, 12 in Spray Tip, 4 - 32 oz FlexLiner Bags |
Maximum Tip Size (in) | 0.015 |
Maximum Working Pressure (MPa) | 10.3 |
Maximum Working Pressure (psi) | 1500 |
Model | TrueCoat |
Overall Height (in) | 9.75 |
Overall Length (in) | 12.50 |
Overall Width (in) | 5.25 |
Power Cord Length (in) | 18 |
Power Source | Electric |
Product Series | DIY |
Pump Type | Piston |
Recommended Annual Usage (gal) | 25 |
Series | 360 DS |
Type | Handheld Corded Airless Sprayer |
Voltage (V) | 120 |
Weight (lb) | 4 |
Compatible Tip Size (cm) | 0.0381 |
Compatible Tip Size (in) | 0.015 |
Compatible Tip Size (mm) | 0.3810 |
Frame Configuration | Handheld |
Includes | 4 in Spray Tip, 12 in Spray Tip, 4 - 32 oz FlexLiner Bags |
Maximum Tip Size (cm) | 0.0381 |
Maximum Tip Size (in) | 0.015 |
Maximum Tip Size (mm) | 0.3810 |
Maximum Working Pressure (MPa) | 10.3 |
Maximum Working Pressure (bar) | 103 |
Maximum Working Pressure (kPa) | 10300 |
Maximum Working Pressure (psi) | 1500 |
Model | TrueCoat |
Overall Height (cm) | 24.77 |
Overall Height (mm) | 247.7 |
Overall Length (cm) | 31.75 |
Overall Length (mm) | 317.5 |
Overall Width (cm) | 13.34 |
Overall Width (mm) | 133.4 |
Power Cord Length (cm) | 46 |
Power Cord Length (mm) | 457 |
Power Source | Electric |
Product Series | DIY |
Pump Type | Piston |
Series | 360 DS |
Type | Handheld Corded Airless Sprayer |
Voltage (V) | 120 |
Weight (kg) | 2 |
