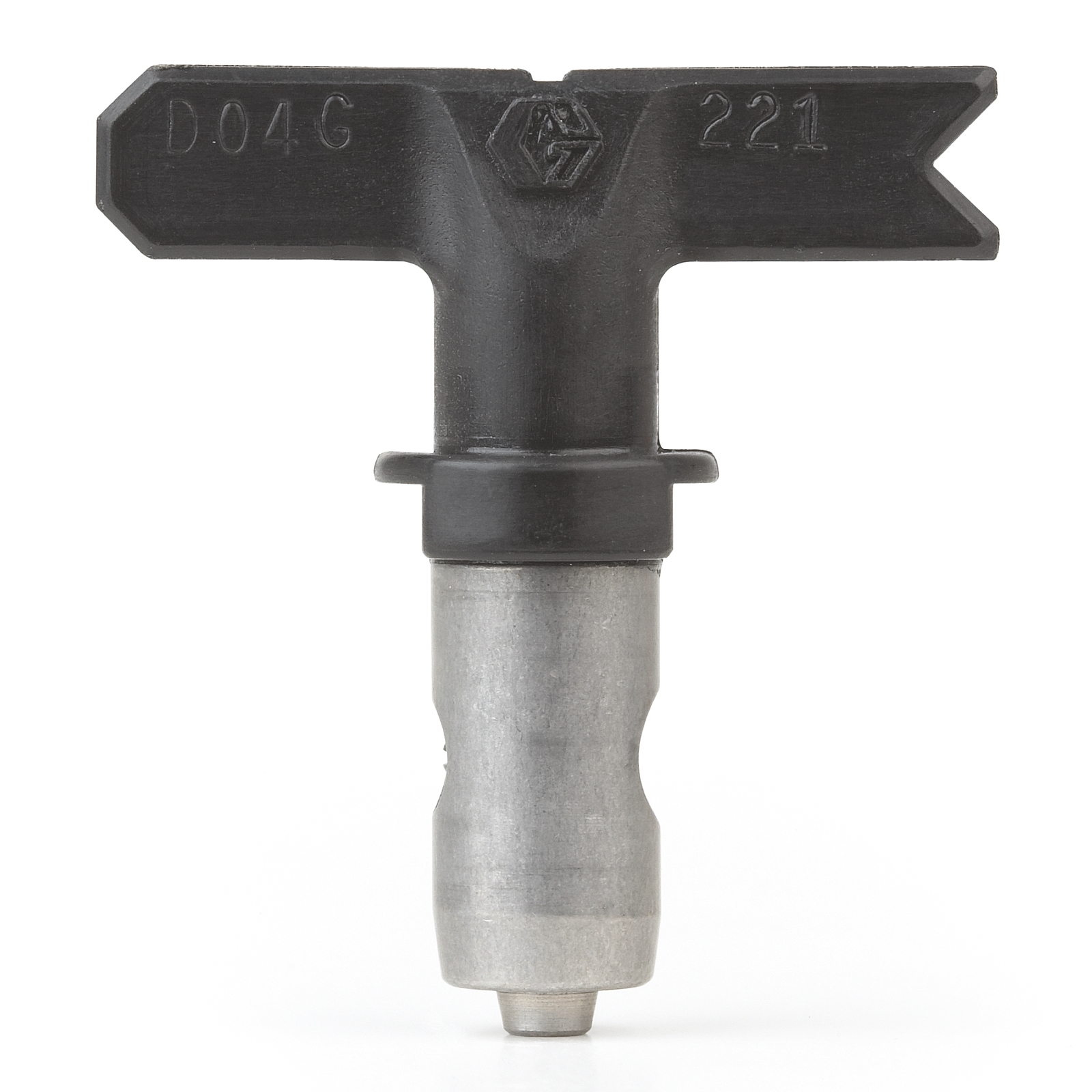

RAC IV SwitchTip
RAC IV SwitchTip 517
221517
Rac 4 Tip
RAC IV SwitchTip
RAC IV SwitchTip 517
221517
The Reverse-A-Clean (RAC) 517 RAC IV SwitchTip is designed for wide surfaces and materials like enamels, primers, interior paints, paint + primers, and exterior paints. The 517 SwitchTip has a 0.017 inch orifice and produces a 10 to 12 inch fan. Reverse the SwitchTip to easily clear clogs.
$25.99
USD MSRP
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
The Reverse-A-Clean (RAC) 517 RAC IV SwitchTip is designed for wide surfaces and materials like enamels, primers, interior paints, paint + primers, and exterior paints. The 517 SwitchTip has a 0.017 inch orifice and produces a 10 to 12 inch fan. Reverse the SwitchTip to easily clear clogs.
Reverse-A-Clean (RAC) IV SwitchTip
- Select different-sized tips based on the material used
- Reversible — quickly clear tip plugs with a twist
- Easily installs on Gun without tools
Specifications
Technical Specifications
Convert to Metric| Compatible Material | Primer, Enamel, Interior and Exterior Paint |
|---|---|
| For Use With | X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart |
| Maximum Fan Width (in) | 12 |
| Maximum Flow Rate (GPM) | .31 |
| Maximum Flow Rate (L/min) | 1.17 |
| Maximum Working Pressure (psi) | 4050 |
| Minimum Fan Width (in) | 10 |
| Orifice Diameter (in) | 0.017 |
| Type | Spray Tip |
| Compatible Material | Primer, Enamel, Interior and Exterior Paint |
| For Use With | X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart |
| Maximum Fan Width (mm) | 305 |
| Maximum Flow Rate (GPM) | .31 |
| Maximum Flow Rate (L/min) | 1.17 |
| Maximum Working Pressure (bar) | 280 |
| Maximum Working Pressure (kPa) | 28000 |
| Maximum Working Pressure (kg/cm²) | 286 |
| Minimum Fan Width (mm) | 254 |
| Orifice Diameter (cm) | 0.0432 |
| Orifice Diameter (mm) | 0.4318 |
| Type | Spray Tip |
