G-Flex

G-Flex Flexible Parts Feeder

16V133

16V133_G-Flex_Parts_Feeder_Main_190422 16V133_G-Flex_Parts_Feeder_190422_Alt_1 16V133_G-Flex_Parts_Feeder_190422_Alt_2 16V133_G-Flex_Parts_Feeder_190422_Alt_3 16V133_G-Flex_Parts_Feeder_190422_Alt_5

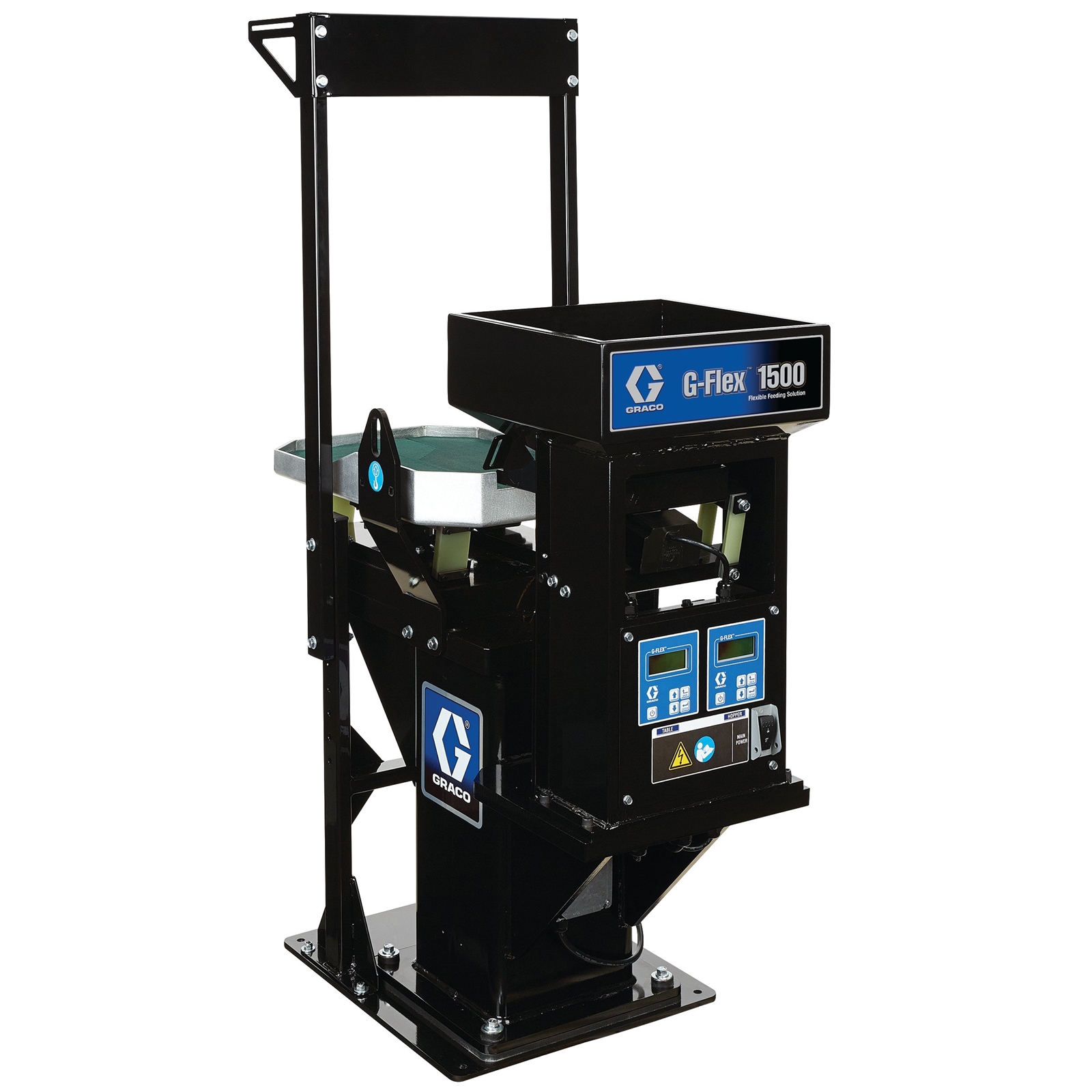

G-Flex Parts Feeder, 16V133

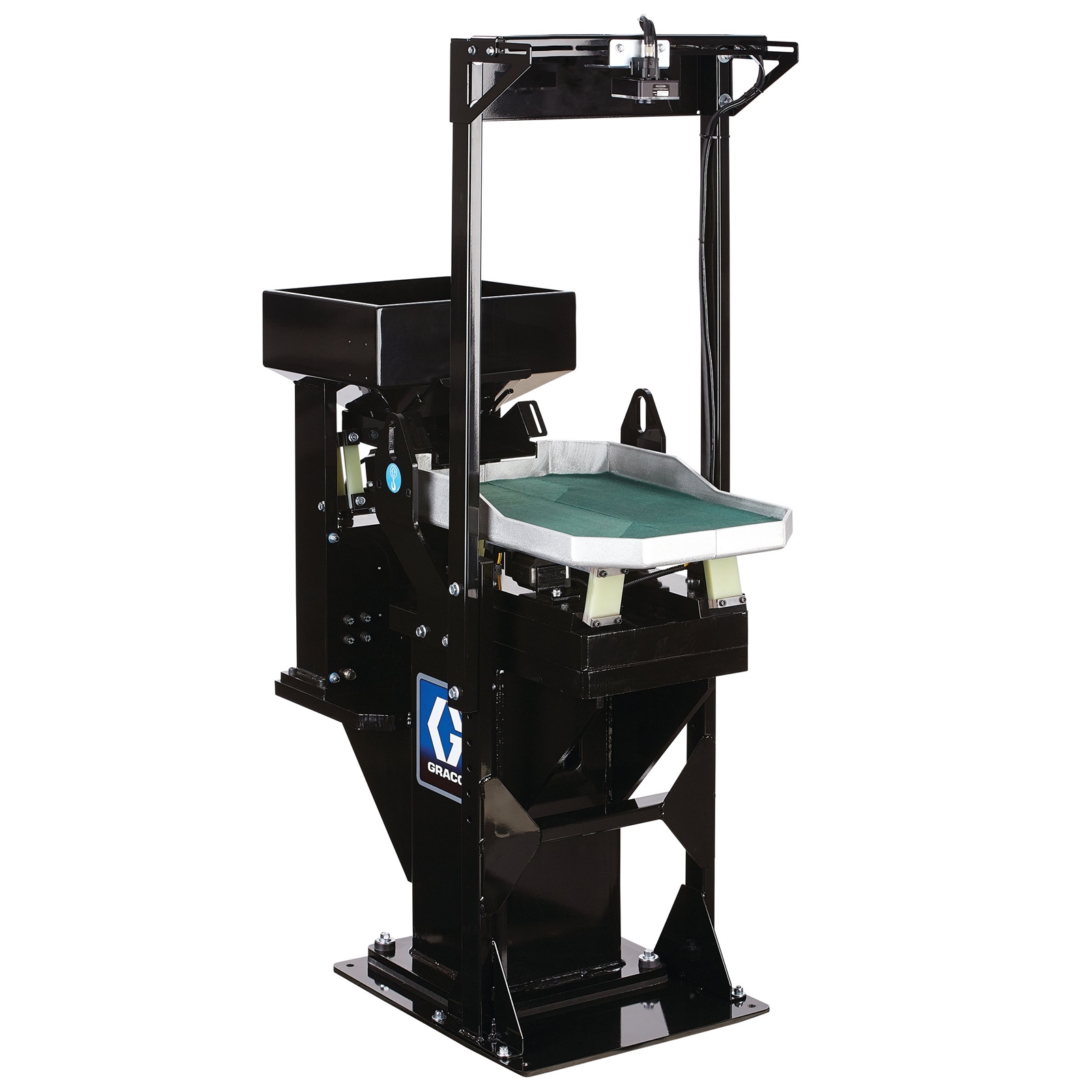

G-Flex Parts Feeder with optional Camera Stand, 16V133
G-Flex Parts Feeder with optional Camera Stand, 16V133

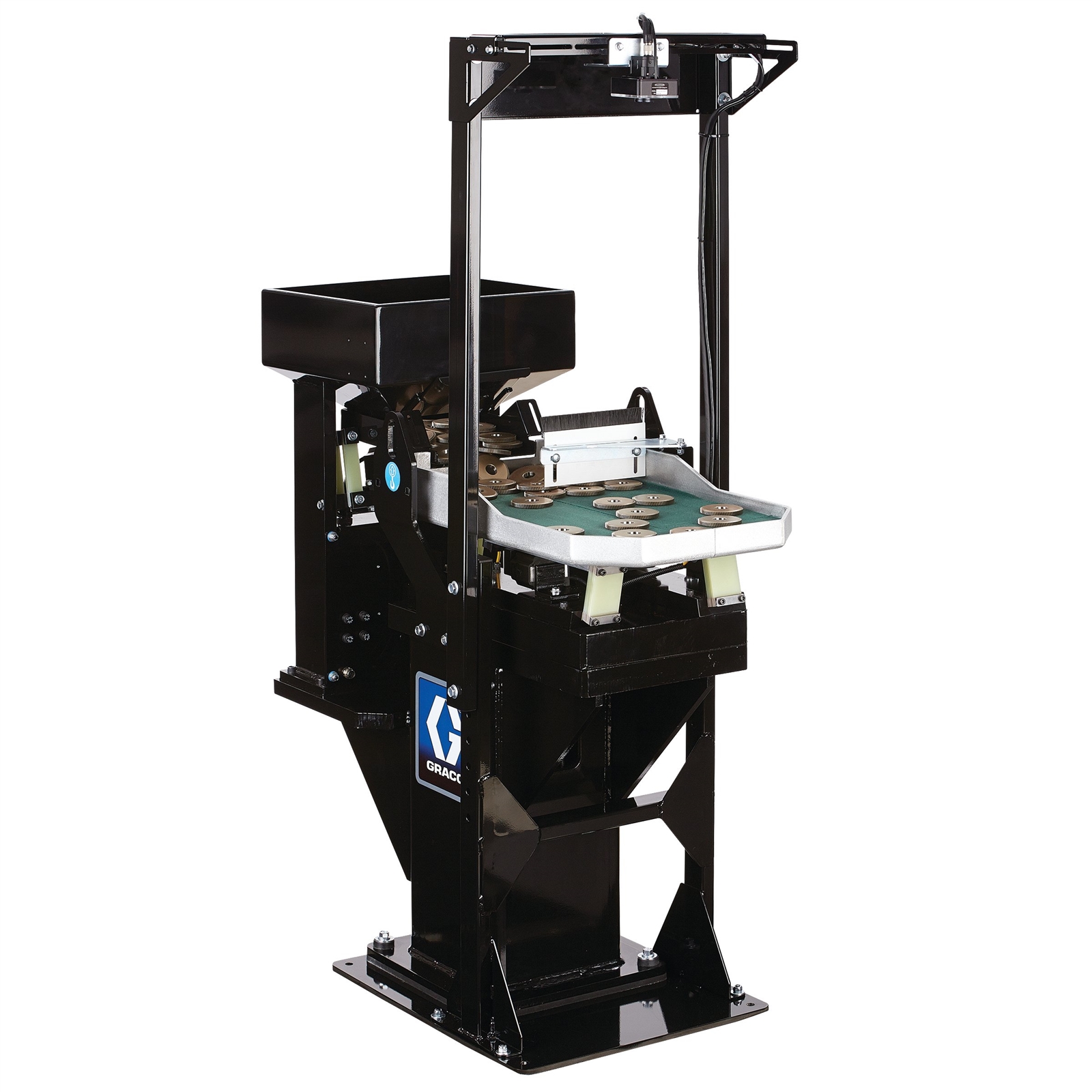

G-Flex Parts Feeder with optional Camera Stand and Stacked Part Eliminator, 16V133

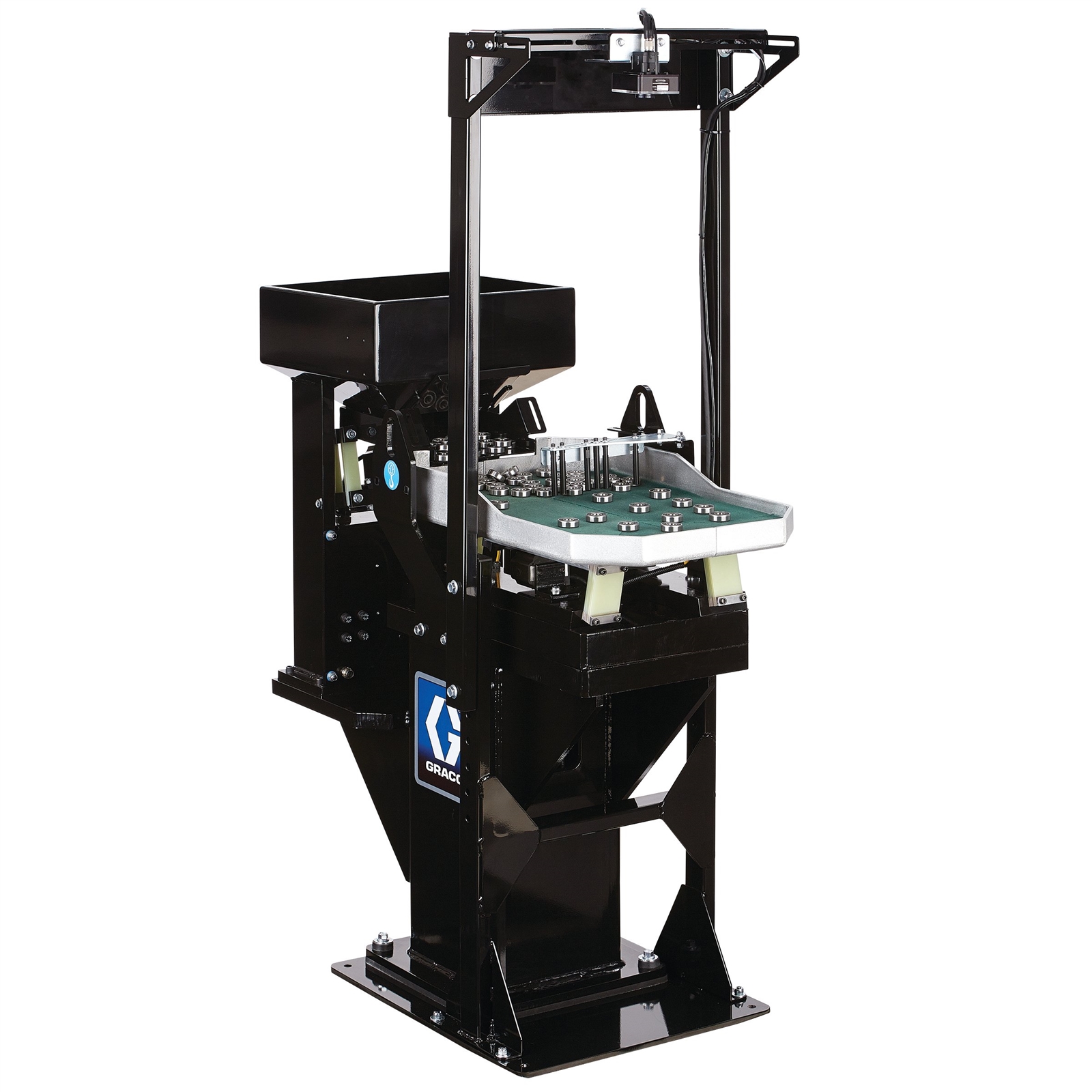

G-Flex Parts Feeder with optional Camera Stand and Part Separator, 16V133

G-Flex

G-Flex Flexible Parts Feeder

16V133

In response to an internal manufacturing automation challenge, Graco engineers developed the G-Flex Flexible Parts Feeding Solution and placed several into operation within our own factory. Since that time, multiple G-Flex Solutions have been put into action in more Graco factories with outstanding ... More Info

Features

Product Brochure
In response to an internal manufacturing automation challenge, Graco engineers developed the G-Flex Flexible Parts Feeding Solution and placed several into operation within our own factory. Since that time, multiple G-Flex Solutions have been put into action in more Graco factories with outstanding results.
  • Handles a Wide Range of Part Sizes and Geometries
    • Proven to work with a wide range of part sizes and shapes
  • Integrated Controls
    • Fully adjustable vibration magnitude, giving you control of part movement and speed
    • Active feedback from table to controller automatically adjusts vibration frequency as more or less weight is added to the recirculating table
    • Pin out / password protected access
  • Easy to Place in Service
    • Only 2 points of connection required. Connect power to junction box. Connect PLC input via M12 connection
  • Large Capacity Hopper
    • Dispenses parts on-demand from hopper to table
    • Fill your hopper while your line is running – no more production interruptions
  • Uniquely Designed Feeder Table
    • Recirculates parts that are not locatable, bringing them back to robot’s field of view
    • Specifically selected carpet geometries keep the widest range of parts in circulation
    • Chamfered corners help prevent part accumulation
  • Heavy-Duty Base
    • Durable 0.5 inch (1.3 cm) plate steel stand
    • Solid 1.0 inch (2.5 cm) steel hopper platform and 1.5 inch (3.8 cm) steel table platform provides extra rigidity and support
16V133_G-Flex_Parts_Feeder_190422_Alt_2

Specifications

Technical Specifications

Convert to Metric
Hopper Capacity (ft³) 0.9
Overall Length (in) 24
Overall Width (in) 15
Power Connection Type M12
Power Supply (Hz) 60
Power Supply (V ac) 110
Type Automated Assembly Feeder
Hopper Capacity (m³) 0.25
Overall Length (cm) 61
Overall Width (cm) 38.1
Power Connection Type M12
Power Supply (Hz) 60
Power Supply (V ac) 110
Type Automated Assembly Feeder
