President 4-Ball

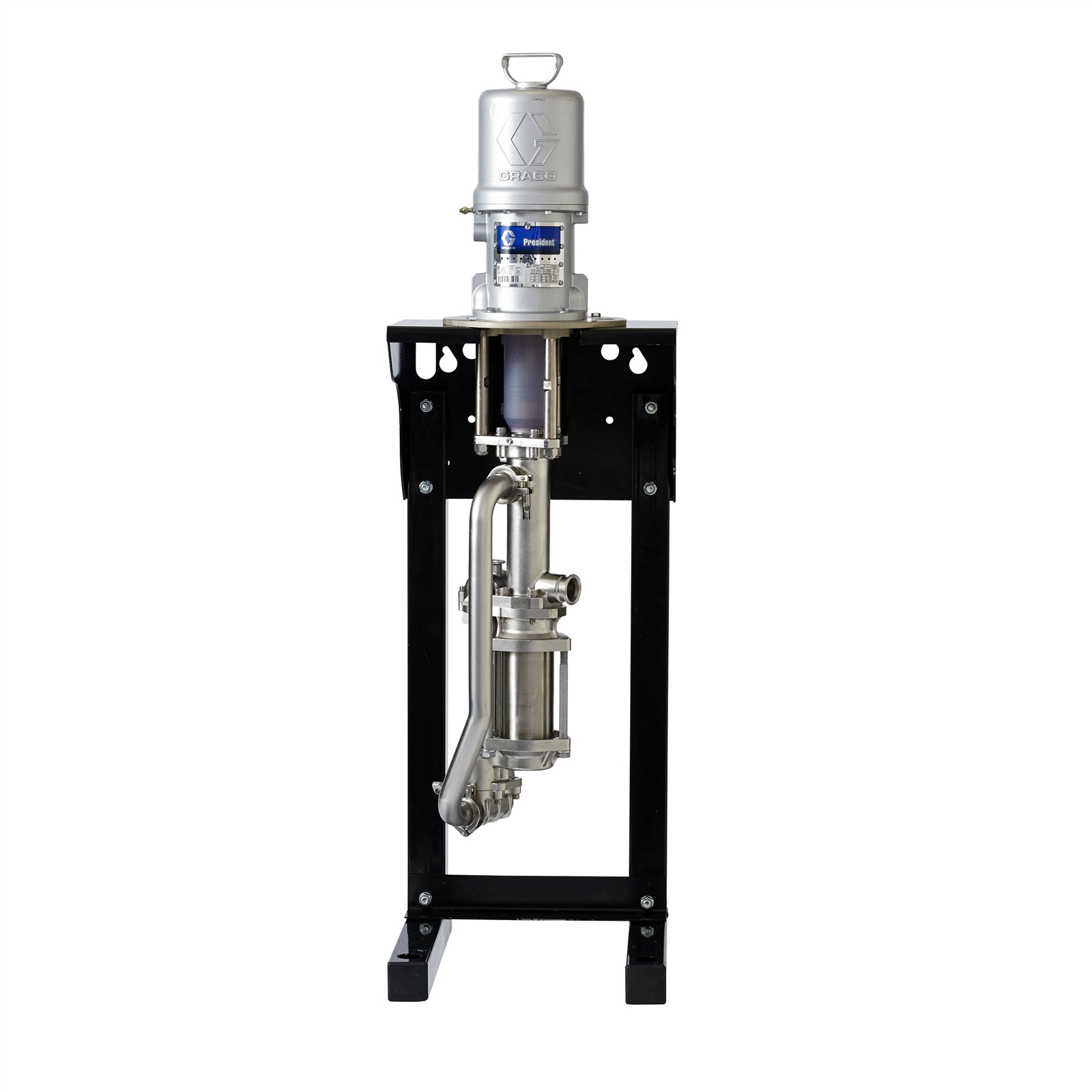

3:1 President 4-Ball Pneumatic Pump, 750 cc, Open SST Lower, 460 psi (32 bar) Max Working Pressure, NPT, Stubby Pump Length

17E228

S4B_President_1252

President 4-Ball

3:1 President 4-Ball Pneumatic Pump, 750 cc, Open SST Lower, 460 psi (32 bar) Max Working Pressure, NPT, Stubby Pump Length

17E228

Graco's high volume circulating pumps will allow you to handle large flow requirements while operating at low cycle rates. The pump lower requires fewer cycles per gallon and longer intervals between seal replacement, lowering your overall cost of ownership.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Graco's high volume circulating pumps will allow you to handle large flow requirements while operating at low cycle rates. The pump lower requires fewer cycles per gallon and longer intervals between seal replacement, lowering your overall cost of ownership.
  • Excellent abrasion and corrosion resistance with large porting for excellent priming and handling of high viscosity fluids
  • Stainless steel and carbon steel wetted parts for a wide range of fluids

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.5
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Circulation
Compatible Material Waterborne, Solventborne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
Fluid Outlet Size (in) 1
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Type Open Wet Cup
Material Stainless Steel
Maximum Air Inlet Pressure (psi) 150
Maximum Continuous Cycle Rate (CPM) 12
Maximum Flow Rate (GPM) 9.6
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 3.2
Maximum Working Pressure (psi) 460
Portable Non-Portable
Pump Ratio 3:1
Standards Met ATEX, CE
Type Pneumatic Piston Pump
Wetted Material Stainless Steel
Air Inlet Size (cm) 1.27
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Circulation
Compatible Material Waterborne, Solventborne, High Solids, Xirallic, Metallics, Topcoats, Stains, Varnish, CARC
Fluid Outlet Size (cm) 2.54
Fluid Outlet Size (mm) 25.4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Type Open Wet Cup
Material Stainless Steel
Maximum Air Inlet Pressure (bar) 10.34
Maximum Air Inlet Pressure (kPa) 1034
Maximum Continuous Cycle Rate (CPM) 12
Maximum Flow Rate (L/min) 36.34
Maximum Operating Temperature (°C) 66
Maximum Working Pressure (MPa) 3.2
Maximum Working Pressure (bar) 32
Maximum Working Pressure (kPa) 3200
Portable Non-Portable
Pump Ratio 3:1
Standards Met ATEX, CE
Type Pneumatic Piston Pump
Wetted Material Stainless Steel
