Viscount II

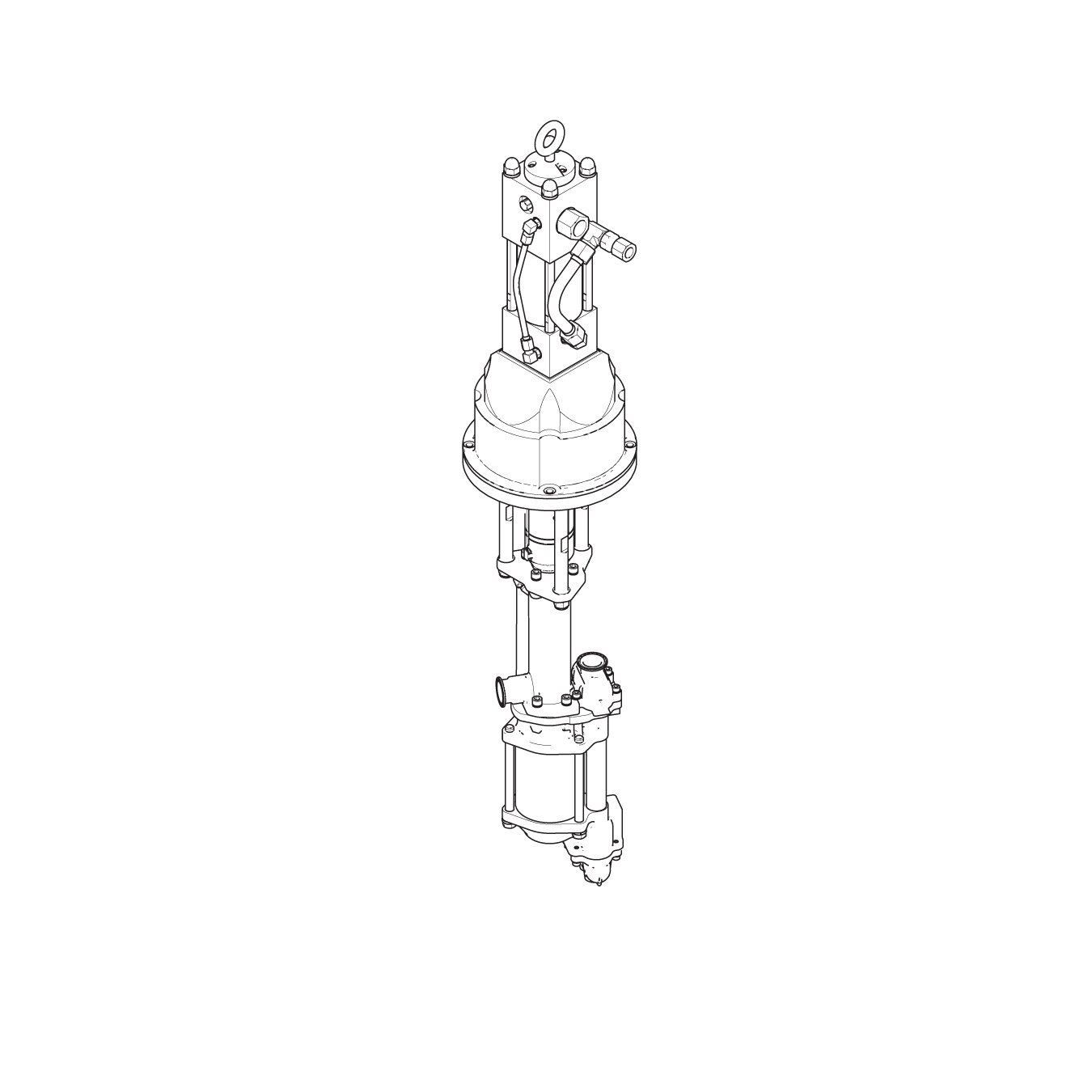

Viscount II 4-Ball Hydraulic Pump, SST, 2000cc Sealed Lower, Tri-Clamp, Ultralife™ Rod/Cylinder

17E243

Viscount_II_4Ball_Sealed

Viscount II

Viscount II 4-Ball Hydraulic Pump, SST, 2000cc Sealed Lower, Tri-Clamp, Ultralife™ Rod/Cylinder

17E243

Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or waterborne paint circulation. The simplified lower design means fewer parts and fast, easy repairs for low cost of ownership.
  • Hydraulic-powered pumps for low pressure, high volume circulation of finishing materials
  • Produces low-shear output for metallic or waterborne paint circulation
  • Flushes easily and offers quick color changes

Specifications

Technical Specifications

Convert to Metric
Application Circulation
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Thread Type Tri-Clamp
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Type Tri-Clamp
Fluid Section Type Sealed
Material Stainless Steel
Maximum Continuous Cycle Rate (CPM) 20
Maximum Flow Rate (GPM) 31.5
Maximum Hydraulic Fluid Inlet Pressure (psi) 1200
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 1.6
Maximum Working Pressure (psi) 225
Portable Non-Portable
Standards Met ATEX, CE
Type Hydraulic Piston Pump
Wetted Material Stainless Steel
Application Circulation
Compatible Material CARC, High Solids, Metallics, Solventborne, Stains, Topcoats, Varnish, Waterborne, Xirallic
Fluid Inlet Size (cm) 3.81
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Type Tri-Clamp
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Type Tri-Clamp
Fluid Section Type Sealed
Material Stainless Steel
Maximum Continuous Cycle Rate (CPM) 20
Maximum Flow Rate (L/min) 119.24
Maximum Hydraulic Fluid Inlet Pressure (bar) 82.7
Maximum Hydraulic Fluid Inlet Pressure (kPa) 8270
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Operating Temperature (°C) 66
Maximum Working Pressure (MPa) 1.6
Maximum Working Pressure (bar) 16
Maximum Working Pressure (kPa) 1600
Portable Non-Portable
Standards Met ATEX, CE
Type Hydraulic Piston Pump
Wetted Material Stainless Steel
