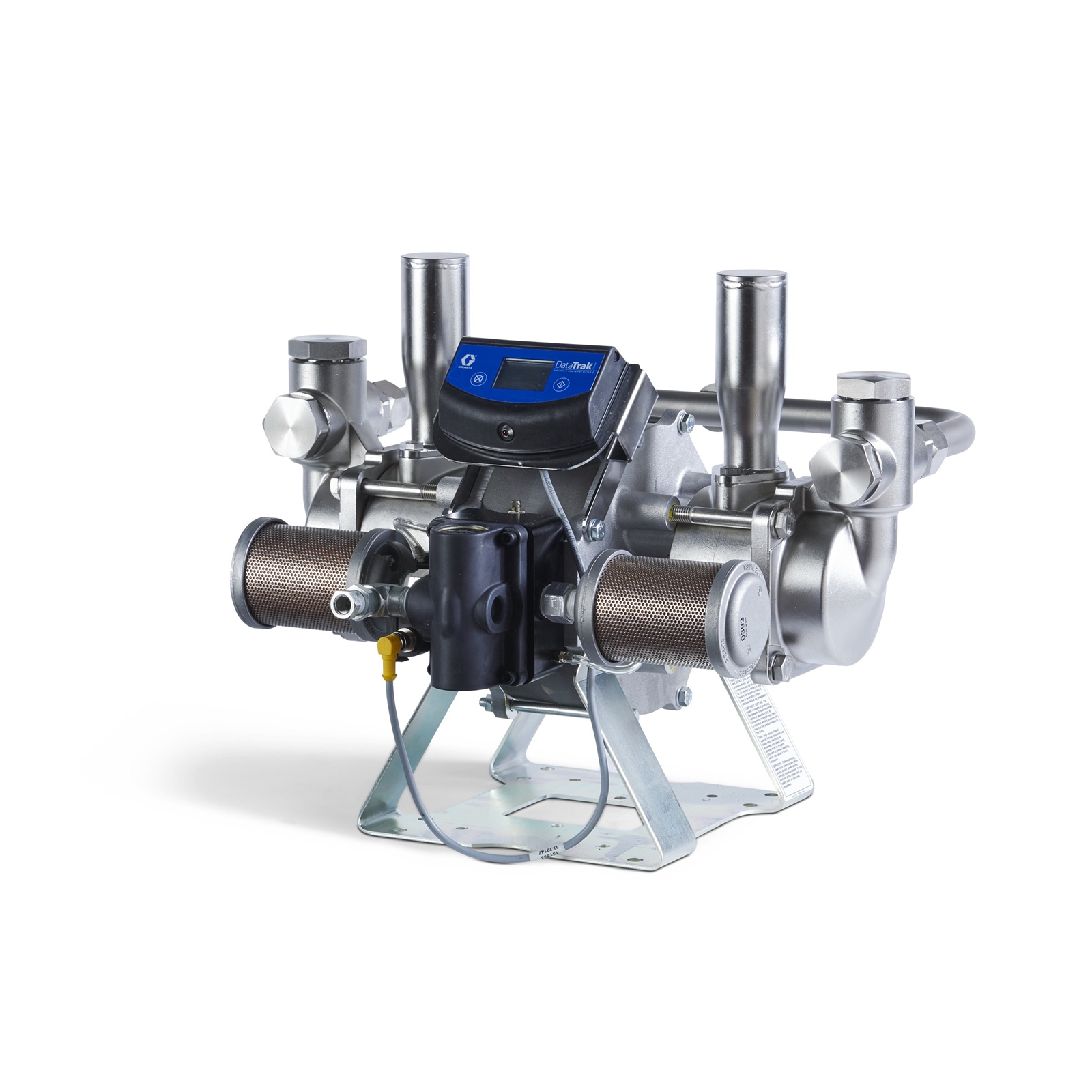

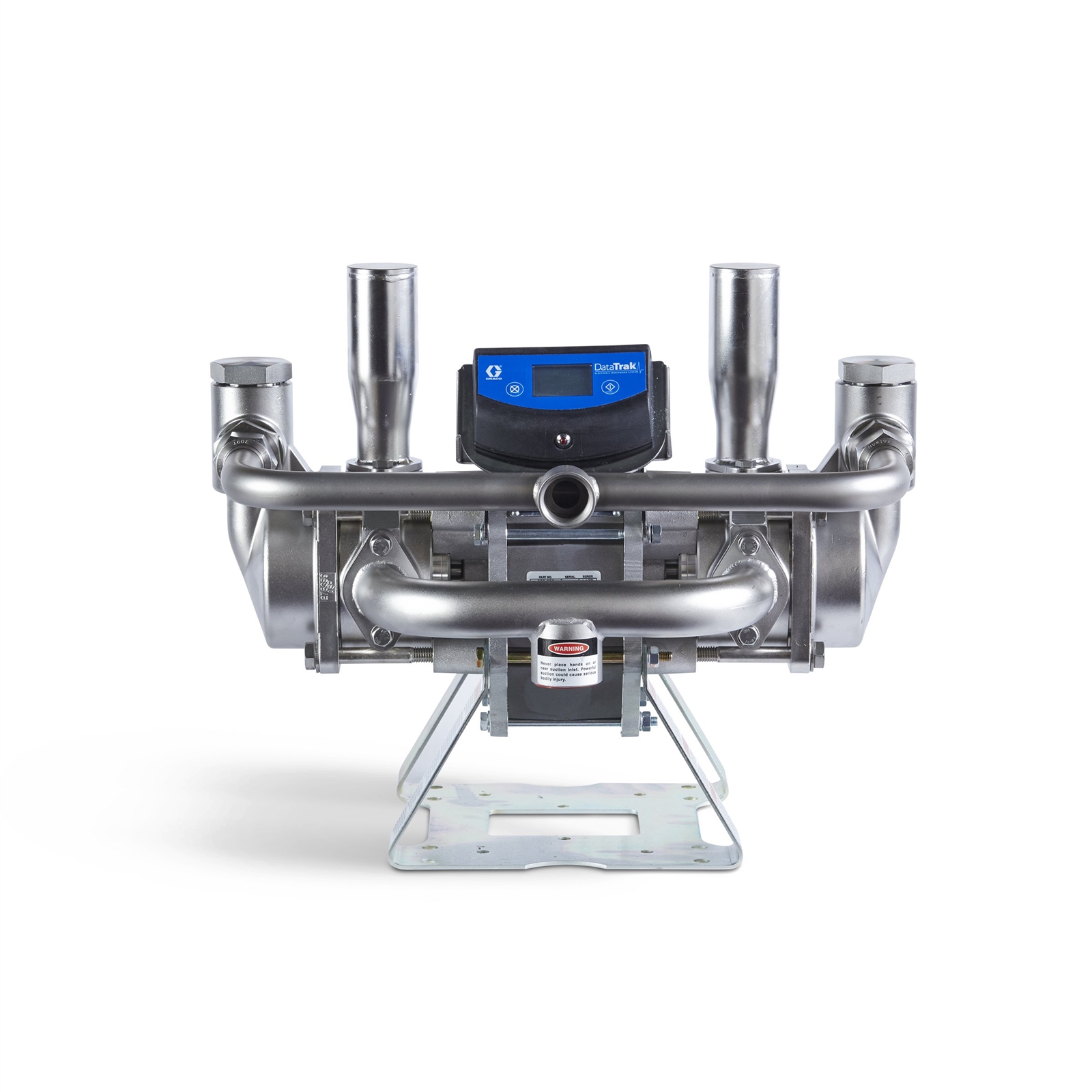

Glutton 25:1 Bellows Pump, SST, UHMWPE Seals, DataTrak

17W014

Glutton glutton

Glutton 25:1 Bellows Pump, SST, UHMWPE Seals, DataTrak

17W014

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1
  • Glutton air valve upgrades the platform to use less air, run quieter, and deliver consistent results while using proven anti-icing technology
  • Designed to handle a broad range of applications, including abrasive materials
  • Reversible outlet manifold simplifies plumbing installations

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.5
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Supply
Compatible Material Waterborne, Xirallic, High Solids, Varnish, Solventborne, UV Coating, Metallics, CARC, Stains
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Type Sealed
Material Stainless Steel
Maximum Air Inlet Pressure (psi) 100
Maximum Continuous Cycle Rate (CPM) 60
Maximum Flow Rate (GPM) 0.9
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 17.2
Maximum Working Pressure (psi) 2500
Portable Non-Portable
Pump Ratio 25:1
Seal Material UHMWPE
Standards Met ATEX, CE
Type Pneumatic Piston Pump
Wetted Material Carbon Steel
Air Inlet Size (cm) 1.27
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Supply
Compatible Material Waterborne, Xirallic, High Solids, Varnish, Solventborne, UV Coating, Metallics, CARC, Stains
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Type Sealed
Material Stainless Steel
Maximum Air Inlet Pressure (bar) 6.9
Maximum Air Inlet Pressure (kPa) 690
Maximum Continuous Cycle Rate (CPM) 60
Maximum Flow Rate (L/min) 3.41
Maximum Operating Temperature (°C) 66
Maximum Working Pressure (MPa) 17.2
Maximum Working Pressure (bar) 172
Maximum Working Pressure (kPa) 17200
Portable Non-Portable
Pump Ratio 25:1
Seal Material UHMWPE
Standards Met ATEX, CE
Type Pneumatic Piston Pump
Wetted Material Carbon Steel

Repair Parts

Part No. Description
220660 Urethane Piston Seal Replacement Kit, for 2500 Series Glutton Pumps
221135 Carbide Ball and Seat Replacement Kit, for 2500 Series Glutton Pumps
17W667 Air Valve Conversion Kit, Standard
17W668 Air Valve Conversion Kit, Advanced
17W772 Reed Switch (Cycle Count) Kit for Endura-Flo Pumps
24C130 Standard Pump Repair Kit with Nylon Piston Seal, for 1200 Series Glutton Pumps
24C132 Standard Pump Repair Kit with Nylon Piston Seal, for 2500 Series Glutton Pumps
24C133 Standard Pump Repair Kit with UHMWPE Piston Seal, for 2500 Series Glutton Pumps
24Y306 Endura-Flo 4D350 DataTrak Conversion Kit, Includes replacement air valve compatible with solenoid
