Viscount I

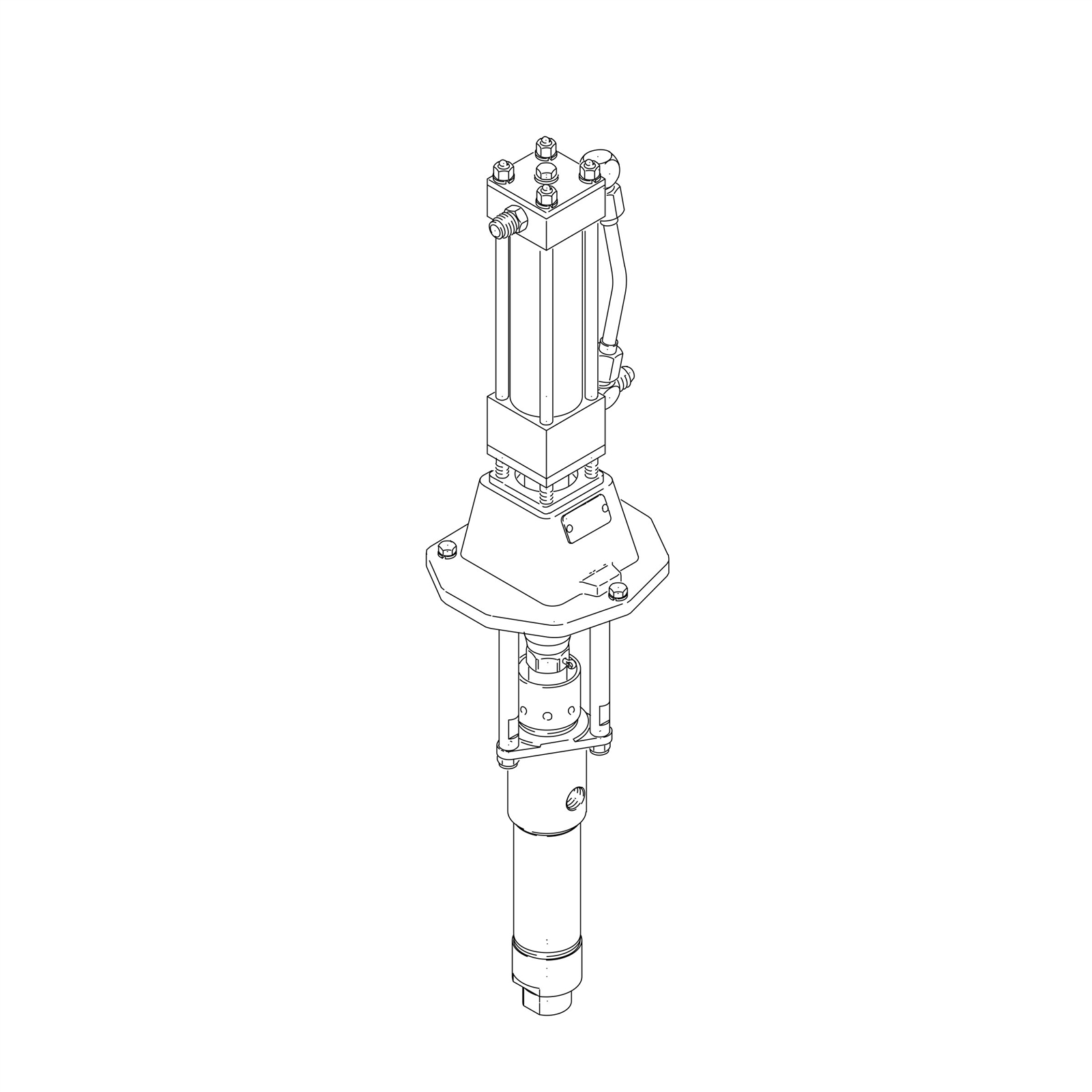

Viscount I 1000 Hydraulic Pump, SST, for Medium Viscosity Corrosive Materials

218077

218077

Viscount I

Viscount I 1000 Hydraulic Pump, SST, for Medium Viscosity Corrosive Materials

218077

The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile u... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The rugged pump lower construction with Severe Duty rods and cylinders reduces downtime and extends the interval between repairs. The simple construction makes service and repair fast and easy. The efficient hydraulic powered piston makes these pumps the ideal choice for factory and outdoor mobile use, even at below freezing temperatures.
  • Clean, quiet operation with no airborne contamination
  • Up to three times more energy efficient than comparable compressed air systems
  • Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
  • Reduce routine maintenance and cut repairs time in half of comparable pump lowers
  • Eliminate downtime without ice build-up

Specifications

Technical Specifications

Convert to Metric
Application Supply
Fluid Inlet Size (in) 3/4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Type NPT
Material Stainless Steel
Maximum Flow Rate (GPM) 3
Maximum Hydraulic Fluid Inlet Pressure (psi) 1000
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Working Pressure (MPa) 17.9
Maximum Working Pressure (psi) 2600
Portable Non-Portable
Standards Met ATEX, CE
Type Hydraulic Piston Pump
Wetted Material Stainless Steel
Application Supply
Fluid Inlet Size (cm) 1.905
Fluid Inlet Size (mm) 19.05
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Type NPT
Material Stainless Steel
Maximum Flow Rate (L/min) 11.36
Maximum Hydraulic Fluid Inlet Pressure (bar) 68.9
Maximum Hydraulic Fluid Inlet Pressure (kPa) 6890
Maximum Intermittent Cycle Rate (CPM) 60
Maximum Working Pressure (MPa) 17.9
Maximum Working Pressure (bar) 179
Maximum Working Pressure (kPa) 17900
Portable Non-Portable
Standards Met ATEX, CE
Type Hydraulic Piston Pump
Wetted Material Stainless Steel
