Sharpe

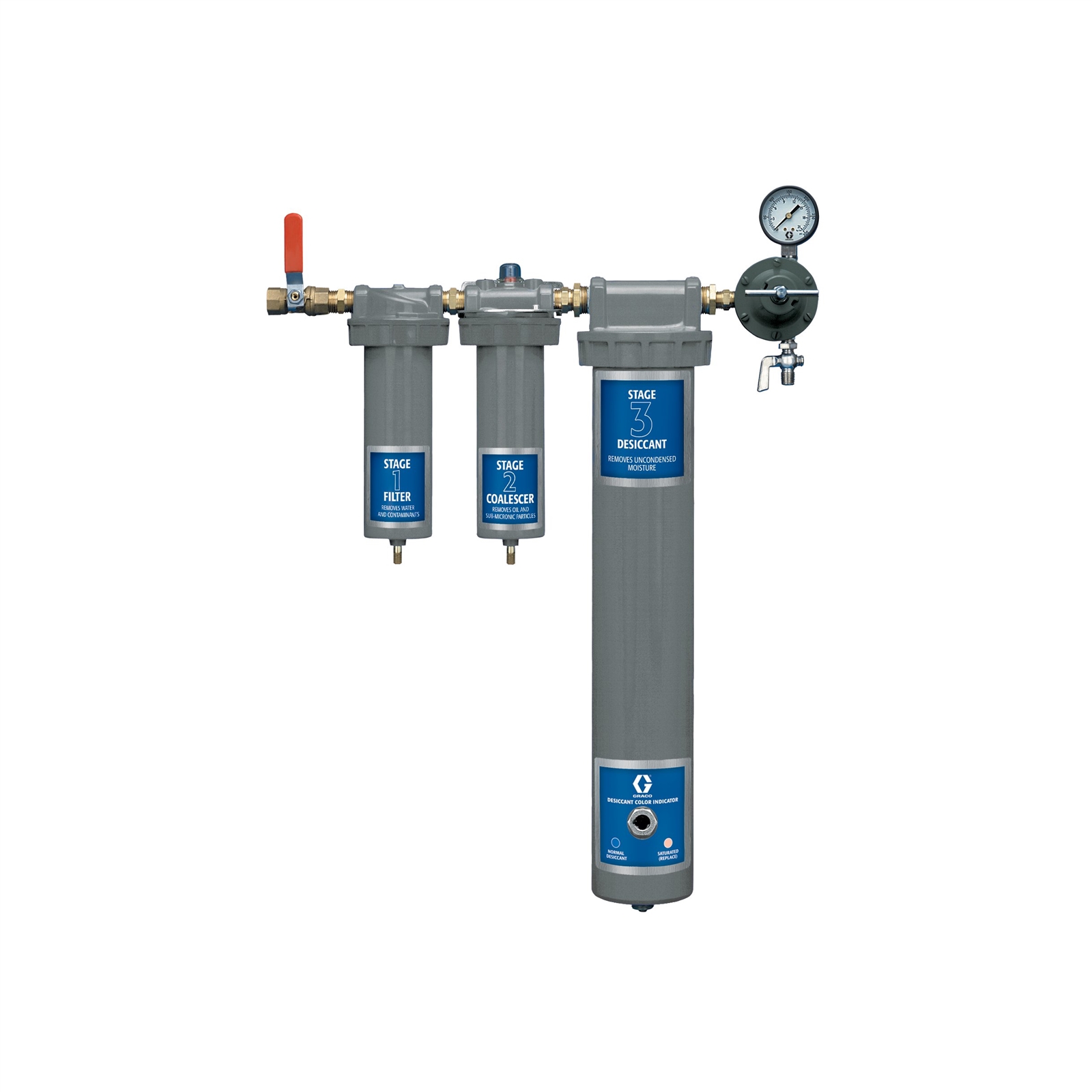

3-Stage Desiccant Drying System, 3 stage system includes: 234402, 234403 and 234404

234401

6770

Sharpe

3-Stage Desiccant Drying System, 3 stage system includes: 234402, 234403 and 234404

234401

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
  • Ensures equipment is supplied with clean, dry air
  • Multi-stage filter removes particles down to 0.01 micron
  • Desiccant removes moisture from air
  • Includes shut-off valve and pressure regulator
  • Filter and desiccant indicators signal replacement to ensure optimal efficiency

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Outlet Gender Female
Air Outlet Size (in) 1/2
Air Outlet Thread Type NPT
Includes Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Desiccant Housing, Air Regulator, Silica Gel Desiccant
Material Removed Contaminants, Oil, Particles, Water
Maximum Operating Temperature (°F) 150
Maximum Working Pressure (MPa) 1.1
Maximum Working Pressure (psi) 160
Type Desiccant Drying System
Air Inlet Size (cm) 1.27
Air Inlet Size (mm) 12.7
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Outlet Gender Female
Air Outlet Size (cm) 1.27
Air Outlet Size (mm) 12.7
Air Outlet Thread Type NPT
Includes Shut-Off Valve, Air Filter with Auto Drain, Coalescer with Auto Drain, Desiccant Housing, Air Regulator, Silica Gel Desiccant
Material Removed Contaminants, Oil, Particles, Water
Maximum Operating Temperature (°C) 65
Maximum Working Pressure (MPa) 1.1
Maximum Working Pressure (bar) 11
Maximum Working Pressure (kPa) 1100
Type Desiccant Drying System
