Fire-Ball 425

Fire-Ball® 425 10:1 Stationary Oil Pump - 55 Gallon (200 Liter) Open Drum CE Package

241054

225782_Fire_Ball_425_Package

Fire-Ball 425

Fire-Ball® 425 10:1 Stationary Oil Pump - 55 Gallon (200 Liter) Open Drum CE Package

241054

The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.

The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.

  • Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.5
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Fluid Inlet Size (in) 1.5
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT

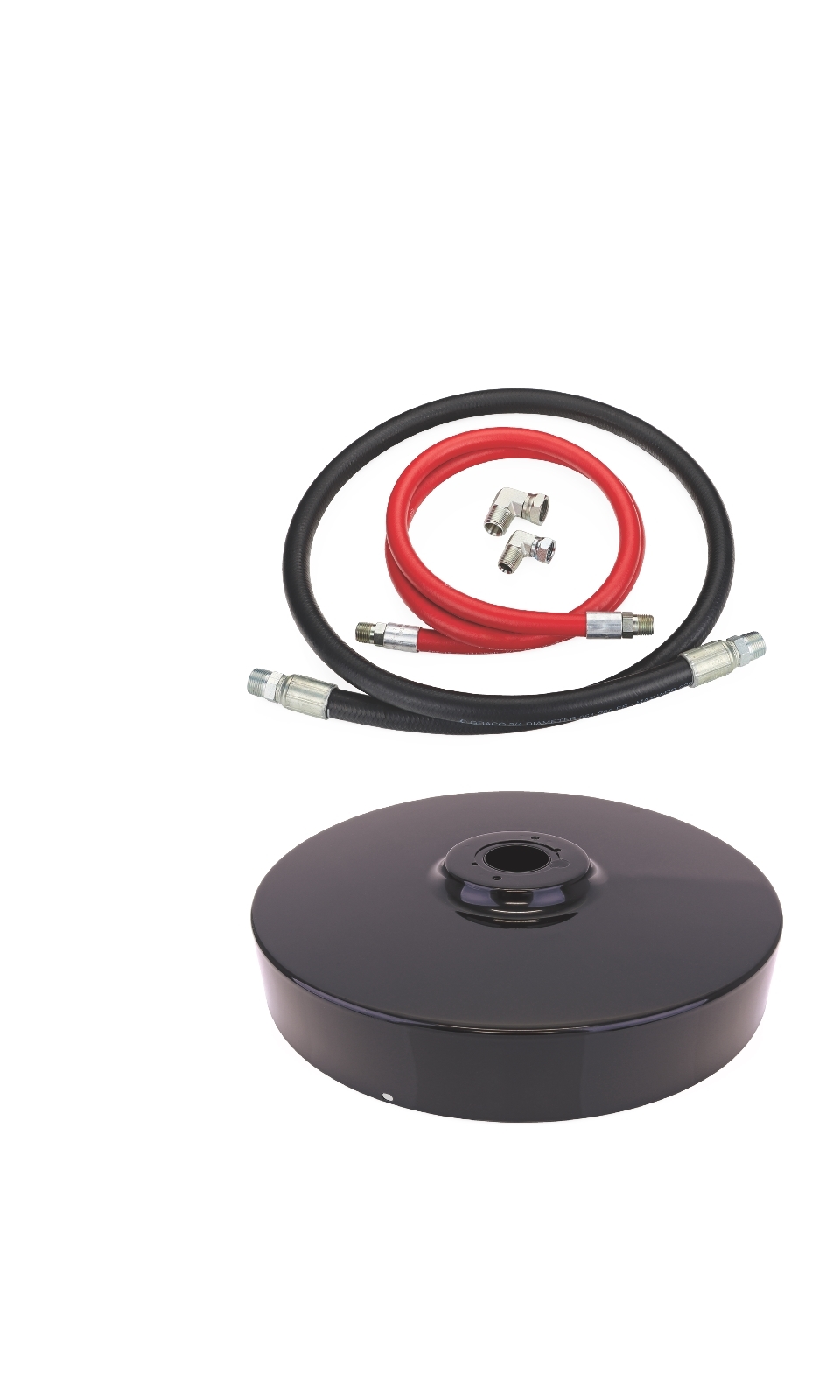

Includes Hose Kit, Drum Cover
Maximum Air Working Pressure 180
Maximum Flow Rate (gpm @ 80 cpm) 4.1
Maximum Fluid Working Pressure (psi) 1800
Maximum Working Pressure (MPa) 12.4
Maximum Working Pressure (psi) 1800
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 10:1
Pump Weight (lb) 28.7
Series 425
Type Piston Pump Package
Wetted Material Steel, Polyurethane, Aluminum, Nitrile
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Fluid Inlet Size (cm) 3.8100
Fluid Inlet Size (mm) 38.1000
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.905
Fluid Outlet Size (mm) 19.05
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Hose Kit, Drum Cover
Maximum Air Working Pressure 180
Maximum Flow Rate (gpm @ 80 cpm) 4.1
Maximum Working Pressure (MPa) 12.4
Maximum Working Pressure (bar) 124
Maximum Working Pressure (kPa) 12400
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 10:1
Series 425
Type Piston Pump Package
Wetted Material Steel, Polyurethane, Aluminum, Nitrile

Recommended Accessories

18404

Air Regulator, 1/2(f) inlet/outlet, 0-250 psi (0-17 bar), zinc plated
