Fire-Ball 300

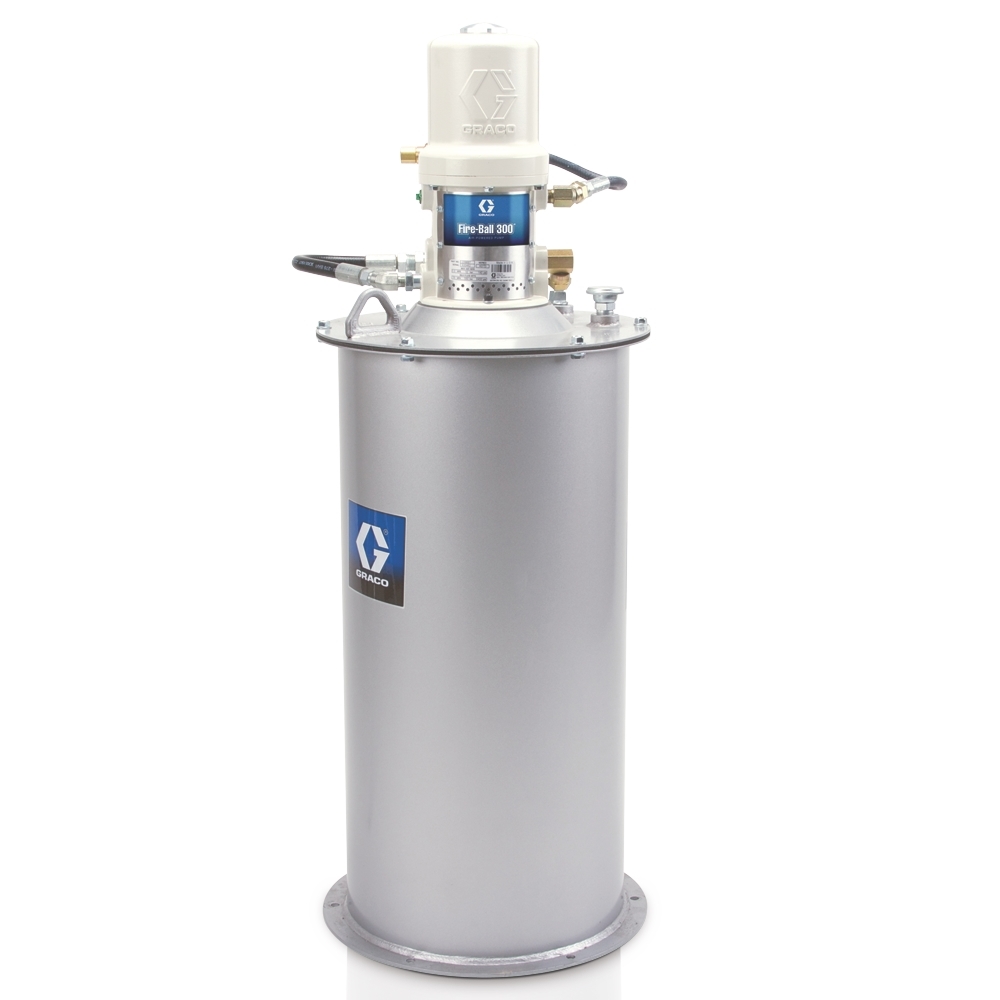

Fire-Ball® 300 50:1 Pump Module, 90 lb (41 kg). Reservoir, Vent Valve

241573

241573_FB_90lb_FF

Fire-Ball 300

Fire-Ball® 300 50:1 Pump Module, 90 lb (41 kg). Reservoir, Vent Valve

241573

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

For air powered, Off-Road Mobile Lubrication Systems.

  • Fireball 300, 50:1 90 lb (41 kg) pump module

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Outlet Size (in) 0.5
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPSM
IP Rating IP69K
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (psi) 3500
Minimum cST Grade (cST) 40
Overall Height (in) 37.75
Overall Width (in) 12.75
Power Type Pneumatic
Type Pneumatic Piston Pump
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Outlet Size (cm) 1.2700
Fluid Outlet Size (mm) 12.7000
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPSM
IP Rating IP69K
Maximum Working Pressure (MPa) 24.1
Maximum Working Pressure (bar) 241
Maximum Working Pressure (kPa) 24100
Minimum cST Grade (cST) 40
Overall Height (cm) 95.9
Overall Height (mm) 959
Overall Width (cm) 32.4
Overall Width (mm) 324
Power Type Pneumatic
Type Pneumatic Piston Pump
