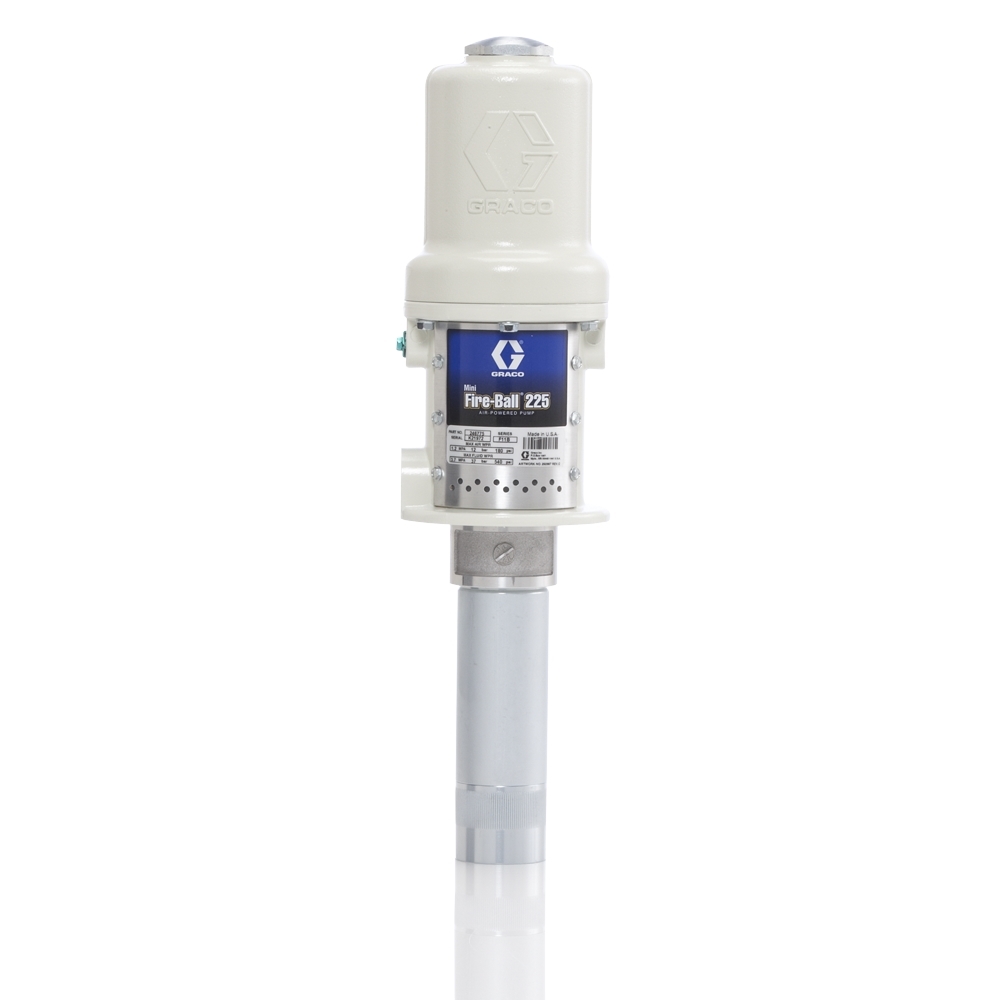

248230_Mini_Fire_Ball_225_Package

Mini Fire-Ball 225

Mini Fire-Ball® 225 3:1 Universal Pump

248230

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 3:1 is perfect for medium pressure, low volume oil applications.

  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 3/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Air Motor Effective Diameter (in) 2.25
Application Industrial
Compatible Material Oil
Cycles Per Gallon 43.5
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1/2
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With Petroleum- and synthetic-based oils (motor, gear and ATF)
Includes Hose Installation Kit
Maximum Air Consumption (SCFM) 20
Maximum Air Inlet Pressure (psi) 180
Maximum Continuous Cycle Rate (CPM) 100
Maximum Working Pressure (MPa) 3.7
Maximum Working Pressure (psi) 540
Power Type Pneumatic
Pump Ratio 3:1
Sound Power Level (dB(A)) 85.6
Sound Pressure Level (dB(A)) 77.8
Type Pneumatic Piston Pump
Weight (lb) 16
Wetted Material Steel, Aluminum, Polyurethane, Buna-N
Air Inlet Size (cm) 0.9525
Air Inlet Size (mm) 9.525
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Oil
Cycles Per Gallon 43.5
Fluid Inlet Size (cm) 3.81
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 1.27
Fluid Outlet Size (mm) 12.7
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
For Use With Petroleum- and synthetic-based oils (motor, gear and ATF)
Includes Hose Installation Kit
Maximum Air Inlet Pressure (bar) 12.41
Maximum Air Inlet Pressure (kPa) 1241
Maximum Continuous Cycle Rate (CPM) 100
Maximum Working Pressure (MPa) 3.7
Maximum Working Pressure (bar) 37
Maximum Working Pressure (kPa) 3700
Power Type Pneumatic
Pump Ratio 3:1
Sound Power Level (dB(A)) 85.6
Sound Pressure Level (dB(A)) 77.8
Type Pneumatic Piston Pump
Weight (kg) 0.7264
Wetted Material Steel, Aluminum, Polyurethane, Buna-N
