G15 Air-Assist Carbide Gun for low to medium viscosity materials

Name: G15 Air-Assist Carbide Gun for low to medium viscosity materials
Brand: Graco
SKU: 24C853

24C853

G15

G15 Air-Assist Carbide Gun for low to medium viscosity materials

24C853

Designed to maximize efficiency and quality, G15 and G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.

Find a Distributor Request a Quote

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

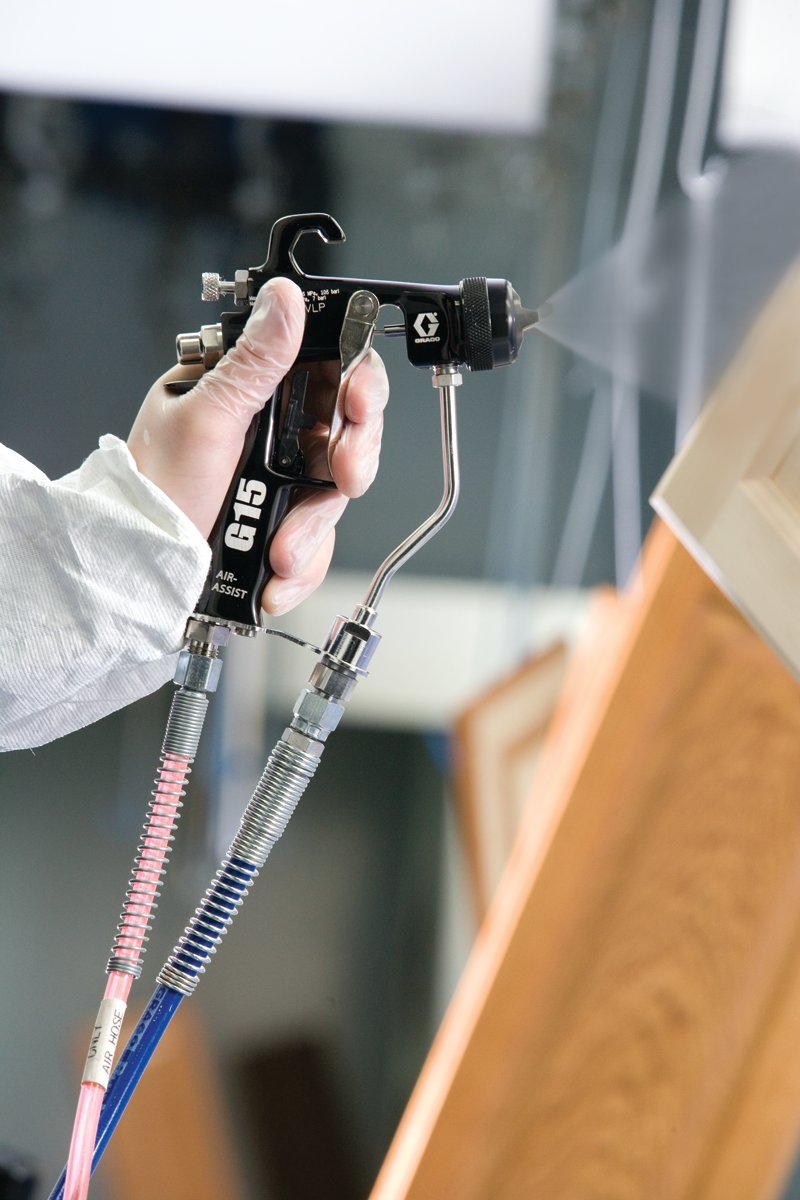

High quality air-assisted spraying in a variety of applications
All tips have a ring to retain the tip in the aircap
Designed to minimize wear of replacement parts
Improving transfer efficiency and material usage
Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

Product Brochure

Specifications

Technical Specifications

Convert to Metric

Air Inlet Size (in)	1/4
Air Inlet Thread Gender	Male
Air Inlet Thread Type	NPSM
Applicator Type	Manual
Bleed Type	Non-Bleeder
Compatible Material	Acid Catalyzed, Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne
Feed Type	Pressure Feed
Fluid Inlet Size (in)	1/4
Fluid Inlet Thread Type	NPSM
Gun Activation	Manual
Gun Included	1
Gun Type	Air-Assisted Gun
Gun Weight (lb)	1
Gun Weight (oz)	16
Includes	Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa)	0.7
Maximum Air Inlet Pressure (psi)	100
Maximum Air Pressure (MPa)	0.7
Maximum Air Pressure (psi)	100
Maximum Fluid Pressure (MPa)	10
Maximum Fluid Pressure (psi)	1500
Maximum Fluid Temperature (°F)	110
Model	G15
Overall Height (in)	8
Overall Length (in)	6.1
Product Type	Spray Gun
Sound Power Level (dB(A))	89.9
Sound Pressure Level (dB(A))	80
Spray Pattern	Flat
Spray Type	Air-Assisted
Technology Type	N/A
Trigger Lock	Locking
Trigger Type	Two-Finger
Type	Spray Gun
Wetted Parts	Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
Air Inlet Size (cm)	0.635
Air Inlet Size (mm)	6.35
Air Inlet Thread Gender	Male
Air Inlet Thread Type	NPSM
Applicator Type	Manual
Bleed Type	Non-Bleeder
Compatible Material	Acid Catalyzed, Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne
Feed Type	Pressure Feed
Fluid Inlet Size (cm)	0.635
Fluid Inlet Size (mm)	6.35
Fluid Inlet Thread Type	NPSM
Gun Activation	Manual
Gun Included	1
Gun Type	Air-Assisted Gun
Gun Weight (g)	450
Gun Weight (kg)	0.45
Includes	Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa)	0.7
Maximum Air Inlet Pressure (bar)	7
Maximum Air Inlet Pressure (kPa)	700
Maximum Air Pressure (MPa)	0.7
Maximum Air Pressure (bar)	7
Maximum Air Pressure (kPa)	700
Maximum Fluid Pressure (MPa)	10
Maximum Fluid Pressure (bar)	105
Maximum Fluid Pressure (kPa)	10500
Maximum Fluid Temperature (°C)	43
Model	G15
Overall Height (cm)	20.3
Overall Height (mm)	203
Overall Length (cm)	15.5
Overall Length (mm)	155
Product Type	Spray Gun
Sound Power Level (dB(A))	89.9
Sound Pressure Level (dB(A))	80
Spray Pattern	Flat
Spray Type	Air-Assisted
Technology Type	N/A
Trigger Lock	Locking
Trigger Type	Two-Finger
Type	Spray Gun
Wetted Parts	Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer

Product Manuals

3A0149G, Manual, G15/G40 Spray Gun, Instructions/Parts, English (2 MB)

311001H, Manual, G15 and G40 AA Series Spray Guns, Instructions-Parts, U.S. English (1 MB)

Repair Parts

Part No.	Description
LTX109	RAC X SwitchTip, 109
LTX219	RAC X SwitchTip, 219
LTX225	RAC X SwitchTip, 225
LTX231	RAC X SwitchTip, 231
LTX235	RAC X SwitchTip, 235
LTX321	RAC X SwitchTip, 321
LTX419	RAC X SwitchTip, 419
LTX421	RAC X SwitchTip, 421
LTX423	RAC X SwitchTip, 423
LTX425	RAC X SwitchTip, 425
LTX427	RAC X SwitchTip, 427
LTX433	RAC X SwitchTip, 433
LTX513	RAC X SwitchTip, 513
LTX515	RAC X SwitchTip, 515
LTX517	RAC X SwitchTip, 517
LTX523	RAC X SwitchTip, 523
LTX611	RAC X SwitchTip, 611
LTX619	RAC X SwitchTip, 619
LTX621	RAC X SwitchTip, 621
LTX623	RAC X SwitchTip, 623
LTX627	RAC X SwitchTip, 627
LTX629	RAC X SwitchTip, 629
LTX729	RAC X SwitchTip, 729
LTX821	RAC X SwitchTip, 821
LTX827	RAC X SwitchTip, 827
LTX831	RAC X SwitchTip, 831
FFT512	FFT Fine Finish RAC Spray Tips, 0.012 inch (0.305 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
FFT612	FFT Fine Finish RAC Spray Tips, 0.012 inch (0.305 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
WR1221	RAC X WideRAC SwitchTip, 1221
WR1235	RAC X WideRAC SwitchTip, 1235
241812	Fluid Hose, 3500 psi (242 bar) MWP, 1/4-18 npsm(fbe), 3/16 in (5 mm) ID, 25 ft (7.62 m) long, nylon tubing w/ polyurethane cover
15C161	Ultimate Gun Cleaning Kit
LTX213	RAC X SwitchTip, 213
LTX413	RAC X SwitchTip, 413
LTX417	RAC X SwitchTip, 417
LTX521	RAC X SwitchTip, 521
LTX613	RAC X SwitchTip, 613
LTX615	RAC X SwitchTip, 615
LTX835	RAC X SwitchTip, 835
FFT414	FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
WR1225	RAC X WideRAC SwitchTip, 1225
248936	Acetal RAC Gasket, 5 pack
LTX309	RAC X SwitchTip, 309
LTX509	RAC X SwitchTip, 509
LTX511	RAC X SwitchTip, 511
LTX519	RAC X SwitchTip, 519
LTX529	RAC X SwitchTip, 529
LTX617	RAC X SwitchTip, 617
WR1227	RAC X WideRAC SwitchTip, 1227
LTX215	RAC X SwitchTip, 215
LTX217	RAC X SwitchTip, 217
LTX313	RAC X SwitchTip, 313
LTX327	RAC X SwitchTip, 327
LTX329	RAC X SwitchTip, 329
LTX335	RAC X SwitchTip, 335
LTX531	RAC X SwitchTip, 531
LTX533	RAC X SwitchTip, 533
LTX631	RAC X SwitchTip, 631
LTX633	RAC X SwitchTip, 633
LTX819	RAC X SwitchTip, 819
WR1231	RAC X WideRAC SwitchTip, 1231
WR1233	RAC X WideRAC SwitchTip, 1233
WR1237	RAC X WideRAC SwitchTip, 1237
189018	Fluid swivel connector
246453	RAC X One Seal, 5 pack
LTX115	RAC X SwitchTip, 115
LTX227	RAC X SwitchTip, 227
LTX409	RAC X SwitchTip, 409
LTX429	RAC X SwitchTip, 429
LTX431	RAC X SwitchTip, 431
LTX527	RAC X SwitchTip, 527
LTX625	RAC X SwitchTip, 625
LTX721	RAC X SwitchTip, 721
LTX833	RAC X SwitchTip, 833
FFT510	FFT Fine Finish RAC Spray Tips, 0.010 inch (0.254 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
FFT614	FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
WR1223	RAC X WideRAC SwitchTip, 1223
LTX209	RAC X SwitchTip, 209
LTX311	RAC X SwitchTip, 311
LTX317	RAC X SwitchTip, 317
LTX323	RAC X SwitchTip, 323
LTX325	RAC X SwitchTip, 325
LTX331	RAC X SwitchTip, 331
LTX411	RAC X SwitchTip, 411
LTX415	RAC X SwitchTip, 415
LTX435	RAC X SwitchTip, 435
LTX723	RAC X SwitchTip, 723
LTX735	RAC X SwitchTip, 735
LTX817	RAC X SwitchTip, 817
FFT514	FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
WR1229	RAC X WideRAC SwitchTip, 1229
WR1239	RAC X WideRAC SwitchTip, 1239
238694	High Pressure Fluid Ball Valve, 5000 psi (350 bar) maximum working pressure, 3/8 npt(mbe)
LTX111	RAC X SwitchTip, 111
LTX211	RAC X SwitchTip, 211
LTX221	RAC X SwitchTip, 221
LTX315	RAC X SwitchTip, 315
LTX319	RAC X SwitchTip, 319
LTX525	RAC X SwitchTip, 525
LTX535	RAC X SwitchTip, 535
LTX635	RAC X SwitchTip, 635
FFT214	FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 4-6 inches (100-150 mm) Fan Width
FFT314	FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 6-8 inches (150-200 mm) Fan Width
224453	Fluid Filter Kit, 5 pack, 100 mesh (.005 gap spacing) replacement fluid filters
238563	Spray Tip Filter, 3 pack, 0.009 in (equivalent to 60 mesh screen) to prevent particles from ruining sprayed surface smoothness
111265	Non-silicone lubricant, 4 oz (113g)
