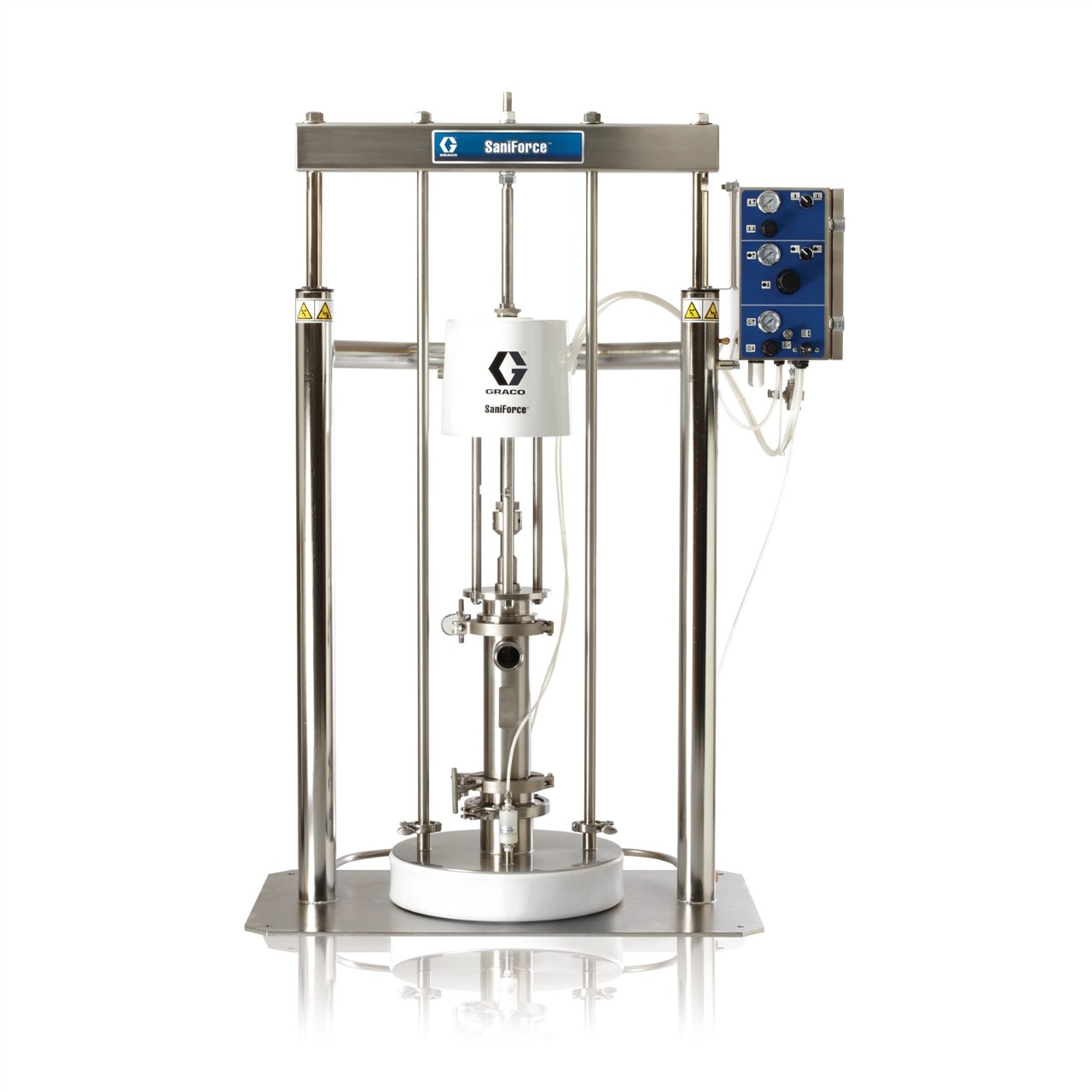

SaniForce 12:1 Stainless Steel Drum Unloader Piston Pump Package with Enclosed Stainless Steel Controls
Part Number: 24D653
SaniForce
SaniForce 12:1 Stainless Steel Drum Unloader Piston Pump Package with Enclosed Stainless Steel Controls
Part Number: 24D653
The SaniForce 12:1 Sanitary Drum Unloader features an on-demand workflow capability and can be taken apart quickly for applications that require frequent sanitation. Ideal for materials up to 1,000,000 cps when used with a priming piston.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The SaniForce 12:1 Sanitary Drum Unloader features an on-demand workflow capability and can be taken apart quickly for applications that require frequent sanitation. Ideal for materials up to 1,000,000 cps when used with a priming piston.
Quick Knockdown Pump for Sanitary Applications
SaniForce 12:1 Sanitary Drum Unloader:
- Evacuation rates of up to 8.5 gpm (32 lpm), running at 60 cpm
- 1,200 psi (83 bar, 8.3 MPa), outlet pressure
- One size follower plate and seal to accommodate straight-sided and tapered drums
- Sanitary flange clamps for quick disassembly
- Available in priming piston version for pumping materials up to 1,000,000 cps, from 55 gallon (208 liter) containers, without diluting the material
- Suitable to pump products such as: fruit paste, heavy peanut butter, caramel, corn syrup, creamy candy filling, tomato paste and cosmetics
Wiper seal:
- FDA-compliant neoprene inflatable ram plate seal
- Faster change-out of empty containers
- Liner guard prevents bags from entering pump
- Evacuation rates up to 99%
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Sanitary |
|---|---|
| Compatible Drum Height (in) | 40.75 |
| Compatible Drum Inside Diameter (in) | 24 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Enclosed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Fluid Pressure (psi) | 1450 |
| Maximum Height (ft) | 9 |
| Maximum Height (in) | 108 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (psi) | 1450 |
| Minimum Height (ft) | 5.66 |
| Minimum Height (in) | 67.92 |
| Model | SaniForce |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Pump Ratio | 12:1 |
| Pump Type | Priming Piston |
| Ram Material | Stainless Steel |
| Type | Drum Unloader |
| Weight (lb) | 454 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Acetal, Nitrile, PTFE, UHMWPE |
| Application | Sanitary |
| Compatible Drum Height (cm) | 103.505 |
| Compatible Drum Height (mm) | 1035.05 |
| Compatible Drum Inside Diameter (cm) | 60.96 |
| Compatible Drum Inside Diameter (mm) | 609.6 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Enclosed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (kg/cm²) | 7.03 |
| Maximum Flow Rate (L/min) | 32.2 |
| Maximum Fluid Pressure (bar) | 100.0 |
| Maximum Fluid Pressure (kPa) | 10000 |
| Maximum Height (cm) | 274.32 |
| Maximum Height (m) | 2.75 |
| Maximum Height (mm) | 2743 |
| Maximum Viscosity (cP) | 1000000 |
| Maximum Working Pressure (MPa) | 10 |
| Maximum Working Pressure (bar) | 100 |
| Maximum Working Pressure (kPa) | 10000 |
| Minimum Height (cm) | 172.52 |
| Minimum Height (m) | 1.73 |
| Minimum Height (mm) | 1725.1680 |
| Model | SaniForce |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
| Pump Ratio | 12:1 |
| Pump Type | Priming Piston |
| Ram Material | Stainless Steel |
| Type | Drum Unloader |
| Weight (kg) | 205.9 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Acetal, Nitrile, PTFE, UHMWPE |
