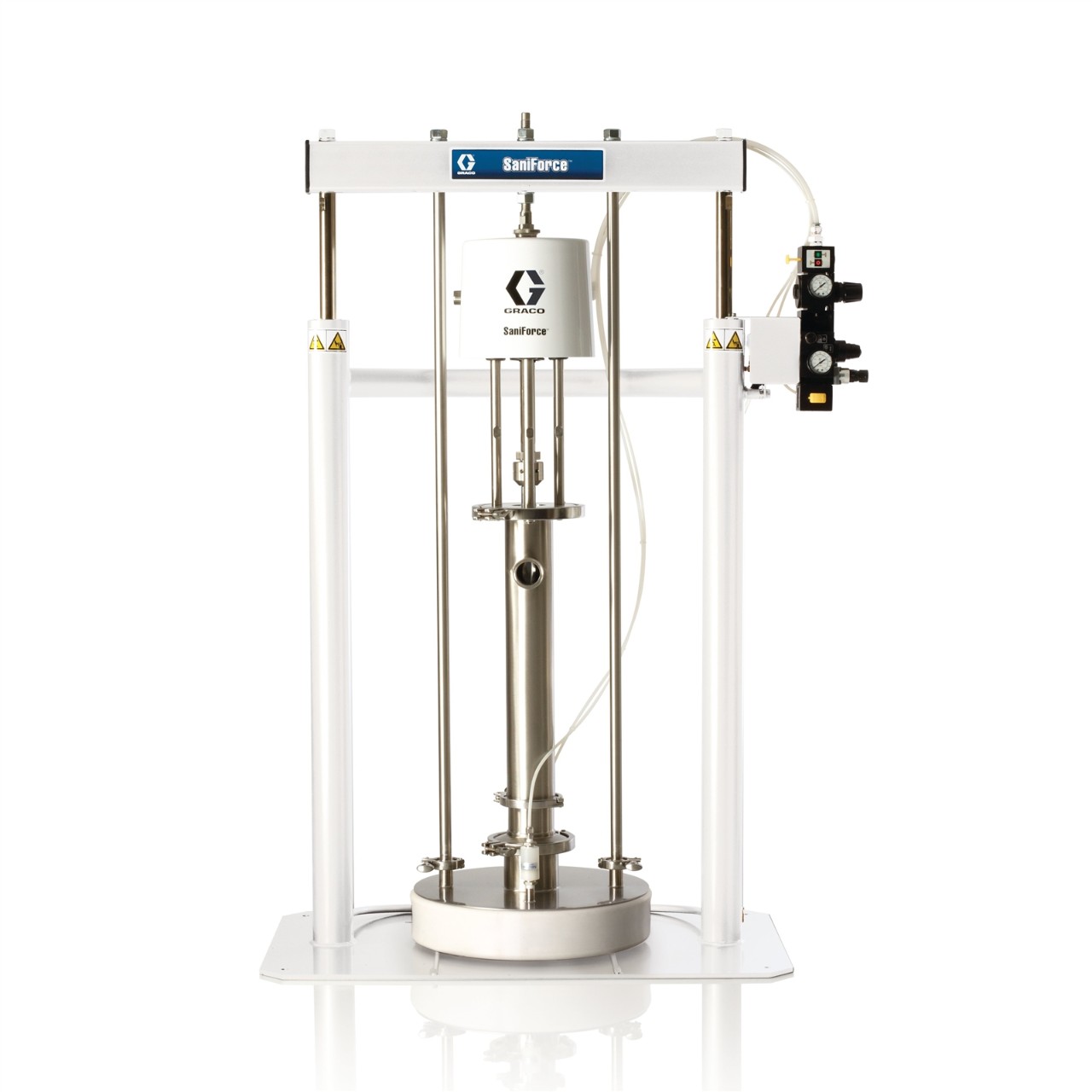

SaniForce 5:1 Carbon Steel Drum Unloader Priming Piston Pump Package
Part Number: 24D712
SaniForce
SaniForce 5:1 Carbon Steel Drum Unloader Priming Piston Pump Package
Part Number: 24D712
The SaniForce 5:1 Sanitary Drum Unloader features an on-demand workflow capability and can also be taken apart quickly for applications that require frequent sanitation. Available in double ball and priming piston designs for additional system flexibility.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The SaniForce 5:1 Sanitary Drum Unloader features an on-demand workflow capability and can also be taken apart quickly for applications that require frequent sanitation. Available in double ball and priming piston designs for additional system flexibility.
Quick Knockdown Pump for Sanitary Applications
SaniForce 5:1 Sanitary Drum Unloader:
- Evacuation rates up to 14 gpm (53 lpm), running at 60 cpm
- 400 psi (28 bar, 2.8 MPa), outlet pressure
- One size follower plate and seal to accommodate straight-sided and tapered drums
- Sanitary flange clamps for quick disassembly
- Unloading of somewhat flowable to moderately flowable fluids, from the original 55 gallon (208 liter) containers without diluting the material
- Suitable to pump products such as: jam and jelly, icing and frosting, soft peanut butter, heavy chocolate, tomato paste, corn syrup, toothpaste and cosmetics
Wiper seal:
- FDA-compliant neoprene inflatable ram plate seal
- Faster change-out of empty containers
- Liner guard prevents bags from entering pump
- Evacuation rates up to 99%
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Drum Height (in) | 40.75 |
|---|---|
| Compatible Drum Inside Diameter (in) | 24 |
| Control Panel Material | Carbon Steel |
| Control Panel Type | Exposed |
| Finish/Coating | Painted |
| Frame Material | Carbon Steel |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 14 |
| Maximum Fluid Pressure (psi) | 410 |
| Maximum Height (ft) | 9 |
| Maximum Height (in) | 108 |
| Maximum Viscosity (cP) | 750000 |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (psi) | 410 |
| Minimum Height (ft) | 5.66 |
| Minimum Height (in) | 67.92 |
| Model | SaniForce |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Pump Ratio | 5:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Type | Drum Unloader |
| Weight (lb) | 433 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, FKM, PTFE, UHMWPE, Nylon |
| Compatible Drum Height (cm) | 103.505 |
| Compatible Drum Height (mm) | 1035.05 |
| Compatible Drum Inside Diameter (cm) | 60.96 |
| Compatible Drum Inside Diameter (mm) | 609.6 |
| Control Panel Material | Carbon Steel |
| Control Panel Type | Exposed |
| Finish/Coating | Painted |
| Frame Material | Carbon Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Air Inlet Pressure (kg/cm²) | 7.03 |
| Maximum Flow Rate (L/min) | 53 |
| Maximum Fluid Pressure (bar) | 28.3 |
| Maximum Fluid Pressure (kPa) | 2830 |
| Maximum Height (cm) | 274.32 |
| Maximum Height (m) | 2.75 |
| Maximum Height (mm) | 2743 |
| Maximum Viscosity (cP) | 750000 |
| Maximum Working Pressure (MPa) | 2.8 |
| Maximum Working Pressure (bar) | 28.3 |
| Maximum Working Pressure (kPa) | 2830 |
| Minimum Height (cm) | 172.52 |
| Minimum Height (m) | 1.73 |
| Minimum Height (mm) | 1725.1680 |
| Model | SaniForce |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
| Pump Ratio | 5:1 |
| Pump Type | Priming Piston |
| Ram Material | Carbon Steel |
| Type | Drum Unloader |
| Weight (kg) | 196.4 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, FKM, PTFE, UHMWPE, Nylon |
