SaniForce 3150

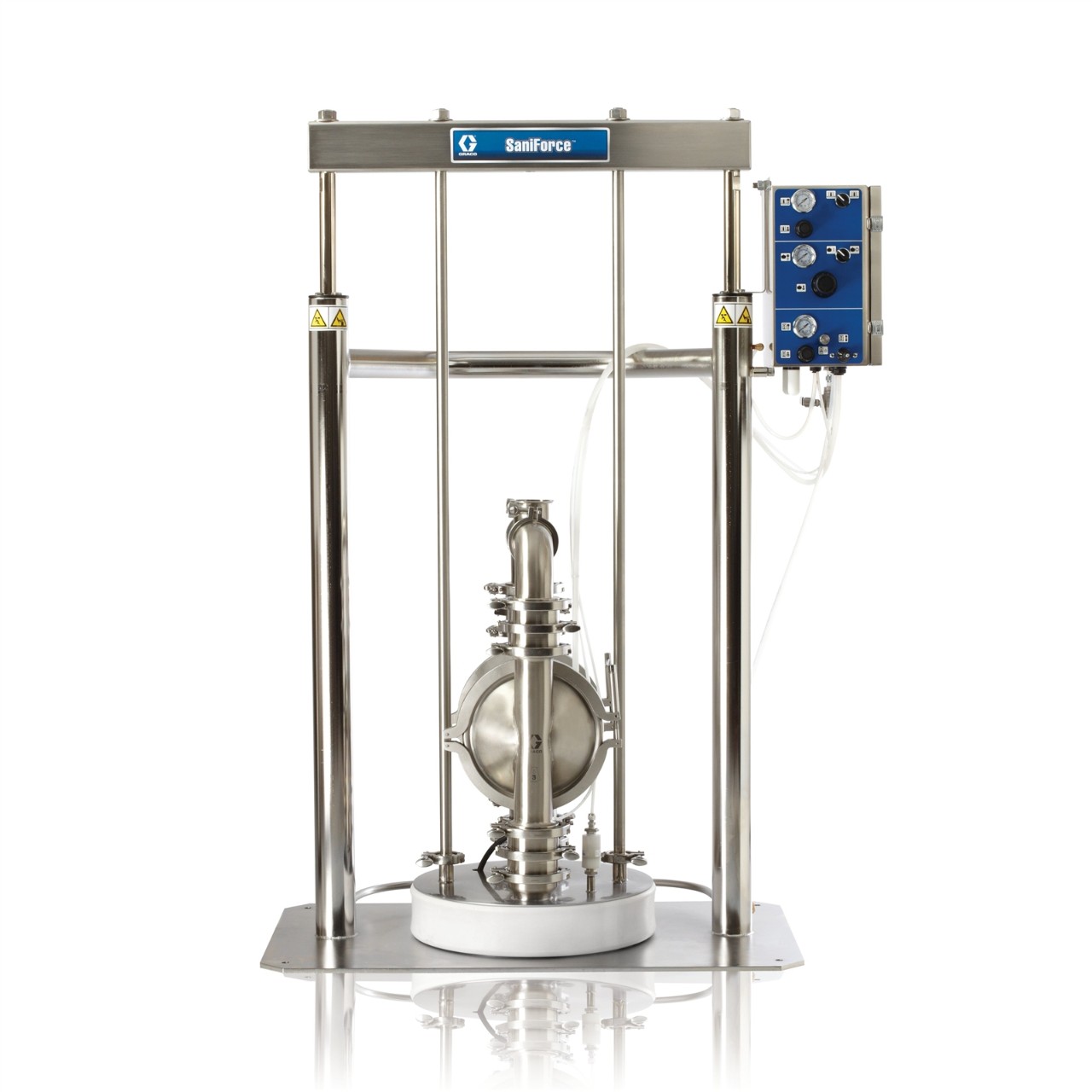

SaniForce 3150 Stainless Steel Drum Unloader Ball Pump Package with Enclosed Stainless Steel Controls & PTFE/EPDM Diaphragm
Part Number: 24J366
SaniForce 3150
SaniForce 3150 Stainless Steel Drum Unloader Ball Pump Package with Enclosed Stainless Steel Controls & PTFE/EPDM Diaphragm
Part Number: 24J366
Standard with an inflatable ram plate seal, the SaniForce 3150 HS Sanitary Drum Unloader allows for quick replacement of the empty container and delivers up to a 99% evacuation rate - without diluting the material.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Standard with an inflatable ram plate seal, the SaniForce 3150 HS Sanitary Drum Unloader allows for quick replacement of the empty container and delivers up to a 99% evacuation rate - without diluting the material.
SaniForce 3150 HS Drum Unloader
- Stainless steel fluid ends meet a 32 Ra finish and can be disassembled in 5 minutes or less
- Flow rates up to 100 gpm (378 lpm)
- Fluid contact areas are all FDA-compliant and meet CFR Title 21
- One size follower plate and seal to accommodate straight-sided and tapered drums
- Evacuate barely flowable products from their original 55 gallon (208 liter) containers without diluting the material
- Suitable to pump products such as: fruit filling, tomato paste, light peanut butter, icing, frosting, lotions and heavier ointments
Inflatable Wiper Seal:
- FDA-compliant neoprene inflatable ram plate seal
- Faster change-out of empty containers
- Liner guard prevents bags from entering pump
- Evacuation rates up to 99%
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Drum Height (in) | 40.75 |
|---|---|
| Compatible Drum Inside Diameter (in) | 24 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Exposed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Flow Rate (GPM) | 60 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Height (ft) | 9 |
| Maximum Height (in) | 108 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (psi) | 120 |
| Minimum Height (ft) | 5.66 |
| Minimum Height (in) | 67.92 |
| Model | SaniForce |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Pump Ratio | 1:1 |
| Pump Type | Diaphragm |
| Ram Material | Stainless Steel |
| Series | 3150 |
| Standards Met | FDA Compliant Materials |
| Type | Drum Unloader |
| Weight (lb) | 428 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Santoprene, Fluoroelastomer, EPDM, CR, Polychloroprene, PTFE |
| Compatible Drum Height (cm) | 103.505 |
| Compatible Drum Height (in) | 40.75 |
| Compatible Drum Height (mm) | 1035.05 |
| Compatible Drum Inside Diameter (cm) | 60.96 |
| Compatible Drum Inside Diameter (in) | 24 |
| Compatible Drum Inside Diameter (mm) | 609.6 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Exposed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 8.27 |
| Maximum Air Inlet Pressure (kPa) | 827 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.44 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Flow Rate (L/min) | 227.1 |
| Maximum Fluid Pressure (bar) | 8.2 |
| Maximum Fluid Pressure (kPa) | 820 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Height (cm) | 274.32 |
| Maximum Height (m) | 2.75 |
| Maximum Height (mm) | 2743 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (bar) | 8.2 |
| Maximum Working Pressure (kPa) | 820 |
| Maximum Working Pressure (psi) | 120 |
| Minimum Height (cm) | 172.52 |
| Minimum Height (m) | 1.73 |
| Minimum Height (mm) | 1725.1680 |
| Model | SaniForce |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
| Pump Ratio | 1:1 |
| Pump Type | Diaphragm |
| Ram Material | Stainless Steel |
| Series | 3150 |
| Standards Met | FDA Compliant Materials |
| Type | Drum Unloader |
| Weight (kg) | 194.1 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Santoprene, Fluoroelastomer, EPDM, CR, Polychloroprene, PTFE |
