VPM 12

VPM-12V 400V 3-ph 50/60Hz 55A CE Variable Ratio Metering System for Paste, Adhesives, and other High-Viscosity Materials

24J511

vpm-metering-system-right

VPM 12

VPM-12V 400V 3-ph 50/60Hz 55A CE Variable Ratio Metering System for Paste, Adhesives, and other High-Viscosity Materials

24J511

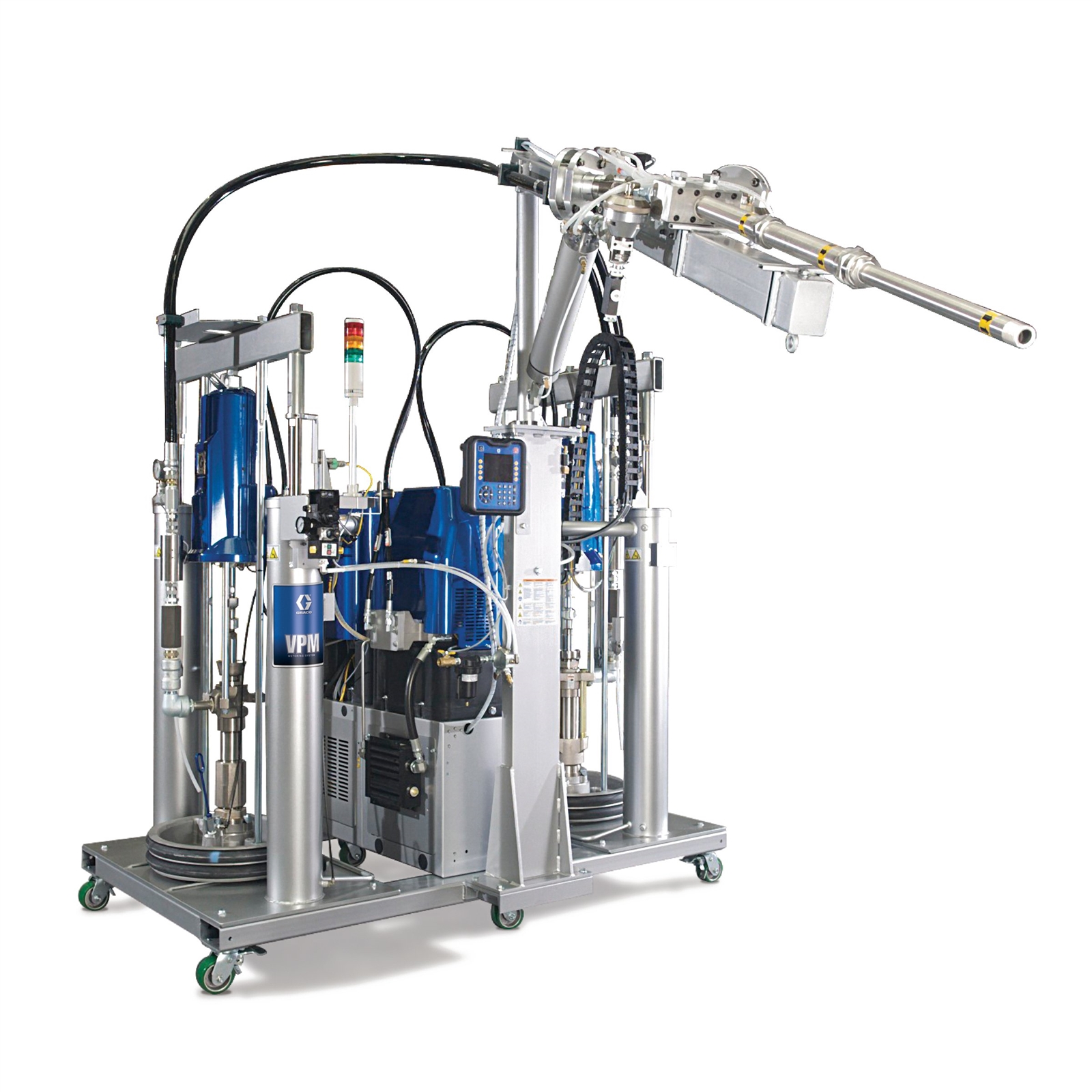

The Graco VPM Metering System is a hydraulic variable ratio metering system that uses positive displacement pumps to dispense tooling pastes, adhesives and other high-viscosity materials.

Features

The Graco VPM Metering System is a hydraulic variable ratio metering system that uses positive displacement pumps to dispense tooling pastes, adhesives and other high-viscosity materials.

Variable Ratio Metering System for Paste, Adhesives, and other High-Viscosity Materials

  • High flow rates

    • Speeds production with high-volume dispensing
    • Delivers accurate continuous material flow and shot dispensing as well
    • Up to 55 lb (25 kg) per minute
  • Ratio assurance

    • Accurate, on-ratio mixing results in better yield, less material waste, less scrap
    • Ratio accuracies better than +2 percent
  • Variable ratio

    • Allows you to change ratios on the fly
    • Easy to program the exact output of A and B materials
    • Ratio range: 1:1 to 5:1
  • Features

    • Programmable shot sizes and sequencing – up to 100 different shot sizes and five sequences of 20 positions each
    • Easy configuration of integrated temperature controls
    • Immediate access to error/event history
    • Material usage and pump cycle counter
    • Simple interface for machine calibration
    • USB interface

Specifications

Technical Specifications

Convert to Metric
Maximum Flow Rate (lb/min) 26
Maximum Fluid Temperature (°F) 70
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (psi) 3000
Type Metering System
Maximum Flow Rate (kg/min) 11.79
Maximum Fluid Temperature (°C) 21
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Type Metering System
