WB3000

WB3000 Waterborne Iso Enclosure, Smart Pro Xp60 ES AA WB Gun, Grounded Air/Unshielded WB Fluid Hoses, FM Approved & Compliant

24P632

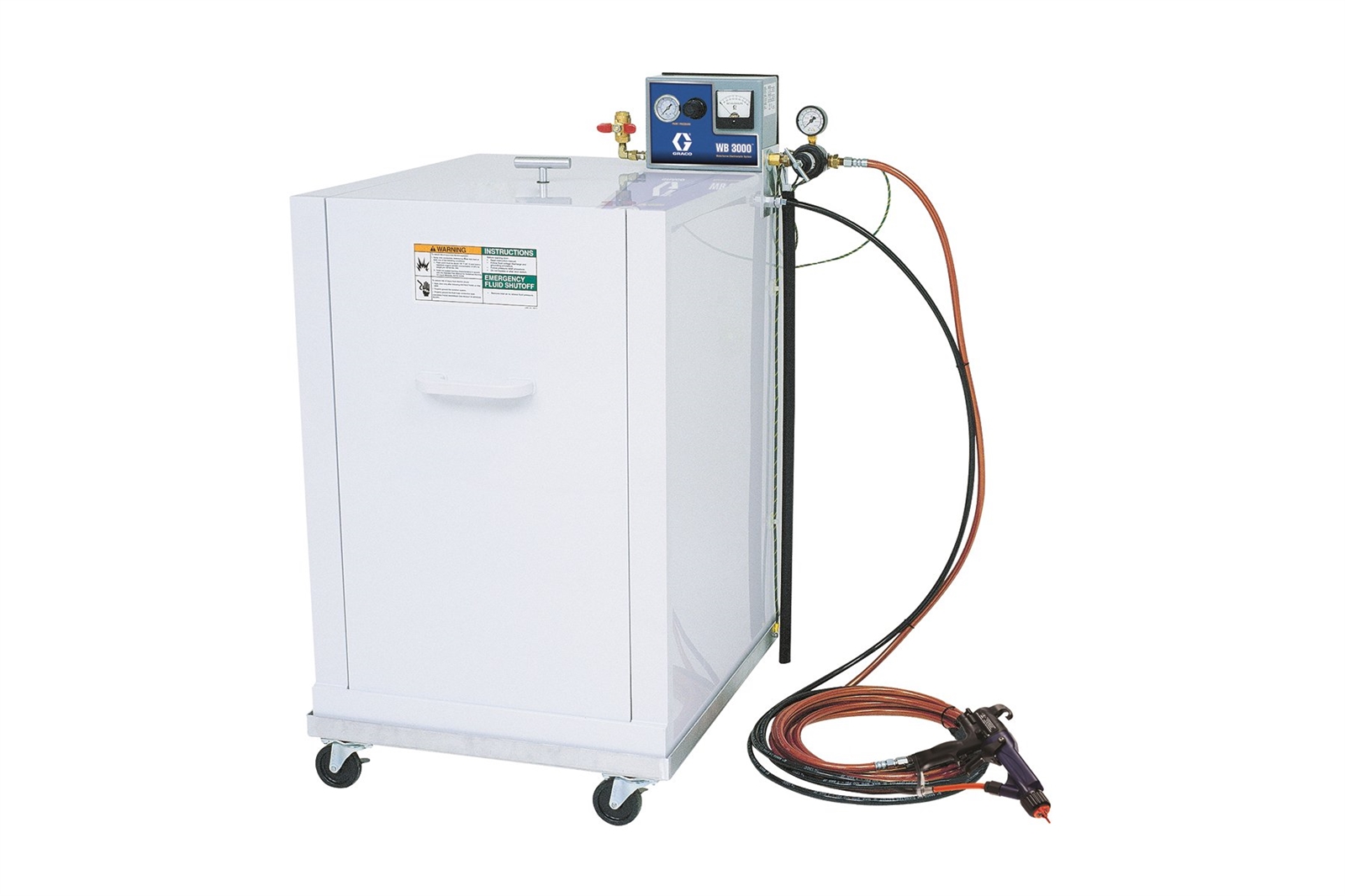

Graco's WB3000 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Graco's WB3000 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.

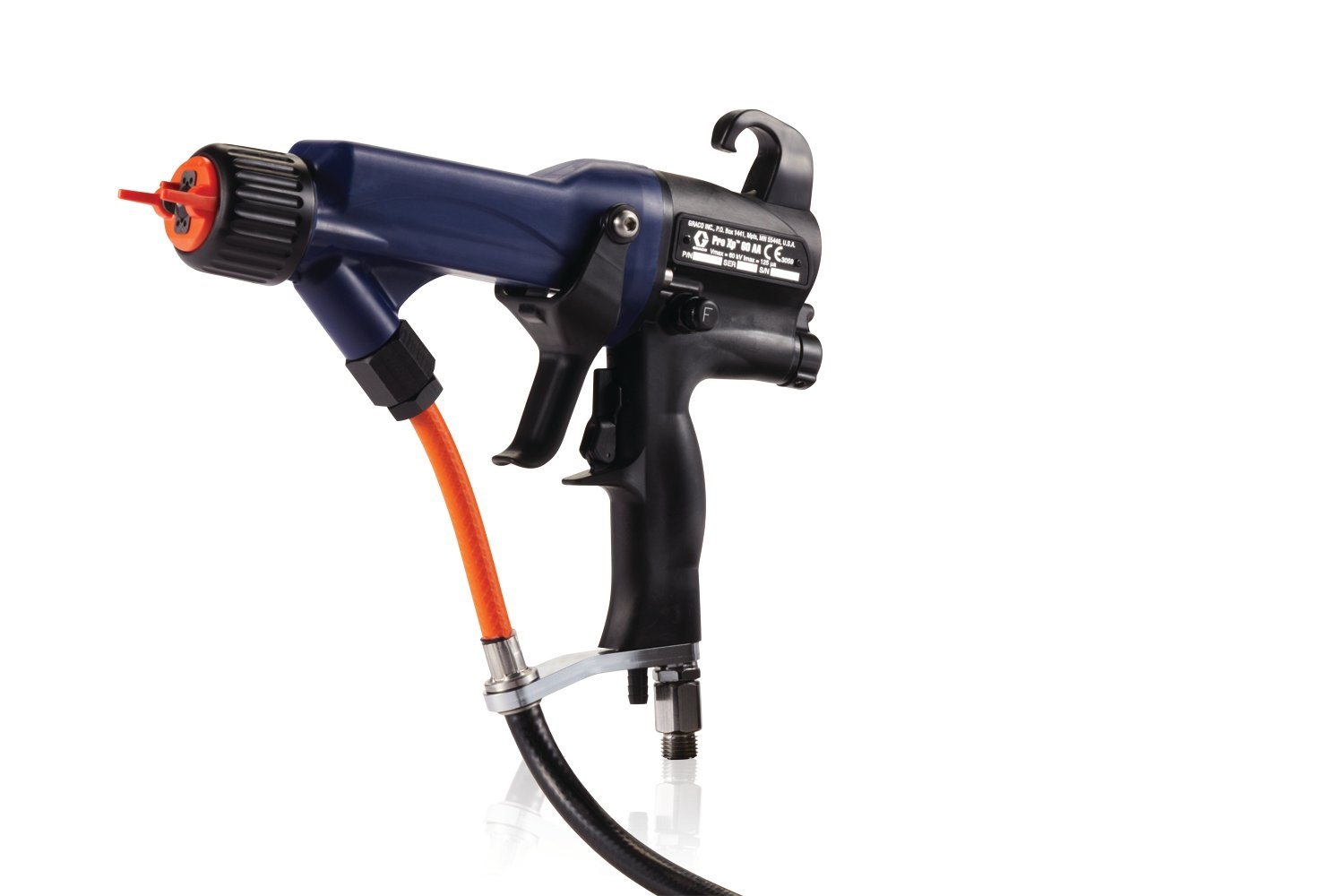

  • Ideal for high pressure waterborne material spraying with the Pro Xp60 AA WB gun for a superior finish quality and operator comfort

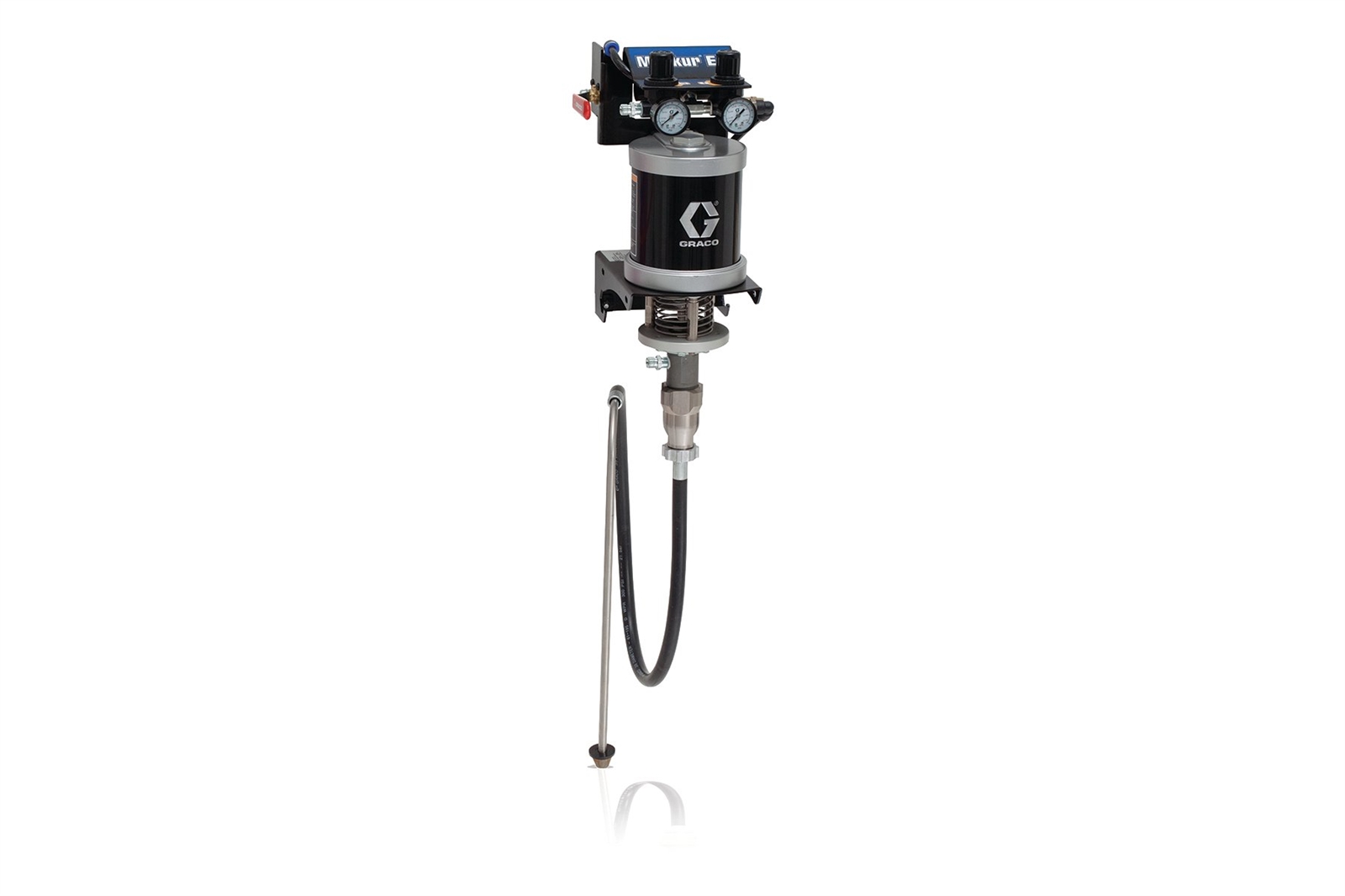

  • Merkur ES 30:1 pump is one of the most efficient sprayers designed to use less material and reduce air usage and pulsation
  • Standard voltage display allows for easy monitoring of voltage for overall performance
  • Simple 5 gallon (19 l) pail design is easy to color change and flush the system
  • Electrostatic gun Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
  • Portable cabinet increases mobility for a wide variety of applications

Specifications

Technical Specifications

Convert to Metric
Compatible Material Waterborne, Single Components, Topcoats, Lacquer
Convertible Non-Convertible
Gun Included 1
Gun Type Electrostatic
Includes Smart Electrostatic Air-Assisted Spray Gun, Unshielded Waterborne Fluid Hose
Maximum Flow Rate (GPM) 0.4
Maximum Sound Pressure Level (dB(A)) 99
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (psi) 3000
Model WB3000
Motor Type Pneumatic
Pressure Type High Pressure
Product Type Spray Package
Pump Sleeve Material Stainless Steel
Pump Type Air-Assisted
Spray Type Air-Assisted
Standards Met CE, FM Approval
Technology Type Air-Assisted
Type Air-Assisted Airless Sprayer
Wetted Material Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten, PTFE
Compatible Material Waterborne, Single Components, Topcoats, Lacquer
Convertible Non-Convertible
Gun Included 1
Gun Type Electrostatic
Includes Smart Electrostatic Air-Assisted Spray Gun, Unshielded Waterborne Fluid Hose
Maximum Sound Pressure Level (dB(A)) 99
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (bar) 210
Maximum Working Pressure (kPa) 21000
Model WB3000
Motor Type Pneumatic
Pressure Type High Pressure
Product Type Spray Package
Pump Sleeve Material Stainless Steel
Pump Type Air-Assisted
Spray Type Air-Assisted
Standards Met CE, FM Approval
Technology Type Air-Assisted
Type Air-Assisted Airless Sprayer
Wetted Material Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten, PTFE
