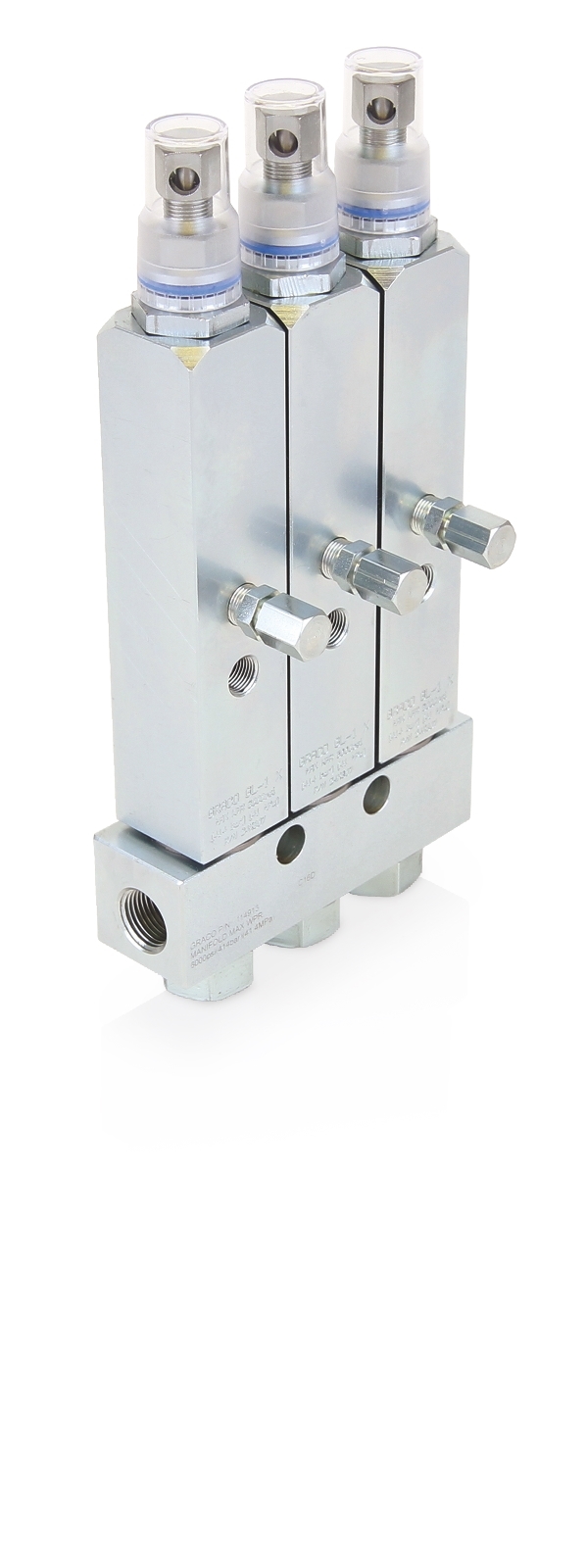

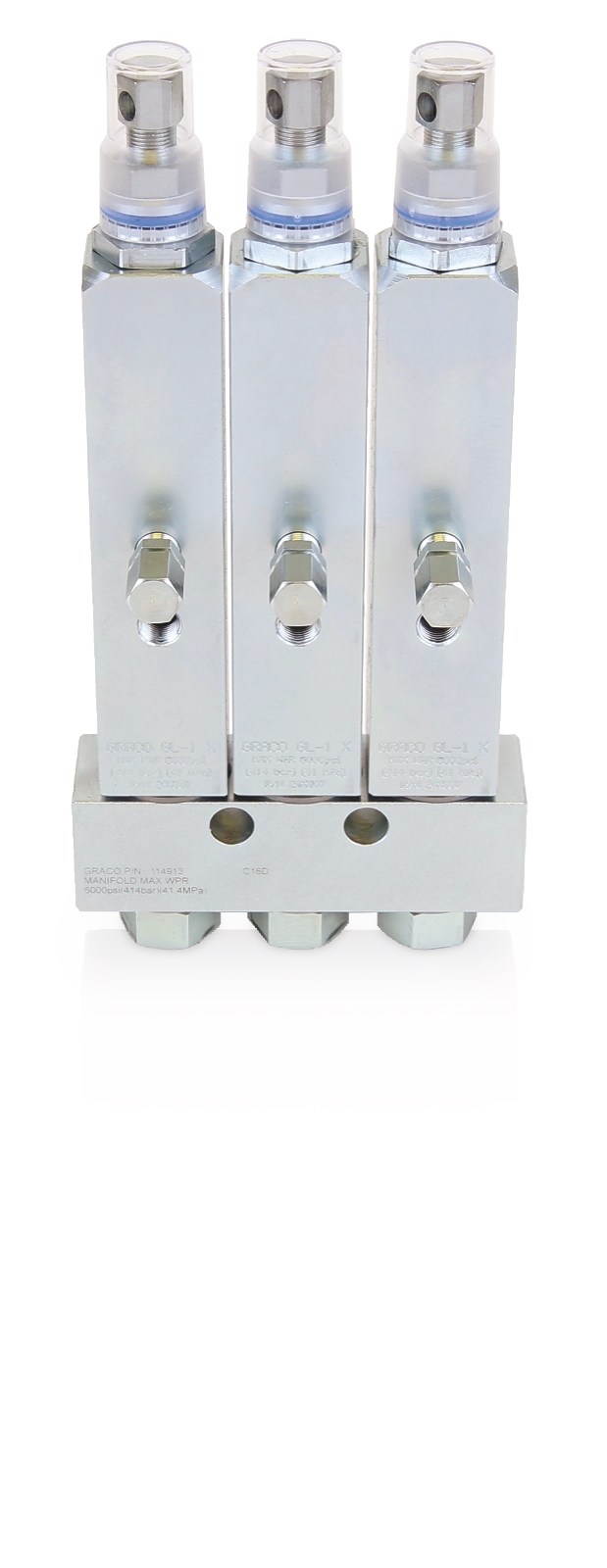

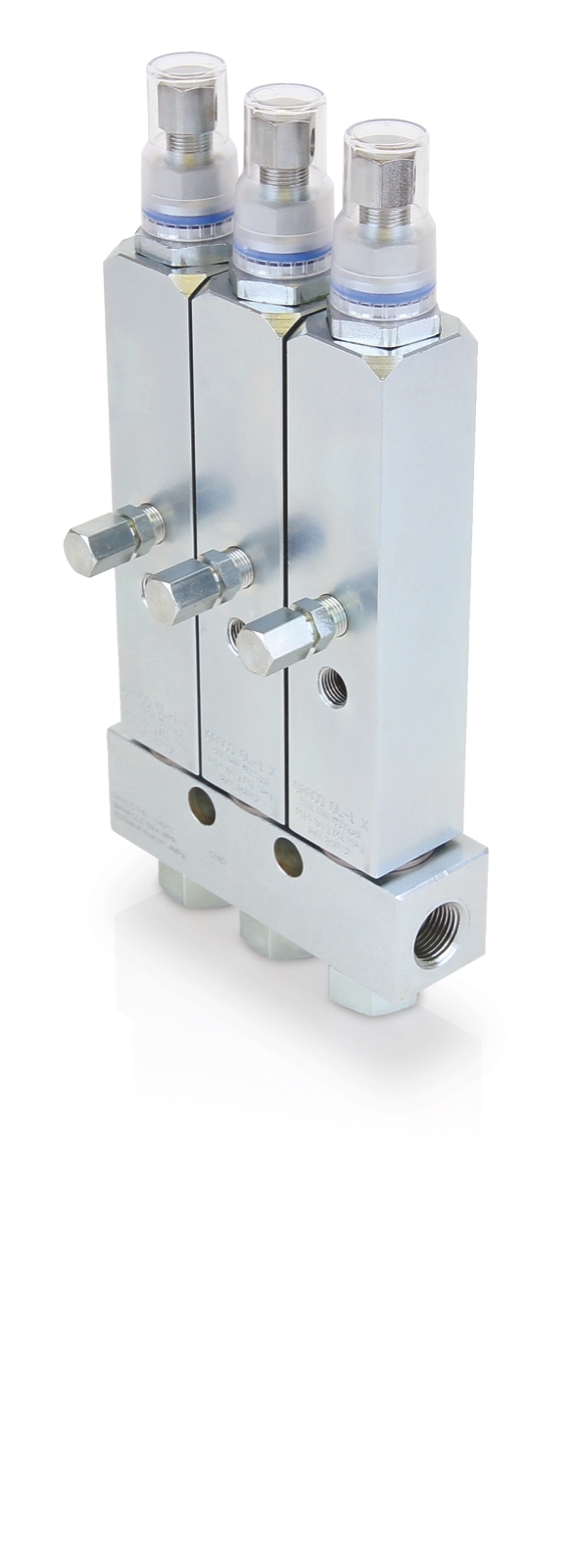

GL-1™ X Grease Injector, Three Point

24X803

Custom fit your system with Graco's adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Custom fit your system with Graco's adjustable GL-1 series grease injectors. Designed to meet the needs of each lube point, these systems provide years of reliable operation in the harshest operating environments.

High volume output at high pressures for the most demanding applications

  • The GL-1 X injectors are offered both as a stand-alone and a replacement injector for manifold systems for easy customization to a variety of applications
  • Includes an adjustable hex head nut to make adjusting the output simple
  • No vent holes and fully enclosed press fittings to prevent leaking lubricant
  • Convenient top-mounted cycle pin indicator for quick confirmation that the injector is functioning properly
  • Rugged, single piece uni-body design built for the harshest environments

Specifications

Technical Specifications

Convert to Metric
Adjustable Adjustable
Application In-Plant Machinery, Off-Road Equipment
Compatible Material Grease
Compatible Metering Device Single Line Parallel
Cycle Indicator Visual
Dispense Outlet Size (in) 0.13
Dispense Outlet Thread Type NPT
For Use With Single Line Parallel Automatic Lubrication Systems
Inlet Size (in) 0.375
Inlet Thread Type NPT
Maximum NLGI Grade #2
Maximum Operating Pressure (psi) 6000
Maximum Output Volume (in³) 0.08
Maximum Reset Pressure (psi) 1000
Maximum Working Pressure (psi) 6000
Minimum Operating Pressure (psi) 1850
Minimum Output Volume (in³) 0.015
Outlet Size (in) 0.375
Outlet Thread Type NPT
Type Grease Injector
Wetted Material Carbon Steel, Stainless Steel, Fluoroelastomer, UHMWPE
Adjustable Adjustable
Application In-Plant Machinery, Off-Road Equipment
Compatible Material Grease
Compatible Metering Device Single Line Parallel
Cycle Indicator Visual
Dispense Outlet Thread Type NPT
For Use With Single Line Parallel Automatic Lubrication Systems
Inlet Size (cm) 0.9525
Inlet Size (mm) 9.5250
Inlet Thread Type NPT
Maximum NLGI Grade #2
Maximum Working Pressure (bar) 413
Maximum Working Pressure (kPa) 41340
Outlet Size (cm) 0.9525
Outlet Size (mm) 9.5250
Outlet Thread Type NPT
Type Grease Injector
Wetted Material Carbon Steel, Stainless Steel, Fluoroelastomer, UHMWPE
