Mini Fire-Ball 225

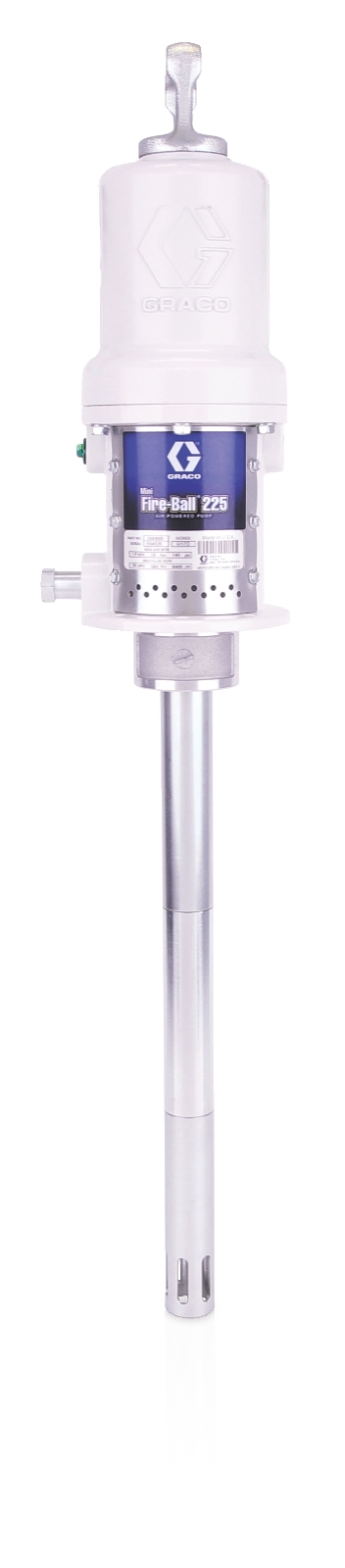

Mini Fire-Ball® 225 50:1 35 lb. (16 kg) D Grease Pump - Pail Length Without Handle
Part Number: 253361
Image is for illustrative purposes only.
Mini Fire-Ball 225
Mini Fire-Ball® 225 50:1 35 lb. (16 kg) D Grease Pump - Pail Length Without Handle
Part Number: 253361
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
Questions About this Product?
If you're not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.
The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 2.25 |
| Application | Industrial |
| Compatible Material | Grease |
| Construction | Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Grease |
| Maximum Air Inlet Pressure (psi) | 140 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Intermittent Cycle Rate (CPM) | 100 |
| Maximum Working Pressure (MPa) | 58 |
| Maximum Working Pressure (psi) | 8400 |
| Model | Mini Fire-Ball |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Seal Material | Polyurethane |
| Series | 225 |
| Sound Power Level (dB(A)) | 85.6 |
| Sound Pressure Level (dB(A)) | 77.8 |
| Type | Pneumatic Piston Pump |
| Weight (lb) | 15 |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Size (mm) | 9.525 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Air Motor Effective Diameter (in) | 2.25 |
| Application | Industrial |
| Compatible Material | Grease |
| Construction | Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Inlet Type | Slotted |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| For Use With | Grease |
| Maximum Air Inlet Pressure (bar) | 9.65 |
| Maximum Air Inlet Pressure (kPa) | 965 |
| Maximum Air Inlet Pressure (psi) | 140 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Intermittent Cycle Rate (CPM) | 100 |
| Maximum Working Pressure (MPa) | 58 |
| Maximum Working Pressure (bar) | 580 |
| Maximum Working Pressure (kPa) | 58000 |
| Maximum Working Pressure (psi) | 8400 |
| Model | Mini Fire-Ball |
| Power Type | Pneumatic |
| Pump Ratio | 50:1 |
| Seal Material | Polyurethane |
| Series | 225 |
| Sound Power Level (dB(A)) | 85.6 |
| Sound Pressure Level (dB(A)) | 77.8 |
| Type | Pneumatic Piston Pump |
| Weight (kg) | 0.6810 |
Product Manuals
309967G, Mini Fire-Ball 225, 50:1 Grease Pump Packages, Instructions-Parts, English
(758 KB)
(English Only)
CAD Drawings
253361-3D-EN.zip
(826 KB)
Sales Literature
303245EN-AM Graco Vehicle Service Equipment (VSE) North American Buyer's Guide
(27 MB)
(English Only)
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
