Mini Fire-Ball 225

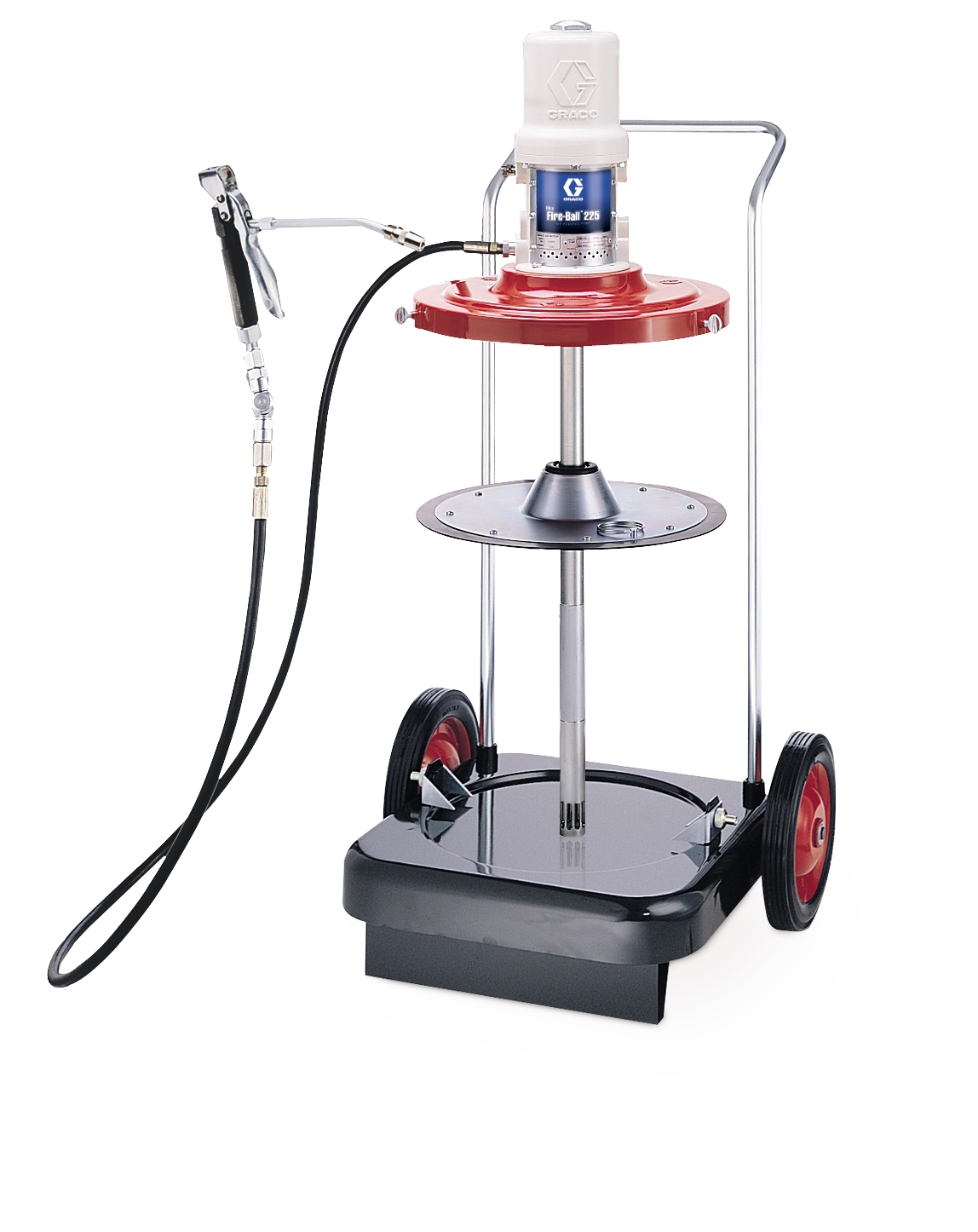

Mini Fire-Ball® 225 50:1 120 lb. (54 kg) Grease Pump - Portable CE Package 2-Wheel Cart

253389

246916_Mini_FB_225_50_1_Package 246916_Mini_FB_225_Pump_Package

Mini Fire-Ball 225

Mini Fire-Ball® 225 50:1 120 lb. (54 kg) Grease Pump - Portable CE Package 2-Wheel Cart

253389

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

Questions About this Product?

If you're not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

You can't afford down time, especially when your shop is small and your work force depends on equipment performance. The Mini Fire-Ball 225 is an engineered design with fewer moving parts, which means less wear out, and reduced downtime and more profit for your business.

The Mini Fire-Ball 225 50:1 is perfect for medium pressure, low volume grease applications.

  • Durable - Thick cast aluminum air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 0.375
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Type Slotted
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT

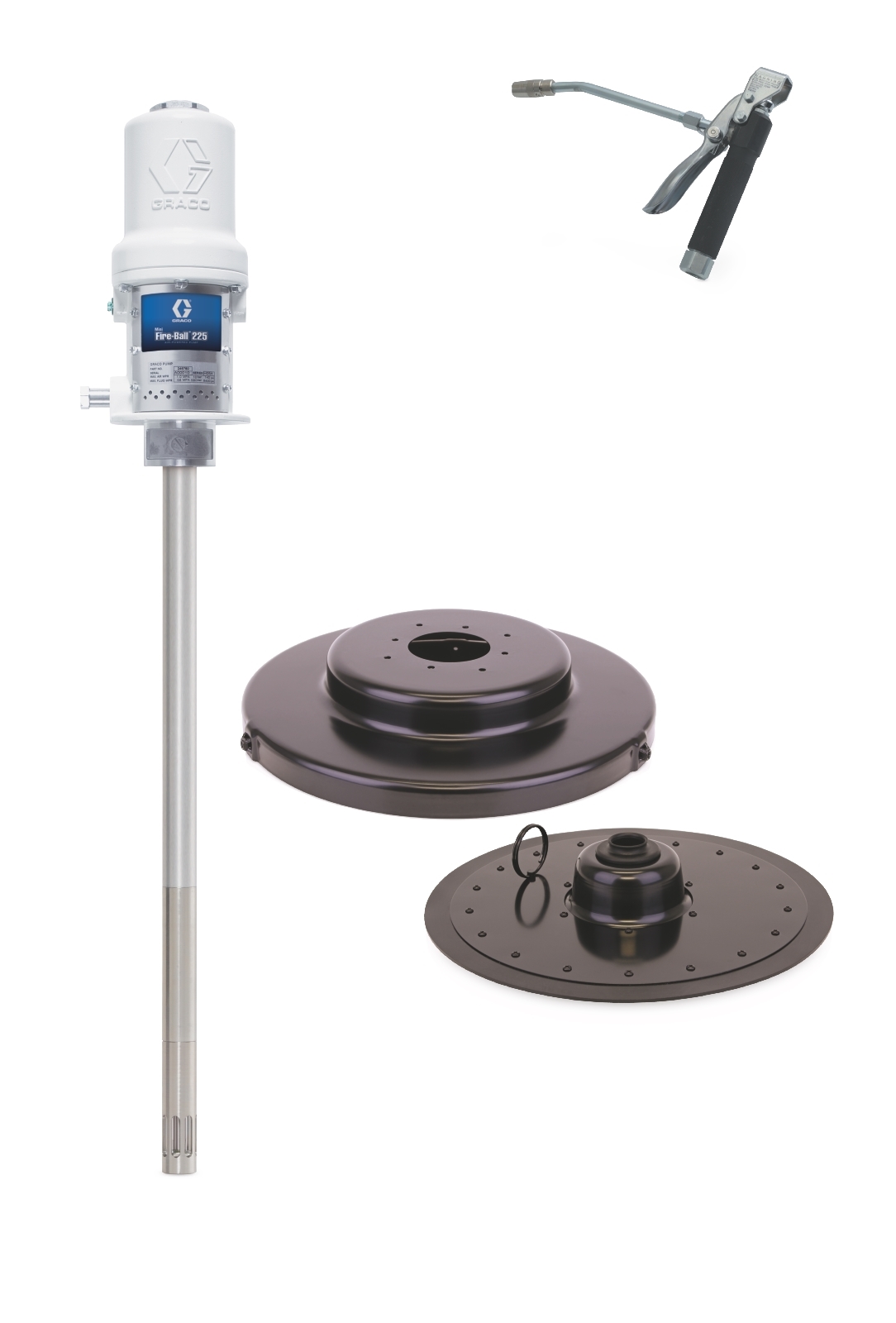

Includes Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, 2-Wheel Truck, Shim
Maximum Air Working Pressure 8400
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (psi) 5000
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Pump Weight (lb) 15
Series 225
Type Piston Pump Package
Wetted Material Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Compatible Material Grease
Fluid Inlet Type Slotted
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Includes Mini Fireball 50:1 225 Pump, Dispense Kit, Cover, Follow Plate, Holster, 2-Wheel Truck, Shim
Maximum Air Working Pressure 8400
Maximum Working Pressure (MPa) 35
Maximum Working Pressure (bar) 345
Maximum Working Pressure (kPa) 34500
Motor Type Pneumatic
Mount Location Drum Mount
Power Type Pneumatic
Pump Ratio 50:1
Series 225
Type Piston Pump Package
Wetted Material Steel, Urethane, Aluminum, Buna-N, Brass, Ethylene, Delrin
