MD2

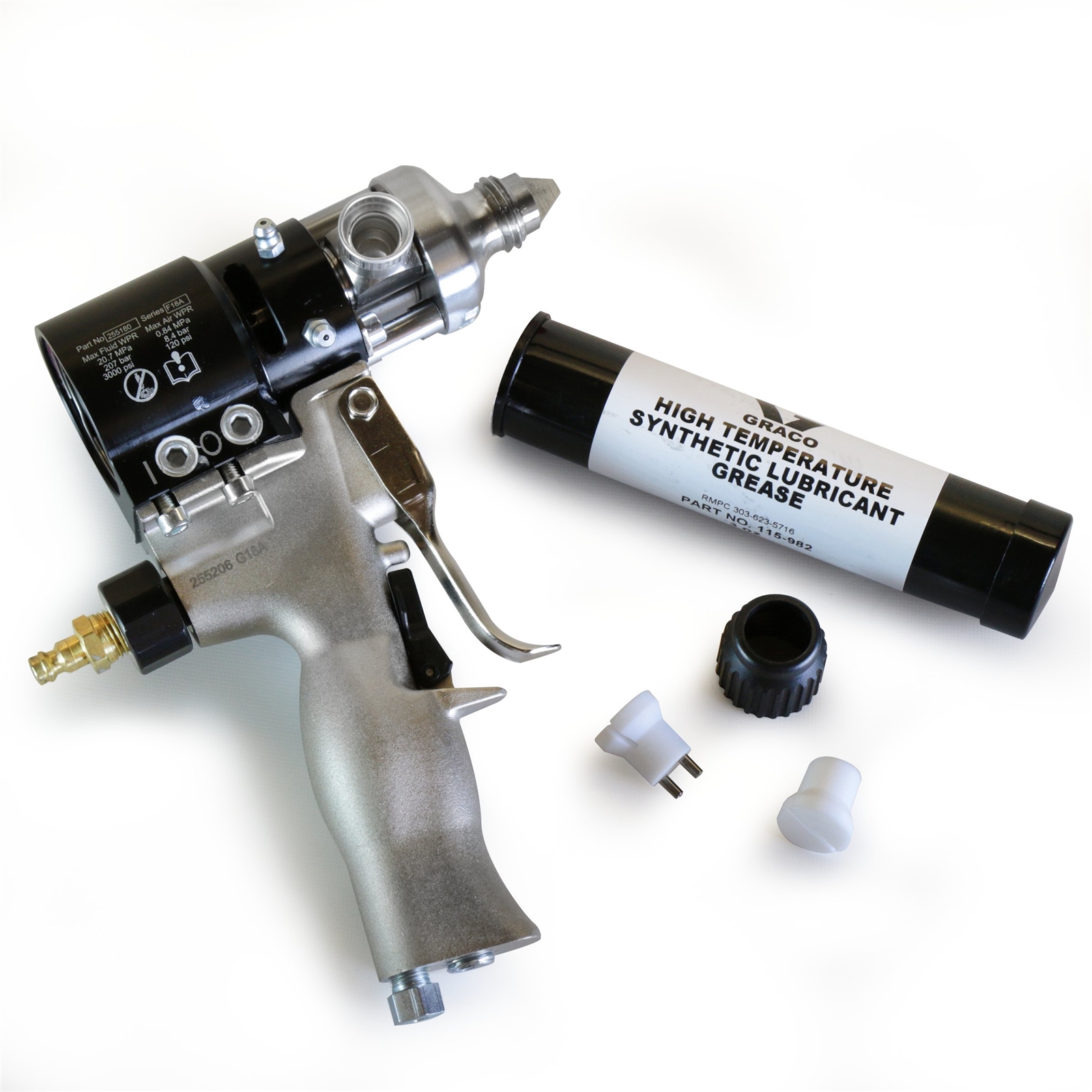

1:1 Ratio Hard Seat Air-Actuated Gun Trigger

Part Number: 255442

product image product image

MD2

1:1 Ratio Hard Seat Air-Actuated Gun Trigger

Part Number: 255442

Accurately dispenses and mixes two-component sealants and adhesives.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding
Compatible Material 2K Sealants, Adhesives
Component Type Plural-Component
Fluid Inlet Size (in) 9/16-18
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type UNF
Fluid Outlet Size (in) 7/8-9
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type UNC
Gun Activation Manual

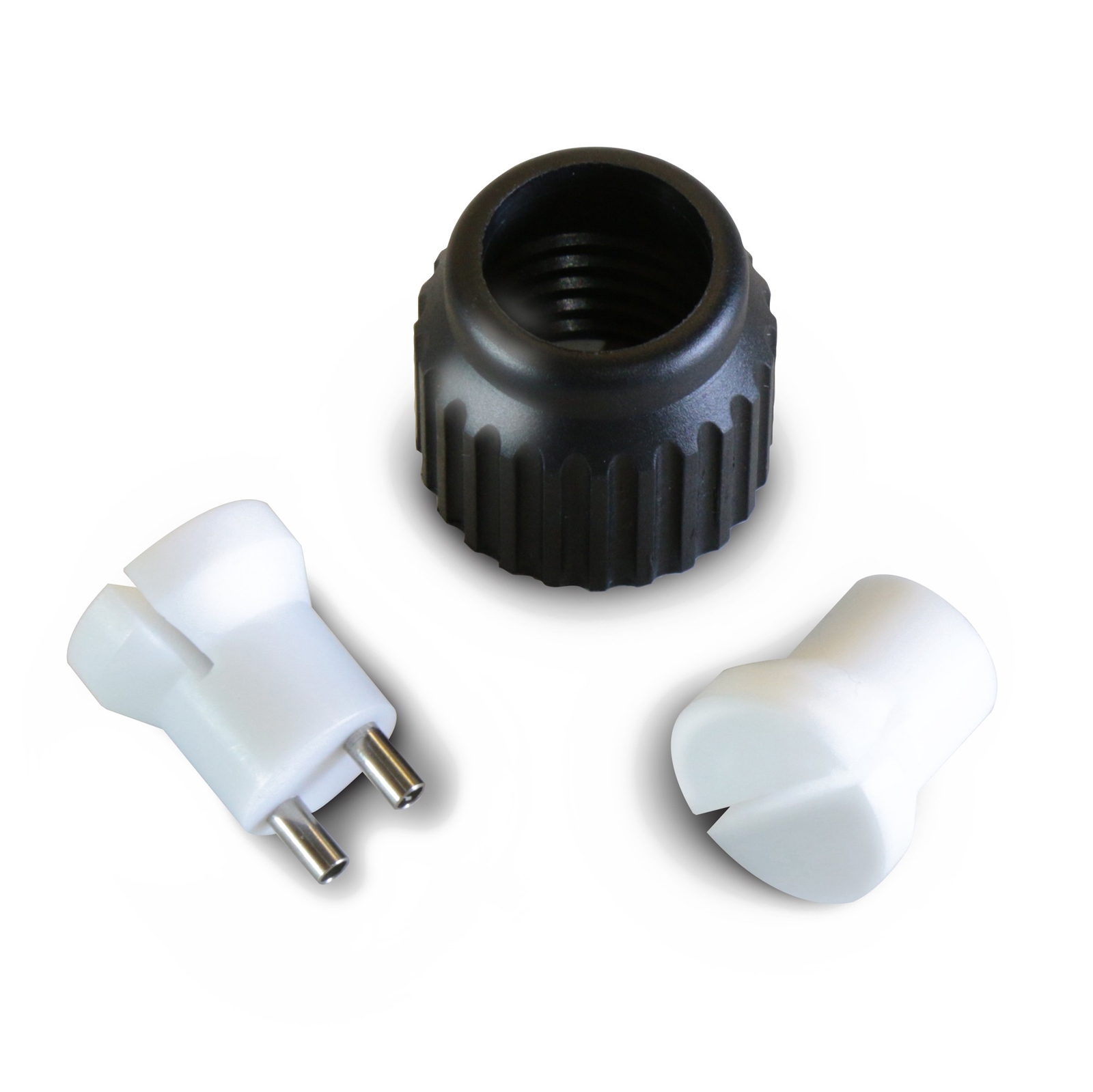

Includes 10 in Steel Drum, 1:1 Hard Seat Dispense Valve:Gasket Handle, 1:1 Ratio Check Adapter, 1:1 Night Cap
Inlet Size (in) 9/16-18
Maximum Viscosity (cP) 1000000
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (psi) 3000
Model MD2
Mount Hole Thread Gender Female
Mount Hole Thread Type Metric
Type Metering Valve
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding
Compatible Material 2K Sealants, Adhesives
Component Type Plural-Component
Fluid Inlet Size (in) 9/16-18
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type UNF
Fluid Outlet Size (in) 7/8-9
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type UNC
Gun Activation Manual
Includes 10 in Steel Drum, 1:1 Hard Seat Dispense Valve:Gasket Handle, 1:1 Ratio Check Adapter, 1:1 Night Cap
Inlet Size (in) 9/16-18
Maximum Viscosity (cP) 1000000
Maximum Working Pressure (MPa) 20.7
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Model MD2
Mount Hole Thread Gender Female
Mount Hole Thread Type Metric
Type Metering Valve
