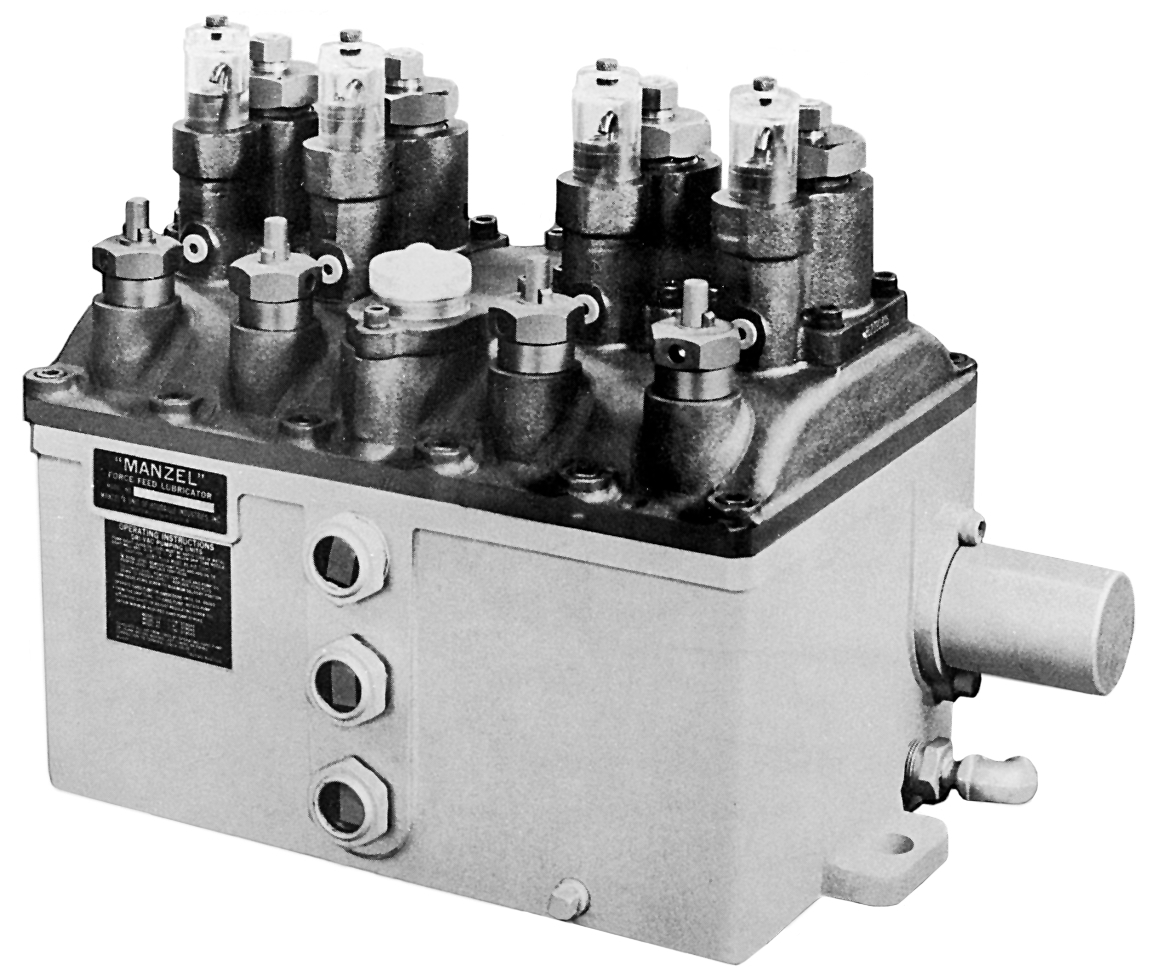

Manzel HP-50
HP-50 Lubricator with 4 Pumps, Provisions for Flange Mounted Auto Fill, Low Level in Fill Plate, Proximity Switch
258263
Manzel HP-50
HP-50 Lubricator with 4 Pumps, Provisions for Flange Mounted Auto Fill, Low Level in Fill Plate, Proximity Switch
258263
Single plunger force feed design is highly efficient for injecting lubricants and/or compatible fluids into high pressure systems. Vacuum sight feeds on self-contained pumping units show output of lubricant to individual lubrication points.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Single plunger force feed design is highly efficient for injecting lubricants and/or compatible fluids into high pressure systems. Vacuum sight feeds on self-contained pumping units show output of lubricant to individual lubrication points.
For lubricating compressor and circulator cylinder walls, heavily loaded bearings and other moving parts.
- Operating pressures up to 60,000 psi
- All working parts are totally enclosed and self-lubricated
- Individual pumping units easily removed for service
- Feed rate infinitely variable from minimum to maximum with simple hand adjustment
Specifications
Technical Specifications
Convert to Metric| Compatible Material | Oil |
|---|---|
| Maximum Drive Speed (RPM) | 36 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Drops Per Stroke (drops/stroke) | 4 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Reservoir Capacity (gal) | 2.25 |
| Maximum Reservoir Capacity (pt) | 18 |
| Maximum Reservoir Capacity (qt) | 9 |
| Maximum Working Pressure (psi) | 50000 |
| Minimum Drive Speed (RPM) | 3 |
| Minimum Fluid Viscosity (SUS) | 100 |
| Minimum Number of Drops Per Stroke (drops/stroke) | 1 |
| Minimum Operating Temperature (°F) | -20 |
| Overall Depth (in) | 22.68 |
| Overall Height (in) | 14.77 |
| Overall Width (in) | 11.56 |
| Pump Size (in) | 1/4 |
| Reservoir Material | Cast Iron |
| Type | Box Lubricator |
| Compatible Material | Oil |
| Maximum Drive Speed (RPM) | 36 |
| Maximum Fluid Viscosity (SUS) | 5000 |
| Maximum Number of Drops Per Stroke (drops/stroke) | 4 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Reservoir Capacity (L) | 8.5 |
| Maximum Working Pressure (bar) | 3447 |
| Maximum Working Pressure (kPa) | 344700 |
| Minimum Drive Speed (RPM) | 3 |
| Minimum Fluid Viscosity (SUS) | 100 |
| Minimum Number of Drops Per Stroke (drops/stroke) | 1 |
| Minimum Operating Temperature (°C) | -29 |
| Overall Depth (cm) | 57.61 |
| Overall Depth (mm) | 576.1 |
| Overall Height (cm) | 37.5 |
| Overall Height (mm) | 375 |
| Overall Width (cm) | 29.36 |
| Overall Width (mm) | 293.6 |
| Pump Size (cm) | 0.6 |
| Pump Size (mm) | 6.3 |
| Reservoir Material | Cast Iron |
| Type | Box Lubricator |
