SaniForce 1040e

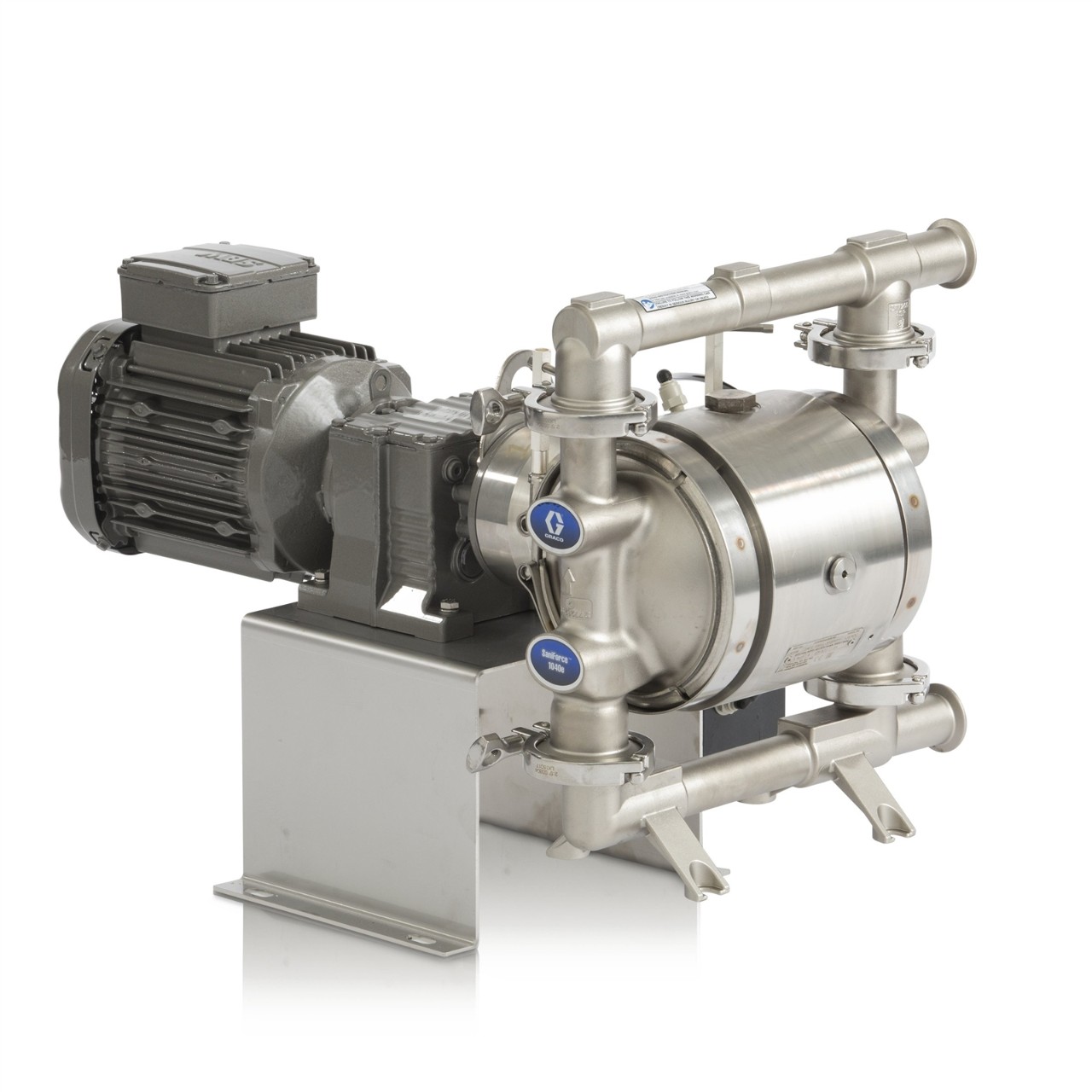

SaniForce 1040e S/S EODD Replacement Pump with 120 V Compressor, S/S Center Section & Seats, PTFE Balls, Diaphragm & Manifold O-Rings
Part Number: 25A880
SaniForce 1040e
SaniForce 1040e S/S EODD Replacement Pump with 120 V Compressor, S/S Center Section & Seats, PTFE Balls, Diaphragm & Manifold O-Rings
Part Number: 25A880
The SaniForce 1040e combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump like energy cost savings, reduced pulsation and increased pump control.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The SaniForce 1040e combine all of the benefits of a traditional air operated diaphragm pump like self-priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump like energy cost savings, reduced pulsation and increased pump control.
1 inch (25.4 mm) air-operated double diaphragm sanitary pump with flow rates up to 40 gpm (151 lpm) - ideal for food-related applications
- Low pulsation makes this pump ideal for applications that need smooth flow 5 times more efficient than an air operated diaphragm pump
- Patent pending technology allows pump to stall under pressure preventing pump failures from clogged lines or closed valves
- Energy efficient electric drive reduces energy consumption up to 5x compared to traditional air operated diaphragm pumps
- Less Noise disturbance thru less than 70 dBa compared to an AODD
- Mobile cart options available for easy and quick movement
- Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions
Specifications & Documents
Technical Specifications
Convert to Metric| Air Inlet Size (in) | 3/8 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compatible Material | Food, Personal Care |
| Connection Type | Tri-Clamp |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 3600 |
| Maximum Operating Temperature (°F) | 104 |
| Maximum Solid Size (in) | 0.125 |
| Maximum Storage Temperature (°F) | 104 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Storage Temperature (°F) | 32 |
| Motor Type | Brushless DC |
| Power Rating (HP) | 2.2 |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 320 |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compatible Material | Food, Personal Care |
| Connection Type | Tri-Clamp |
| Diaphragm Compatible Material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (bar) | 5.5 |
| Maximum Air Pressure (kPa) | 550 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Cycle Rate (CPM) | 280 |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Flow Rate (L/min) | 132 |
| Maximum Fluid Pressure (MPa) | 0.48 |
| Maximum Fluid Pressure (bar) | 4.8 |
| Maximum Fluid Pressure (kPa) | 480 |
| Maximum Fluid Pressure (psi) | 70 |
| Maximum Motor Speed (RPM) | 3600 |
| Maximum Operating Temperature (°C) | 40 |
| Maximum Solid Size (cm) | 0.3175 |
| Maximum Solid Size (mm) | 3.175 |
| Maximum Storage Temperature (°C) | 40 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Storage Temperature (°C) | 0 |
| Motor Type | Brushless DC |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 320 |
