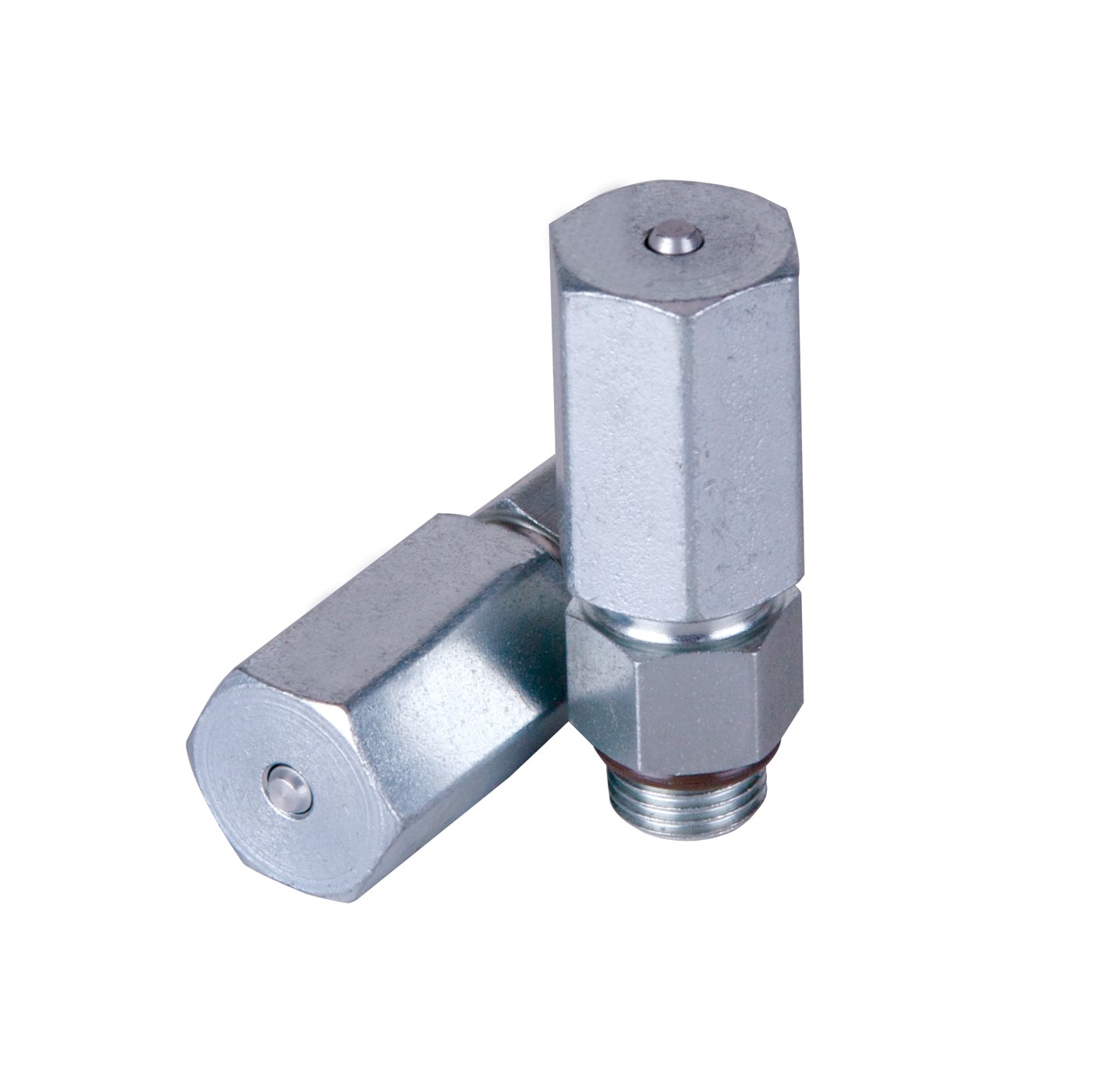

Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 5500 psi (379 bar)

563224

Trabon

Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 5500 psi (379 bar)

563224

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).

  • High pressure from blockage causes a disc to rupture
  • Lubricant forces an indicator pin to protrude, indicating the blockage
  • High pressure backs up through the system and trips a switch to shut the system off
  • When fault is corrected, disc must be replaced and pin reset

Specifications

Technical Specifications

Convert to Metric
Application In-Plant Machinery
Compatible Material Oil
Connection Size (in) 0.125
Indicator Type Rupture Indicator
Maximum Working Pressure (MPa) 38
Maximum Working Pressure (psi) 5500
Overall Length (in) 1.77
Overall Width (in) 0.56
Thread Type NPSF
Type Relief Indicator
Application In-Plant Machinery
Compatible Material Oil
Indicator Type Rupture Indicator
Maximum Working Pressure (MPa) 38
Maximum Working Pressure (bar) 379
Maximum Working Pressure (kPa) 37900
Overall Length (cm) 4
Overall Length (mm) 45
Overall Width (cm) 1.4224
Overall Width (mm) 14.224
Thread Type NPSF
Type Relief Indicator
