Husky 15120

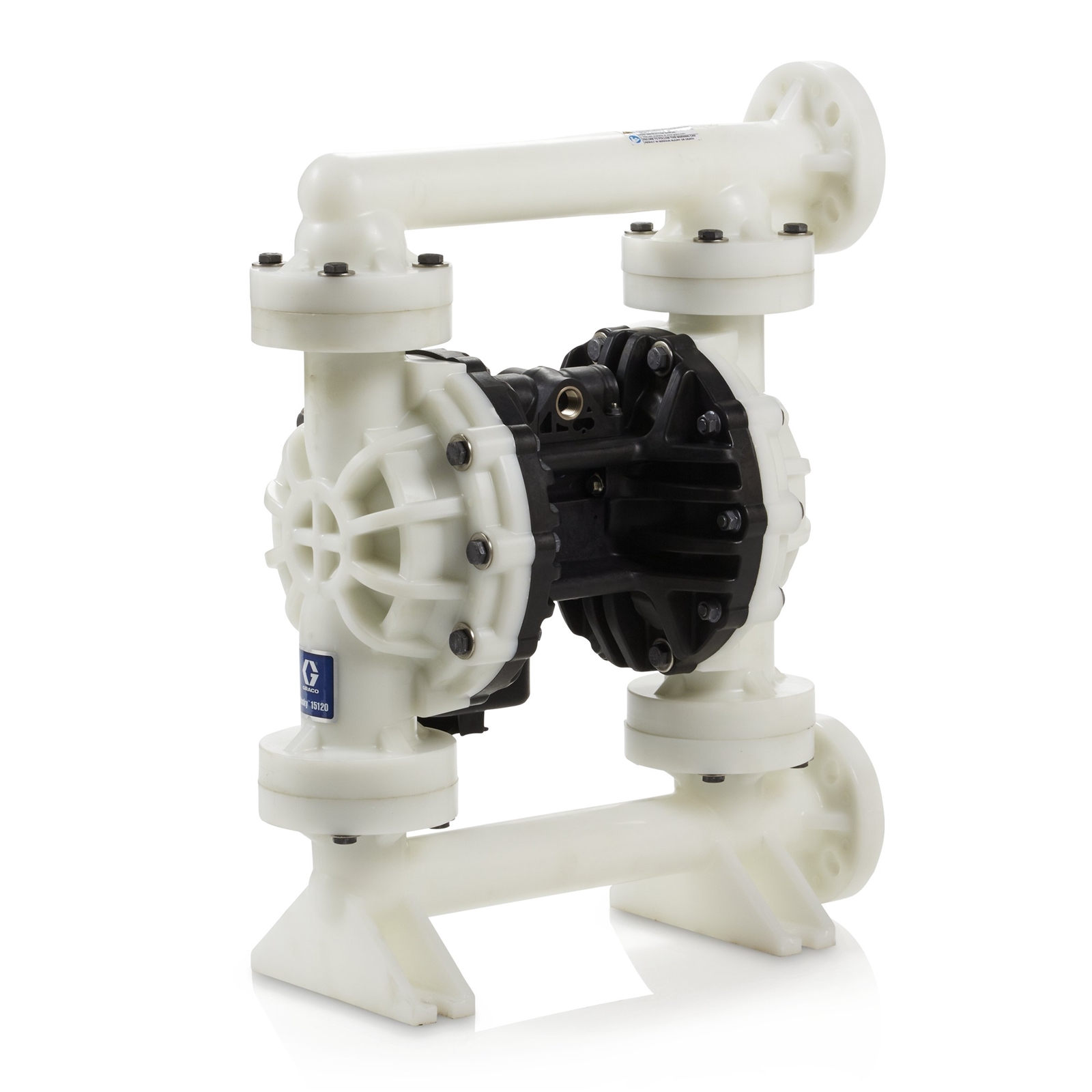

Husky 15120 Polypropylene Pump, Center Flange, Polypropylene Center Section, S/S Seats, Santoprene Balls & PTFE Diaphragm

654514

Husky_Poly_Poly_15120

Husky 15120

Husky 15120 Polypropylene Pump, Center Flange, Polypropylene Center Section, S/S Seats, Santoprene Balls & PTFE Diaphragm

654514

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Husky 15120 air-operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The one-piece center section eliminates leaks and reduces maintenance on Husky pumps when compared to other diaphragm pumps.

  • Overall improved efficiency (up to 40% more efficient)
  • Highest fluid flow rate in its class
  • Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
  • Expanded material offering to handle endless applications
  • 1-1/2 in (38.1 mm) ANSI center and end-porting options available
  • High flow - 120 gpm (454 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF

Specifications

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 1
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Santoprene
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
Connection Type Center Flange ANSI/DIN
Diaphragm Material PTFE/EPDM 2-Piece
Fluid Inlet Size (in) 1-1/2
Fluid Inlet Thread Gender Female
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Female
Fluid Section Material Polypropylene
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material Polypropylene
Maximum Air Consumption (SCFM) 85
Maximum Air Pressure (MPa) 0.862
Maximum Air Pressure (psi) 125
Maximum Cycle Rate (CPM) 183
Maximum Flow Rate (GPM) 120
Maximum Fluid Pressure (MPa) 0.862
Maximum Fluid Pressure (psi) 125
Maximum Operating Temperature (°F) 150
Maximum Solid Size (in) 0.25
Minimum Operating Temperature (°F) 32
Minimum Storage Temperature (°F) 32
Power Source Air
Seat Material Stainless Steel
Standards Met CE
Type Pneumatic Diaphragm Pump
Weight (lb) 57
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material Santoprene
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
Connection Type Center Flange ANSI/DIN
Diaphragm Material PTFE/EPDM 2-Piece
Fluid Inlet Size (cm) 3.81
Fluid Inlet Size (mm) 38.1
Fluid Inlet Thread Gender Female
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Female
Fluid Section Material Polypropylene
Manifold Configuration Center Port
Manifold O-Ring Material PTFE
Material Polypropylene
Maximum Air Pressure (MPa) 0.862
Maximum Air Pressure (bar) 8.62
Maximum Air Pressure (kPa) 862
Maximum Cycle Rate (CPM) 183
Maximum Flow Rate (L/min) 454
Maximum Fluid Pressure (MPa) 0.862
Maximum Fluid Pressure (bar) 8.62
Maximum Fluid Pressure (kPa) 862
Maximum Operating Temperature (°C) 66
Maximum Solid Size (cm) 0.635
Maximum Solid Size (mm) 6.35
Minimum Operating Temperature (°C) 0
Minimum Storage Temperature (°C) 0
Power Source Air
Seat Material Stainless Steel
Standards Met CE
Type Pneumatic Diaphragm Pump
