Python XL

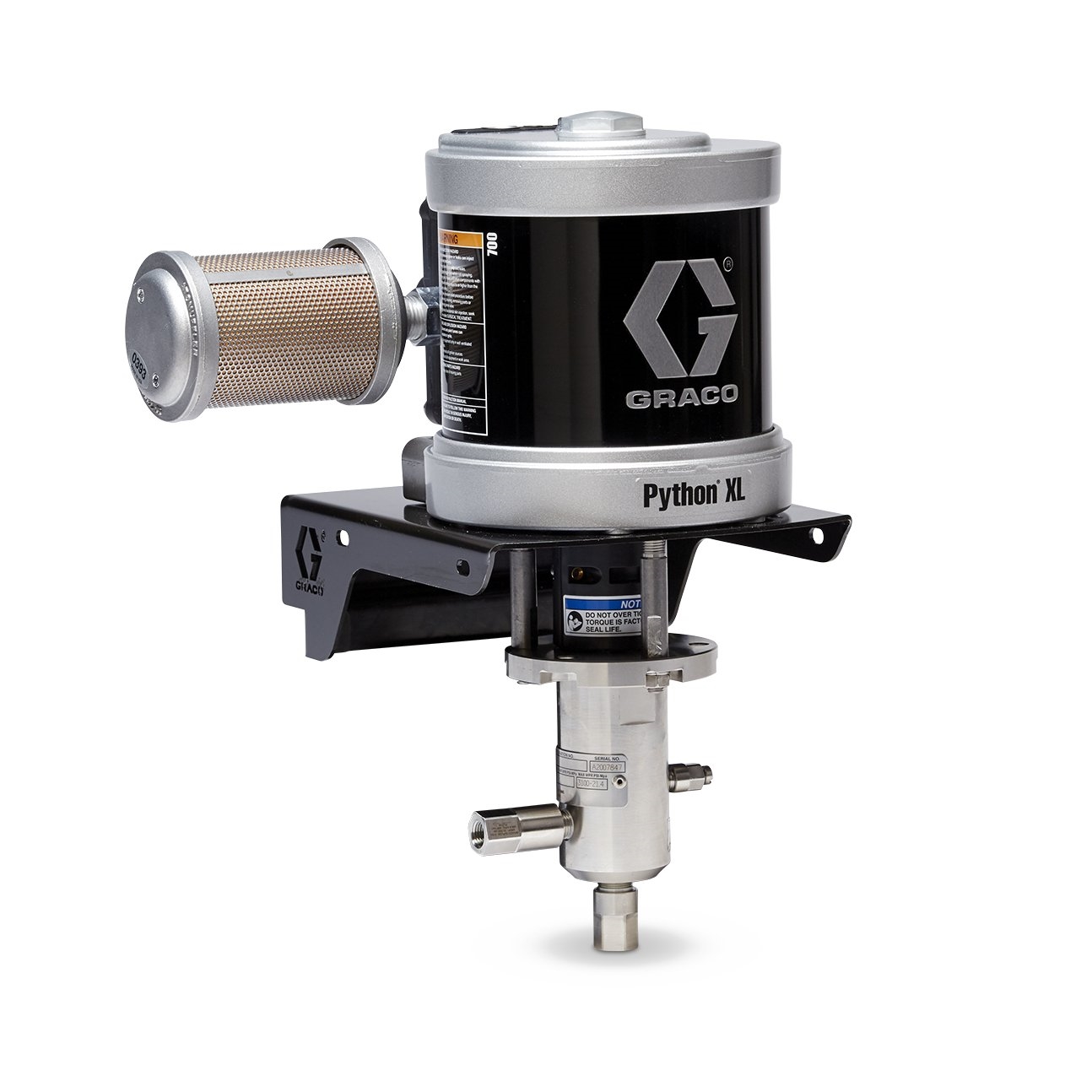

Python® XL Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, Ceramic Coated 1/4 in Plunger, FFKM Seals, CE Approved

A25235

Python_XL_family Python-XL-air-motor Python-XL-on-bracket Python_XL_4_5_in

Python XL

Python® XL Pneumatic Chemical Injection Pump, 2-1/2 in Air Motor, Ceramic Coated 1/4 in Plunger, FFKM Seals, CE Approved

A25235

Python XL pumps are ideal for wells with low gas or compressed air inlet pressure. Capable of operating up to 12,000 psi, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chrom...

More Info

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Python XL pumps are ideal for wells with low gas or compressed air inlet pressure. Capable of operating up to 12,000 psi, the pumps are easy to operate and include an air motor with the same proven technology that Graco offers in other product lines. Plus the Python XL’s extreme duty plungers (Chromex™ and ceramic coated), seals and air valves are designed for years of operation before replacement.

  • Ease of serviceability

    • Modular air valve design
    • Removable pilot valve
    • Pump lowers are interchangeable with other Python XL models
    • Plunger packings can be replaced in 10 minutes or less
  • Highest technology air motor on the market

    • Only requires a minimum of 15 psi to operate pump
    • Low air/gas consumption for increased efficiency
    • Muffler provides low operation noise levels
    • Proven Graco® Merkur® air motor technology
  • Robust and simple design

    • 316 SST fluid section/wetted parts
    • Three stroke adjustment positions
    • HNBR, FKM, FKM ETP, FFKM, and TFE/P plunger packings and check valve seals
  • Environmentally friendly

    • 97% recoverable exhaust gas
    • Reduced fugitive methane emissions

Specifications

Technical Specifications

Convert to Metric
Ceramic
2-1/2
Air Inlet Size (in) 0.25
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Non-Hazardous Location
Approvals CE
Compatible Material Chemicals
Fluid Outlet Size (in) 0.25
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Maximum Air Inlet Pressure (psi) 100
Maximum Continuous Cycle Rate (CPM) 100
Maximum Working Pressure (psi) 10000
Plunger Material FFKM
Plunger Size (in) 1/4
Seal Material FFKM
Type Pneumatic Plunger Pump
Ceramic
2-1/2
Air Inlet Size (cm) 0.6350
Air Inlet Size (mm) 6.3500
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Non-Hazardous Location
Approvals CE
Compatible Material Chemicals
Fluid Outlet Size (cm) 0.6350
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 70
Maximum Continuous Cycle Rate (CPM) 100
Maximum Working Pressure (bar) 700
Maximum Working Pressure (kPa) 7000
Plunger Material FFKM
Seal Material FFKM
Type Pneumatic Plunger Pump
