ProMix PD2K

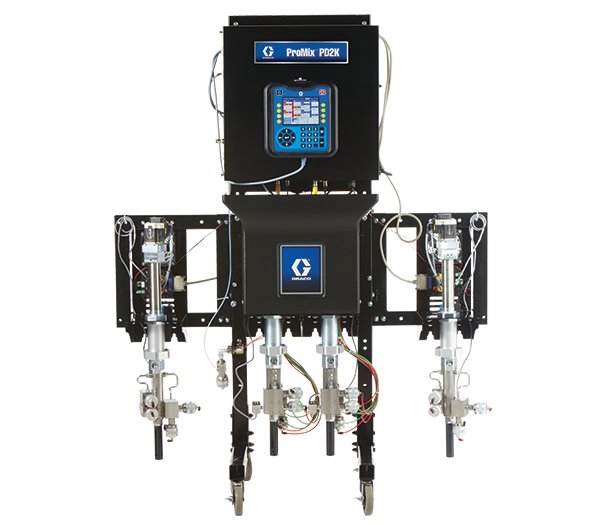

ProMix PD2K Automatic Proportioner, Dual Panel, High Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump

AC2002

21301_605x525

ProMix PD2K

ProMix PD2K Automatic Proportioner, Dual Panel, High Pressure, 70 cc Resin Pump, 35 cc Catalyst Pump

AC2002

100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs ov... More Info

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
100% Positive Displacement Technology for accurate mix ratios and consistent performance. Great for short pot life materials, the ProMix PD mixes the material close to the gun so the flush zone is significantly smaller. This allows for faster color changes, less material usage and disposal costs overall.
  • Up to 80% reduction in flushing waste over the most efficient traditional proportioning systems
  • Faster color changes and less material to flush mean less waste and less downtime
  • Stalls under pressure for consistent, on-ratio results (within 1% accuracy)
  • Proportion both epoxy and urethane with ONE system
  • Field serviceable in less than 20 minutes - no need for costly factory rebuilds like gear pumps

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 3/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Applicator Type Automatic
Component Type Two Component
Flush Type Solvent
Frequency (Hz) 50/60
Gun Activation Automatic
Material Type Plural Component
Maximum Mix Ratio 50:1
Maximum Number of Colors Up to 16
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (psi) 100
Measuring Type Meter
Minimum Mix Ratio 0.1:1
Mix Accuracy (%) 1
Number of Catalysts Up to 4
Number of Color Valves N/A
Number of Resin Colors Up to 30
Power Source Electric
Pressure Type High Pressure
Proportioner Type Automatic
Proportioning Type Automatic Electronic
Type Proportioner System
Wetted Material Stainless Steel, Tungsten Carbide, Perfluoroelastomer, PTFE, PPS, UHMWPE
Air Inlet Size (cm) 0.9525
Air Inlet Size (mm) 9.525
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Applicator Type Automatic
Component Type Two Component
Flush Type Solvent
Frequency (Hz) 50/60
Gun Activation Automatic
Material Type Plural Component
Maximum Mix Ratio 50:1
Maximum Number of Colors Up to 16
Maximum Working Pressure (MPa) 0.7
Maximum Working Pressure (bar) 7
Maximum Working Pressure (kPa) 700
Measuring Type Meter
Minimum Mix Ratio 0.1:1
Mix Accuracy (%) 1
Number of Catalysts Up to 4
Number of Color Valves N/A
Number of Resin Colors Up to 30
Power Source Electric
Pressure Type High Pressure
Proportioner Type Automatic
Proportioning Type Automatic Electronic
Type Proportioner System
Wetted Material Stainless Steel, Tungsten Carbide, Perfluoroelastomer, PTFE, PPS, UHMWPE
