Check-Mate S20c

11:1 Ratio 20 L S20 Cart Mounted Supply Unit

CM6A2G

s20c-supply-system-ctr s20c-supply-system-right

Check-Mate S20c

11:1 Ratio 20 L S20 Cart Mounted Supply Unit

CM6A2G

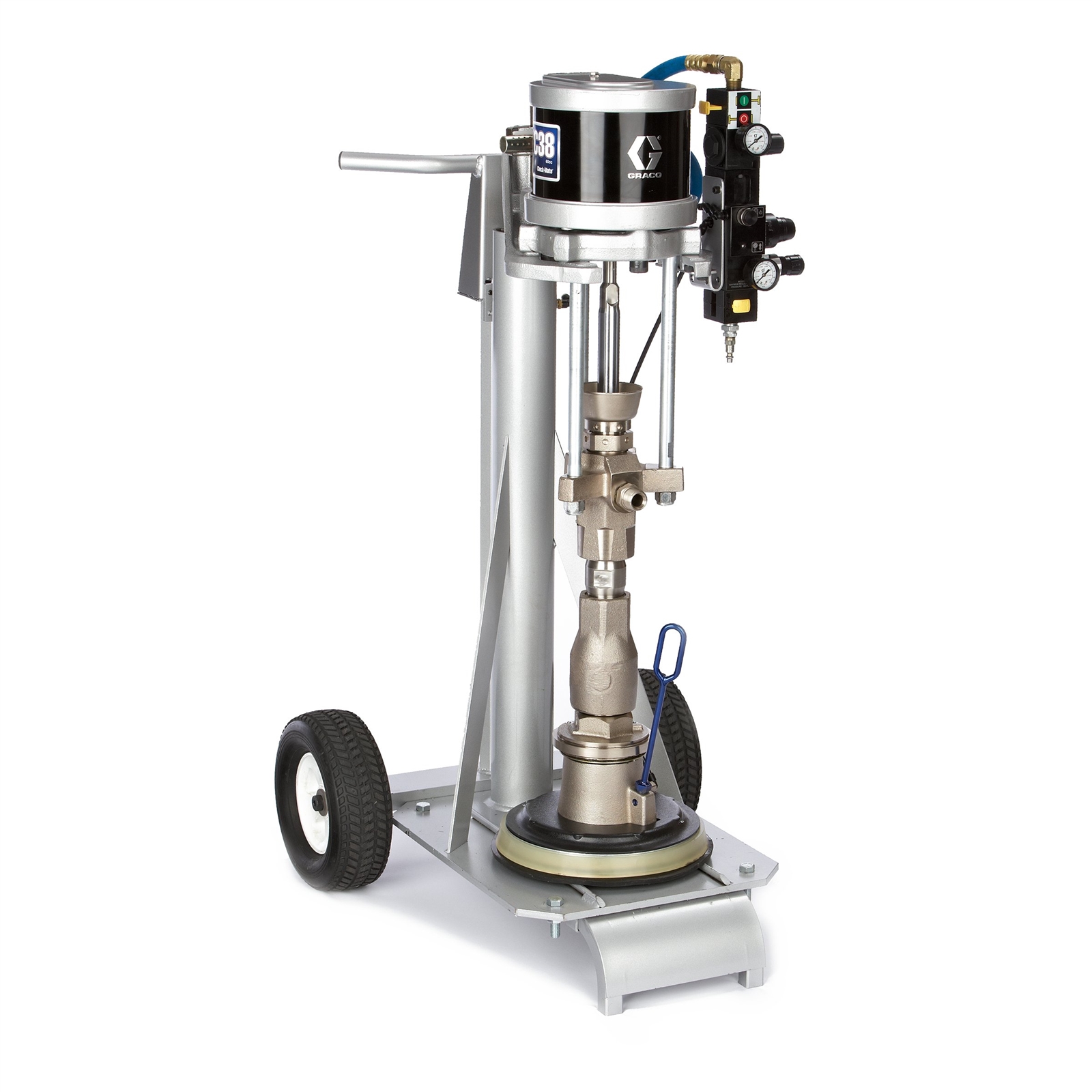

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Features

Product Brochure

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

  • For 20 liter (5 gal) pail sizes. Provides the same proven technologies as the larger systems, but with small NXT Air Motors.

    • Graco S20c - Same as the S20, but includes a cart
  • Industry-first controls give you immediate and important information at the touch of a button
  • Quick placement of pail
  • Platen wipers can be replaced in seconds
  • Pump's quick-disconnect coupler, turbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
  • High-quality, durable parts reduce maintenance time, maximize uptime

Specifications

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type Pail
Material Container Volume (gal) 5.3
Maximum Air Inlet Pressure (psi) 125
Maximum Flow Rate (GPM) 0.9
Maximum Fluid Pressure (psi) 1100
Maximum Height (ft) 7.5
Maximum Height (in) 90
Maximum Operating Temperature (°F) 120
Maximum Working Pressure (MPa) 7.6
Maximum Working Pressure (psi) 1100
Minimum Height (ft) 5.42
Minimum Height (in) 65
Model Check-Mate
Overall Depth (in) 26
Overall Width (in) 22.1
Power Type Pneumatic
Pump Ratio 11:1
Pump Type Priming Piston
Ram Material Carbon Steel
Series S20c
Standards Met CE, ETL
Type Drum Dispense System
Wetted Material Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Aramind Reinforced Elastomer, Rubber-Based PSA, Polyurethane, Polyethylene, Nitrile Rubber, Zinc-Plated Carbon Steel, Buna-N
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type Pail
Material Container Volume (l) 20
Maximum Air Inlet Pressure (bar) 8.62
Maximum Air Inlet Pressure (kPa) 862
Maximum Air Inlet Pressure (kg/cm²) 8.79
Maximum Flow Rate (L/min) 3.4
Maximum Fluid Pressure (bar) 75.8
Maximum Fluid Pressure (kPa) 7580
Maximum Height (cm) 228.6
Maximum Height (m) 2.29
Maximum Height (mm) 2286
Maximum Operating Temperature (°C) 49
Maximum Working Pressure (MPa) 7.6
Maximum Working Pressure (bar) 76
Maximum Working Pressure (kPa) 7600
Minimum Height (cm) 165.1
Minimum Height (m) 1.65
Minimum Height (mm) 1651
Model Check-Mate
Overall Depth (cm) 66.1
Overall Depth (mm) 661
Overall Width (cm) 56.2
Overall Width (mm) 562
Power Type Pneumatic
Pump Ratio 11:1
Pump Type Priming Piston
Ram Material Carbon Steel
Series S20c
Standards Met CE, ETL
Type Drum Dispense System
Wetted Material Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Carbon Steel, Ductile Iron, Electroless Nickel Plating, Zinc Plating, Chrome Plating, High Molecular Weight Polyethylene, Aramind Reinforced Elastomer, Rubber-Based PSA, Polyurethane, Polyethylene, Nitrile Rubber, Zinc-Plated Carbon Steel, Buna-N
