Check-Mate L20c

11:1 Ratio 20 L L20C Supply Unit

CM6B1B

l20c-supply-system-ctr l20c-supply-system-right

Check-Mate L20c

11:1 Ratio 20 L L20C Supply Unit

CM6B1B

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Features

Product Brochure

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

  • For 20 liter (5 gal) pail sizes. Provides the same proven technologies as the larger systems, but with small NXT Air Motors.

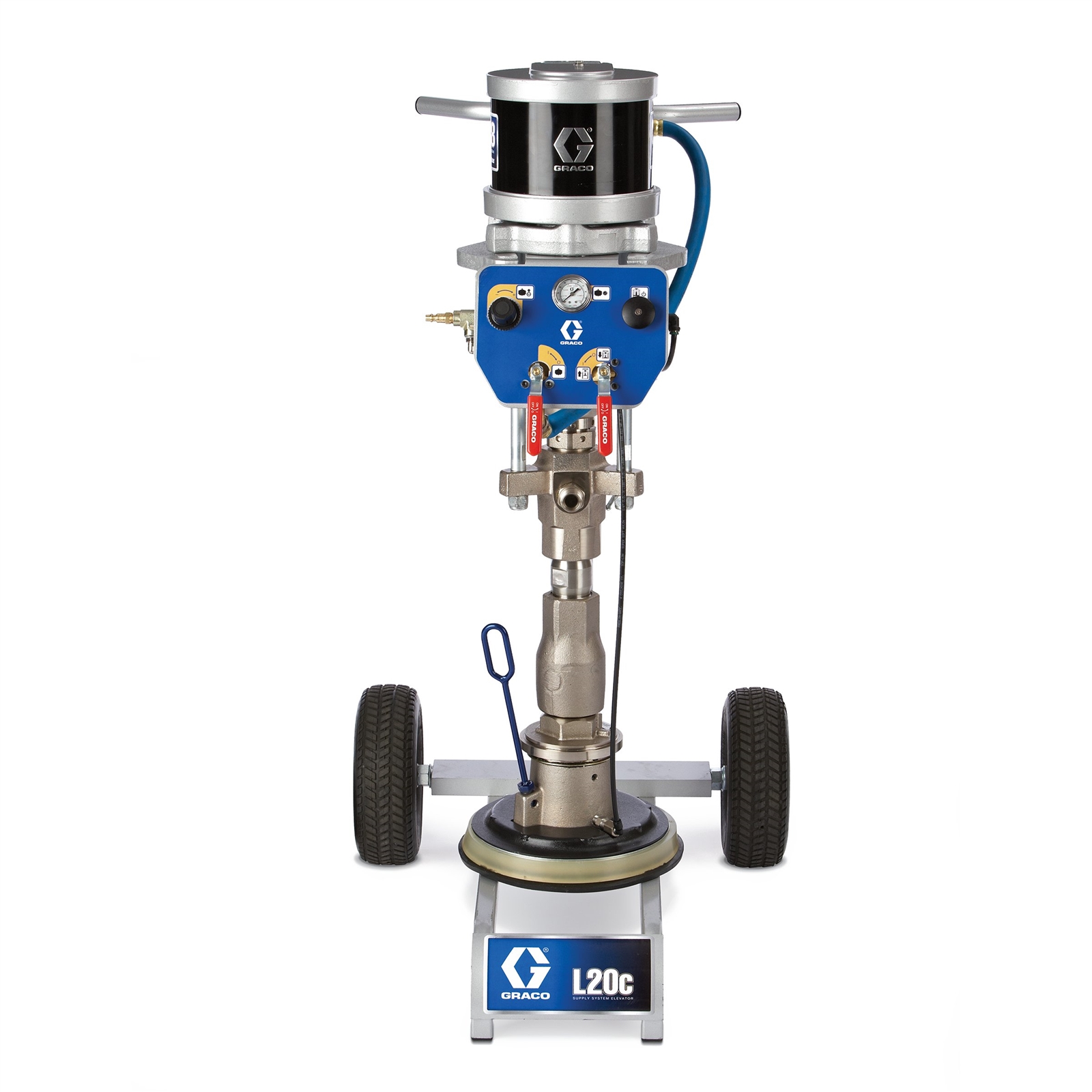

    • Graco L20c - A lightweight, elevator ram on a cart
  • Industry-first controls give you immediate and important information at the touch of a button
  • Quick placement of pail
  • Platen wipers can be replaced in seconds
  • Pump's quick-disconnect coupler, turbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
  • High-quality, durable parts reduce maintenance time, maximize uptime

Specifications

Technical Specifications

Convert to Metric
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type Pail
Control Panel Material N/A
Material Container Volume (gal) 5.3
Maximum Air Inlet Pressure (psi) 125
Maximum Flow Rate (GPM) 0.9
Maximum Fluid Pressure (psi) 1100
Maximum Height (ft) 5.75
Maximum Height (in) 69
Maximum Operating Temperature (°F) 120
Maximum Working Pressure (MPa) 7.6
Maximum Working Pressure (psi) 1100
Minimum Height (ft) 3.67
Minimum Height (in) 44
Model Check-Mate
Overall Depth (in) 21
Overall Width (in) 22
Power Type Pneumatic
Pump Ratio 11:1
Pump Type Priming Piston
Ram Material Carbon Steel
Series L20c
Standards Met CE, ETL
Type Drum Dispense System
Wetted Material Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Leather, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Zinc Plating, Chrome Plating, MaxLife Plating, High Molecular Weight Polyethylene, Nitrile Rubber, Polyurethane, Zinc-Plated Carbon Steel, Buna-N
Ambient/Warm Melt/Hot Melt Ambient
Application Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type Pail
Control Panel Material N/A
Material Container Volume (l) 20
Maximum Air Inlet Pressure (bar) 8.62
Maximum Air Inlet Pressure (kPa) 862
Maximum Air Inlet Pressure (kg/cm²) 8.79
Maximum Flow Rate (L/min) 3.4
Maximum Fluid Pressure (bar) 75.8
Maximum Fluid Pressure (kPa) 7580
Maximum Height (cm) 175.26
Maximum Height (m) 1.75
Maximum Height (mm) 1752.6
Maximum Operating Temperature (°C) 49
Maximum Working Pressure (MPa) 7.6
Maximum Working Pressure (bar) 76
Maximum Working Pressure (kPa) 7600
Minimum Height (cm) 111.76
Minimum Height (m) 1.12
Minimum Height (mm) 1117.6
Model Check-Mate
Overall Depth (cm) 53.34
Overall Depth (mm) 533.4
Overall Width (cm) 55.88
Overall Width (mm) 558.8
Power Type Pneumatic
Pump Ratio 11:1
Pump Type Priming Piston
Ram Material Carbon Steel
Series L20c
Standards Met CE, ETL
Type Drum Dispense System
Wetted Material Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Leather, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Zinc Plating, Chrome Plating, MaxLife Plating, High Molecular Weight Polyethylene, Nitrile Rubber, Polyurethane, Zinc-Plated Carbon Steel, Buna-N
