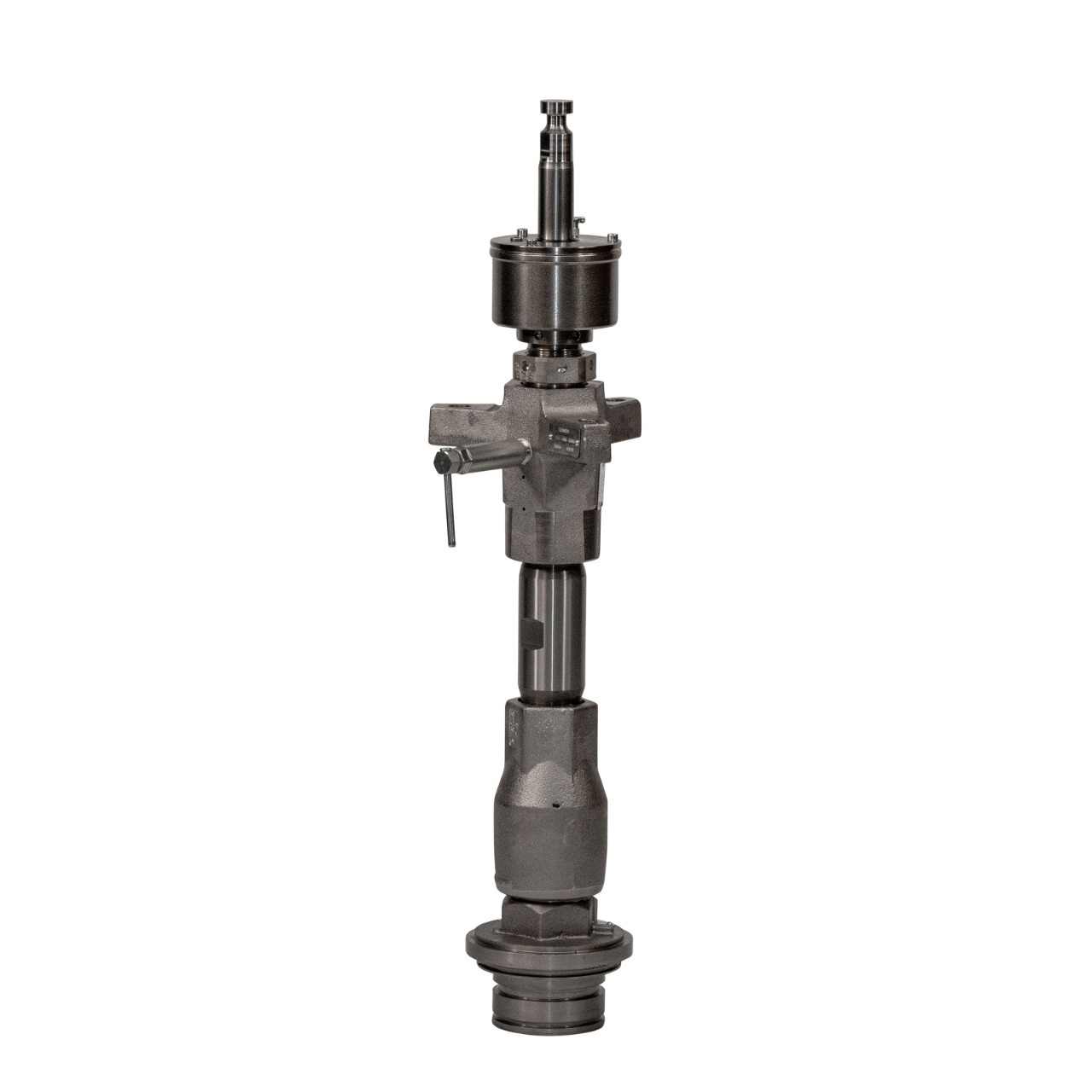

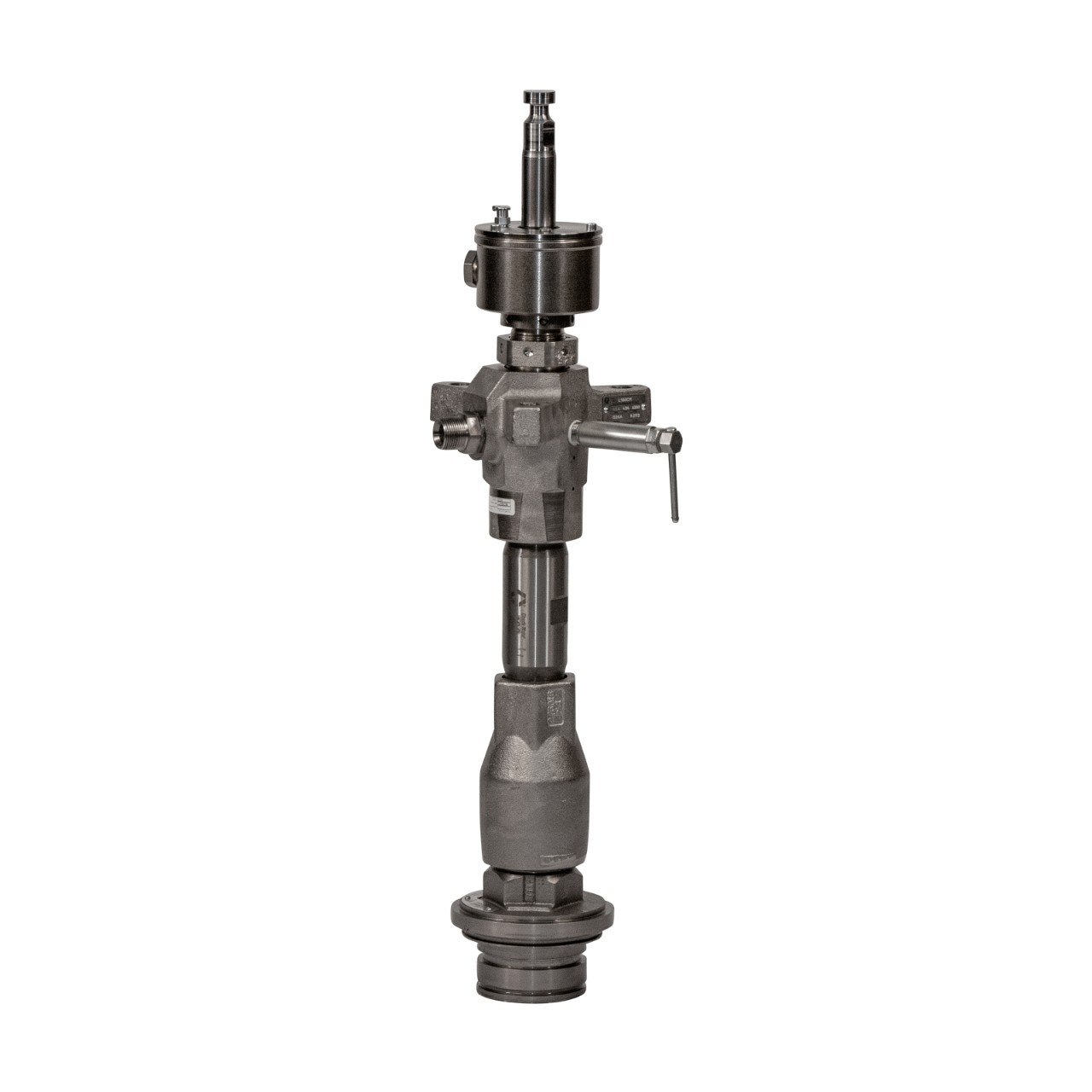

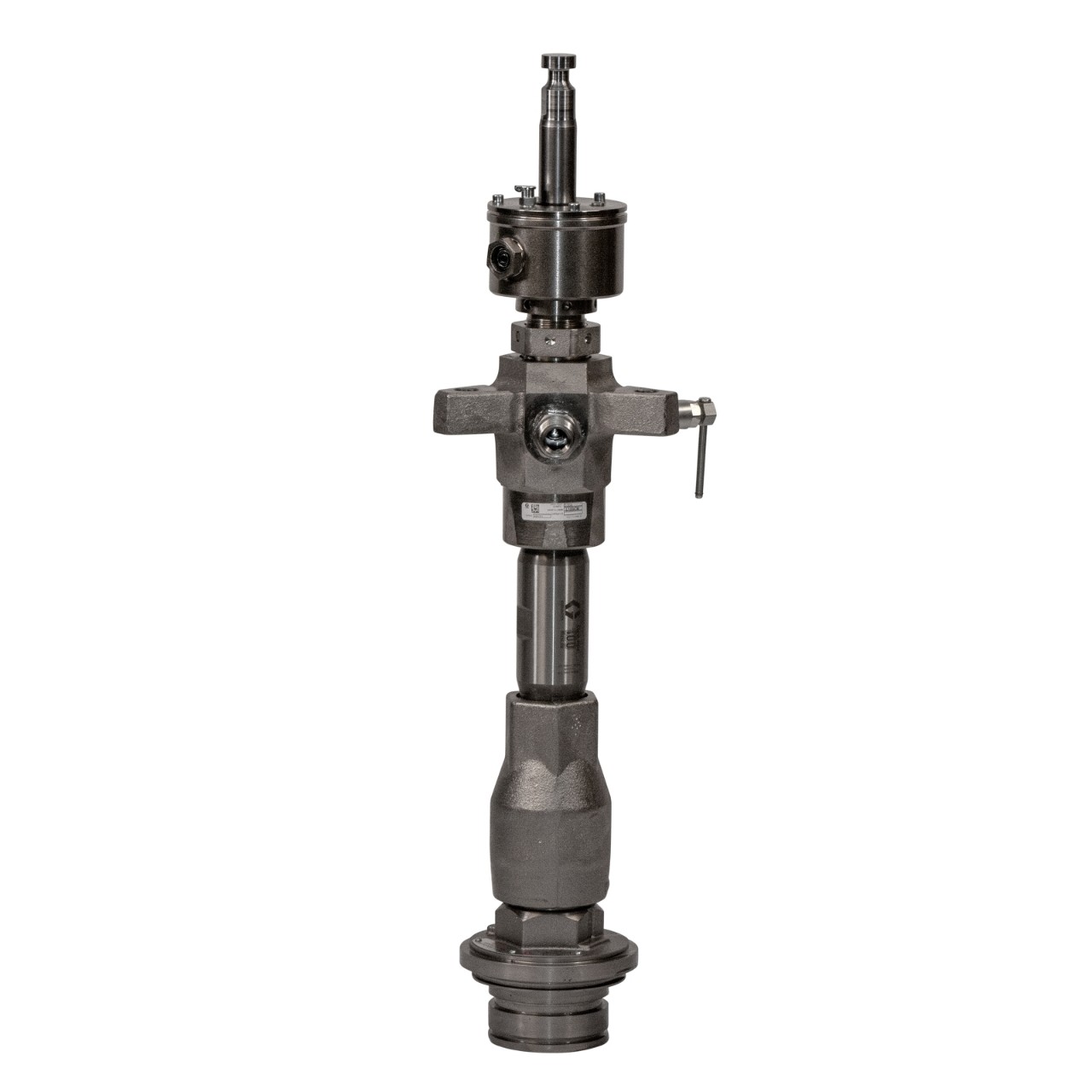

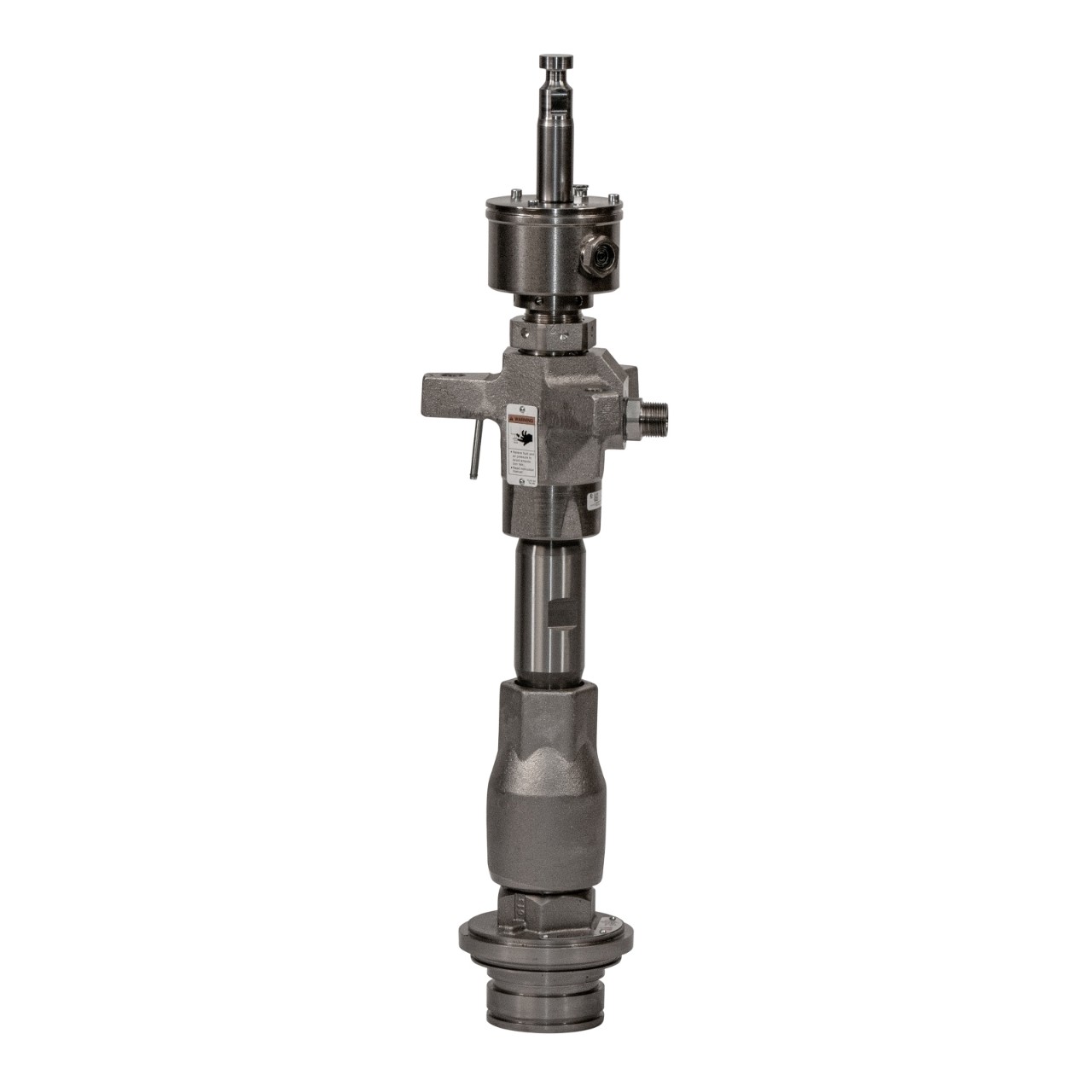

Carbon Steel MaxLife Check-Mate 100 Lower
Part Number: L100CM
Check-Mate
Carbon Steel MaxLife Check-Mate 100 Lower
Part Number: L100CM
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
With priming piston, rod and cylinder.
Specifications & Documents
Technical Specifications
Convert to Metric| Ambient/Warm Melt/Hot Melt | Ambient |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| For Use With | Check-Mate Pump Packages |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Pump Speed (CPM) | 60 |
| Maximum Working Pressure (psi) | 6300 |
| Model | Check-Mate |
| Stroke Length (in) | 4.75 |
| Type | Pump Lower |
| Weight (lb) | 35 |
| Wetted Parts | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Leather, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Zinc Plating, Chrome Plating, MaxLife Plating, High Molecular Weight Polyethylene, Nitrile Rubber, Polyurethane |
| Ambient/Warm Melt/Hot Melt | Ambient |
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| For Use With | Check-Mate Pump Packages |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Output (cm³) | 100 |
| Maximum Pump Speed (CPM) | 60 |
| Maximum Working Pressure (psi) | 6300 |
| Model | Check-Mate |
| Type | Pump Lower |
| Wetted Parts | Alloy Steel, Stainless Steel, Acetal, Carbon-Filled PTFE, Leather, Ductile Iron, Carbon Steel, Electroless Nickel Plating, Zinc Plating, Chrome Plating, MaxLife Plating, High Molecular Weight Polyethylene, Nitrile Rubber, Polyurethane |
