Miniature Meter-Flo

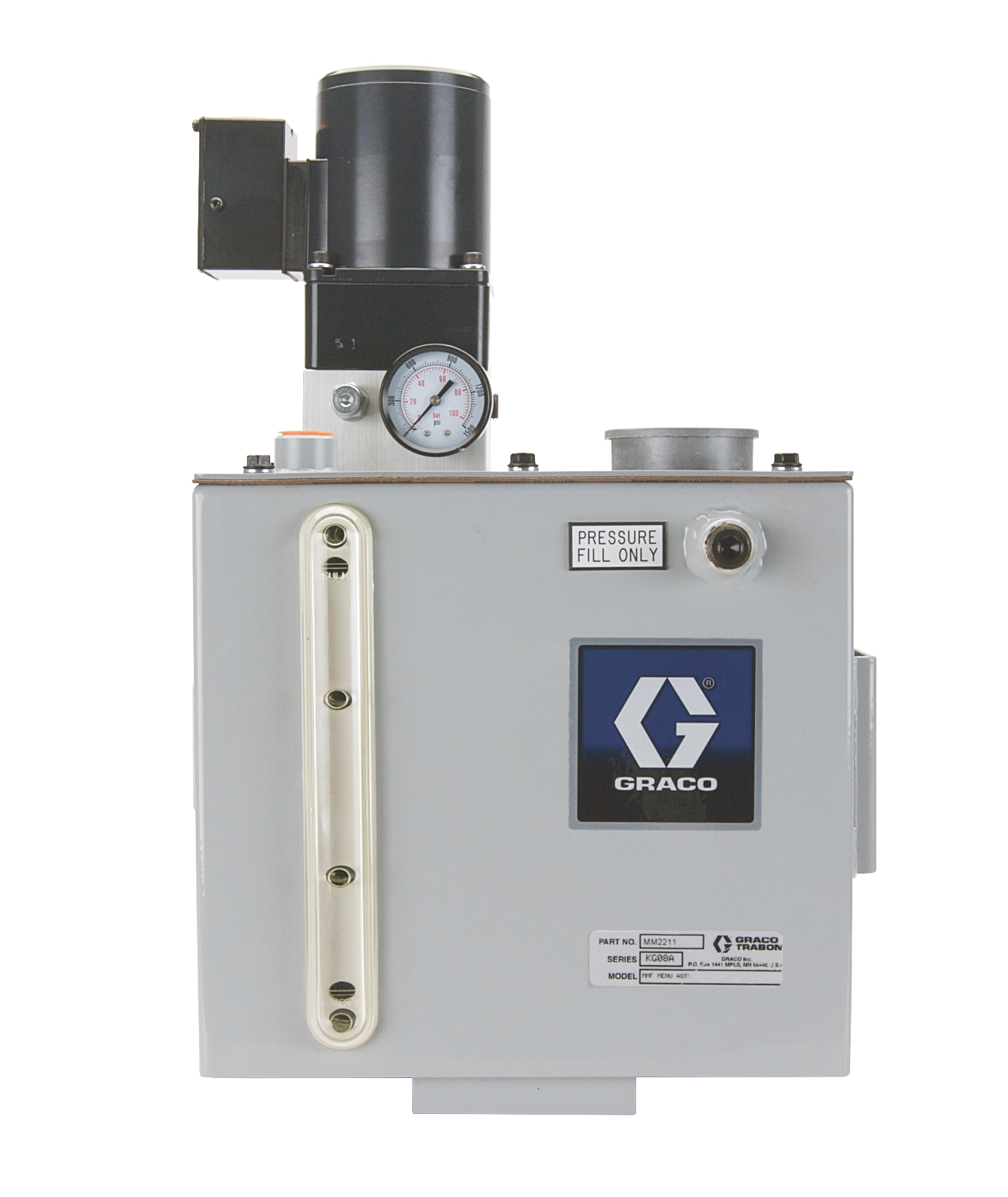

Miniature Meter-Flo® Pump, 3 gal (24 pint) Reservoir, 14 cu in/minute, 1,500 psi (103 bar), HP Switch, Low Level Switch (Reed-Type, SPST)

MM2211

MM2211_Mini_Meter_Flo_FF

Miniature Meter-Flo

Miniature Meter-Flo® Pump, 3 gal (24 pint) Reservoir, 14 cu in/minute, 1,500 psi (103 bar), HP Switch, Low Level Switch (Reed-Type, SPST)

MM2211

Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system. The Miniature Meter-Flo has a rugged steel reservoir and motor assembly withstands the toughest applications.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Designed for use with virtually any type of Series Progressive or Single Line Resistive oil lubrication system. The Miniature Meter-Flo has a rugged steel reservoir and motor assembly withstands the toughest applications.

  • Capable of high volumetric output operating continuously at pressures up to 1,000 psi (69 bar)
  • Compact with several options to create a complete system using feedback and control
  • Nominal displacements of 5 cu. in./min. (82 cc/mm.)
  • An adjustable internal relief protects pump from excessive pressures. Factory set at 1,000 psi (69 bar)
  • Reservoir with removable covers, sized at 3 gallons (11.4 liters)
  • Reservoir has a suction line strainer, return line port, visual level gauge, pressure gauge and filler/strainer with spring return cap
  • Options include low level switch, high pressure indicator, and lube cycle timer

Specifications

Technical Specifications

Convert to Metric
Application In-Plant Machinery
Compatible Material Oil
Compatible Metering Device Series Progressive
Fluid Outlet Size (in) 0.25
Fluid Outlet Thread Type NPT
For Use With Series Progressive Oil Lubrication Systems, Single Line Resistive Oil Lubrication Systems
Includes Level Switch
Material Metal
Maximum Flow Rate (ci/min) 5
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (psi) 1500
Maximum cST Grade (cST) 15000
Minimum Voltage (V ac) 103.5
Minimum cST Grade (cST) 160
Overall Depth (in) 12
Overall Height (in) 17.29
Overall Width (in) 12.72
Power Connection Type 3 Wire Hook-Up Inside Junction Box
Power Type Electric
Reservoir Size (gal) 3
Reservoir Size (pt) 24
Type Electric Piston Pump
Voltage (V ac) 115
Application In-Plant Machinery
Compatible Material Oil
Compatible Metering Device Series Progressive
Fluid Outlet Size (cm) 0.6350
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPT
For Use With Series Progressive Oil Lubrication Systems, Single Line Resistive Oil Lubrication Systems
Includes Level Switch
Material Metal
Maximum Working Pressure (MPa) 10.3
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10300
Maximum cST Grade (cST) 15000
Minimum Voltage (V ac) 103.5
Minimum cST Grade (cST) 160
Overall Depth (cm) 30.5
Overall Depth (mm) 305
Overall Height (cm) 43.9
Overall Height (mm) 439
Overall Width (cm) 32.3
Overall Width (mm) 323
Power Connection Type 3 Wire Hook-Up Inside Junction Box
Power Type Electric
Reservoir Size (L) 11.36
Type Electric Piston Pump
Voltage (V ac) 115
