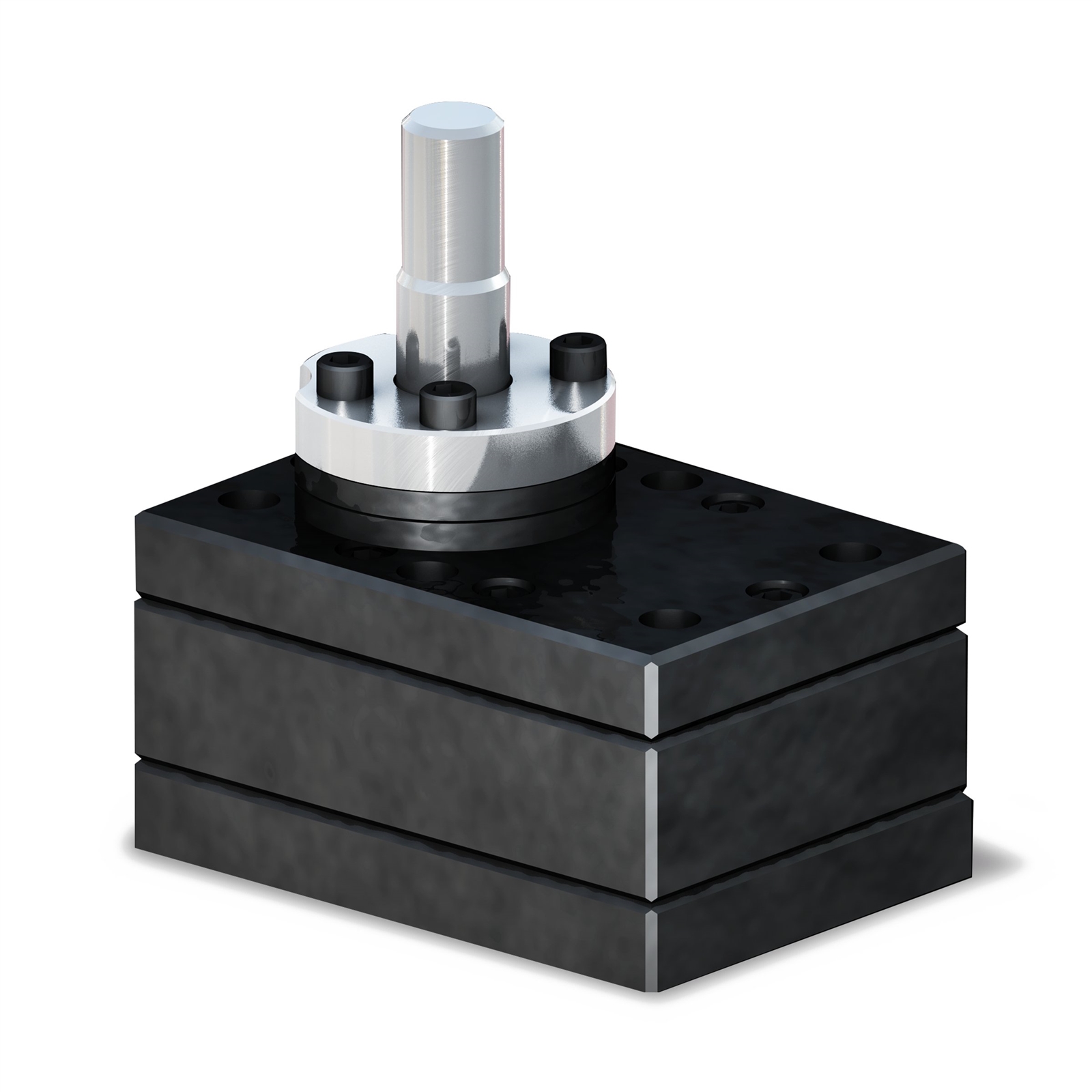

20cc Heated 15m Controls PGM System with Remote Mount Valve
PG2246
PGM
20cc Heated 15m Controls PGM System with Remote Mount Valve
PG2246
Features
The Graco PGM Metering System delivers a smooth, consistent bead dispense – even with high-viscosity materials. And because it also provides higher flow rates, manufacturing facilities can dramatically improve production capacity and ROI.
Improve your production capacity with PGM's high flow rates
- Provides high flow rates - Up to 1600 cc/min
- Smooth, consistent bead dispense - even at high flow rates
- Offers clean starts and stops for less material waste
- Bead control saves material costs
- Wrist-mountable design assures precise dosing control

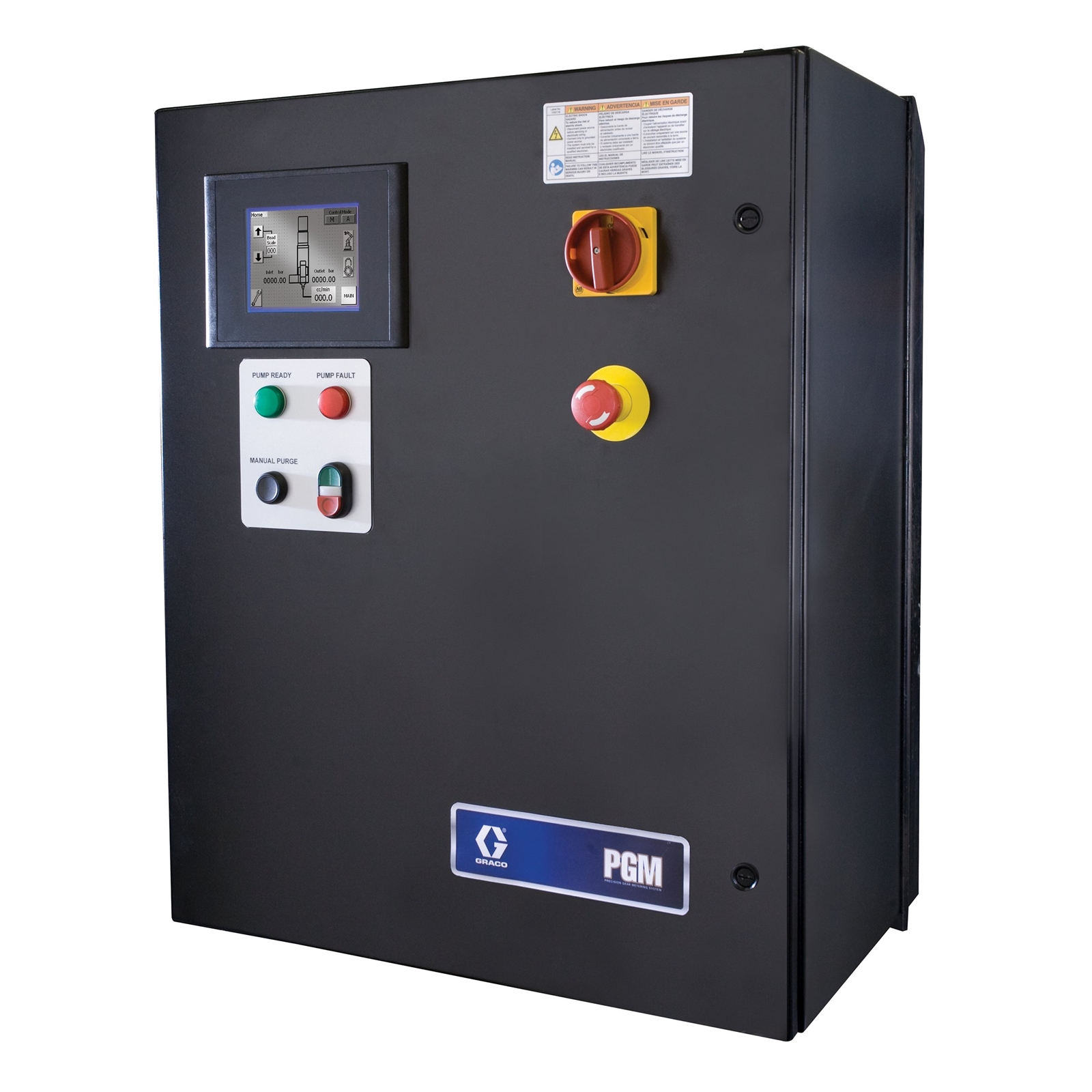

- Touch-screen controls are easy to use, easy to integrate
Specifications
Technical Specifications
Convert to Metric| Ambient/Warm Melt/Hot Melt | Ambient;Warm Melt;Hot Melt |
|---|---|
| Amperage (A) | 18.5 |
| Application | Bonding, Sealing, Gasketing |
| Applicator Type | Automatic |
| Component Type | Single Component |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 0.42 |
| Maximum Flow Rate (cc/min) | 1600 |
| Maximum Fluid Viscosity (cP) | 1000000 |
| Maximum Operating Temperature (°F) | 400 |
| Maximum Working Pressure (MPa) | 17.2 |
| Maximum Working Pressure (psi) | 2500 |
| Minimum Flow Rate (GPM) | 0.011 |
| Minimum Flow Rate (cc/min) | 40 |
| Minimum Fluid Viscosity (cP) | 1000 |
| Overall Depth (in) | 8.9 |
| Overall Height (in) | 21.75 |
| Overall Width (in) | 9.5 |
| Phase | 1 |
| Power Source | Electric |
| Sound Power Level (dB(A)) | 79 |
| Sound Pressure Level (dB(A)) | 72 |
| Type | Metering System |
| Weight (lb) | 60 |
| Wetted Material | Stainless Steel, Chrome, Carbide, Acetal Plastic, PTFE, Chemical Resistant O-Rings |
| Ambient/Warm Melt/Hot Melt | Ambient;Warm Melt;Hot Melt |
| Amperage (A) | 18.5 |
| Application | Bonding, Sealing, Gasketing |
| Applicator Type | Automatic |
| Component Type | Single Component |
| Frequency (Hz) | 50/60 |
| Gun Activation | Automatic |
| Maximum Air Inlet Pressure (bar) | 6.9 |
| Maximum Air Inlet Pressure (kPa) | 690 |
| Maximum Flow Rate (L/min) | 1.6 |
| Maximum Flow Rate (cc/min) | 1600 |
| Maximum Fluid Viscosity (cP) | 1000000 |
| Maximum Operating Temperature (°C) | 204 |
| Maximum Working Pressure (MPa) | 17.2 |
| Maximum Working Pressure (bar) | 172 |
| Maximum Working Pressure (kPa) | 17200 |
| Minimum Flow Rate (L/min) | 0.04 |
| Minimum Flow Rate (cc/min) | 40 |
| Minimum Fluid Viscosity (cP) | 1000 |
| Overall Depth (cm) | 22.6 |
| Overall Depth (mm) | 226 |
| Overall Height (cm) | 55.3 |
| Overall Height (mm) | 553 |
| Overall Width (cm) | 24.1 |
| Overall Width (mm) | 241 |
| Phase | 1 |
| Power Source | Electric |
| Sound Power Level (dB(A)) | 79 |
| Sound Pressure Level (dB(A)) | 72 |
| Type | Metering System |
| Weight (kg) | 27.22 |
| Wetted Material | Stainless Steel, Chrome, Carbide, Acetal Plastic, PTFE, Chemical Resistant O-Rings |
