PR70s: 1:1 to 24:1, Fixed or Variable Dispensing System, Servo Controlled

Part Number: PR70s

product image

PR70 s

PR70s: 1:1 to 24:1, Fixed or Variable Dispensing System, Servo Controlled

Part Number: PR70s

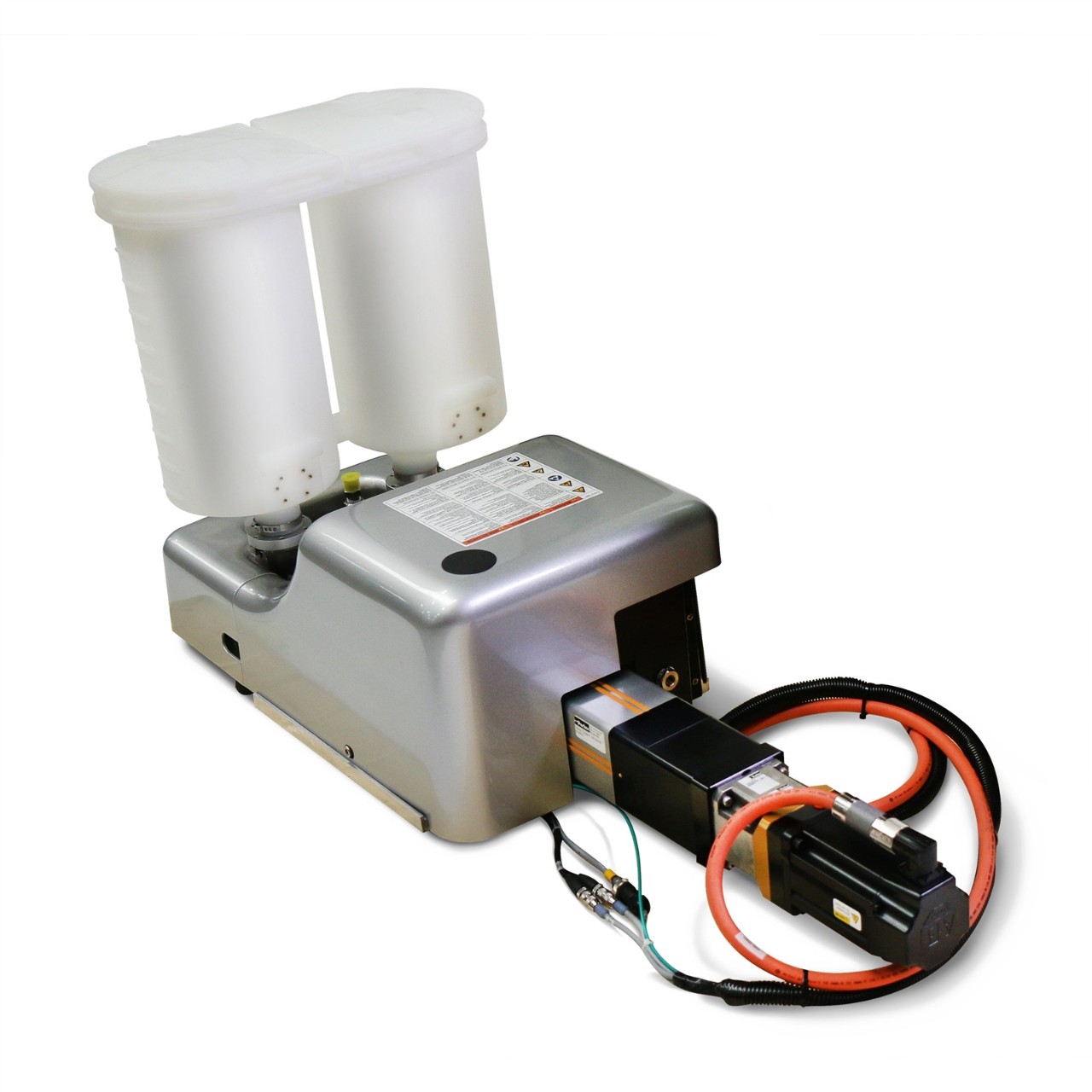

The PR70s is our servo controlled meter, mix, dispense system. Available in fixed or variable ratio system.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The PR70s is our servo controlled meter, mix, dispense system. Available in fixed or variable ratio system.
  • Reliable Servo motor control
  • Exceptional performance with materials from 1:1 to 12:1 for the fixed ratio configuration, or 1:1 to 24:1 for the variable ratio configuration
  • MD2 valve high pressure accuracy with multiple seat styles and adjustable snuffback for clean, precise dispensing
  • Proven ratio accuracy of +/- 1%

Specifications & Documents

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 15, 40
Construction Carbide, Hard Chrome, Chromex, UHMWPE, 303 Stainless Steel, 17-ph Stainless Steel, 304 Stainless Steel
Controls Yes
Drive Method Servo motor
Effective Area (in²) 0.124-1.49
Fixed/Variable Ratio Fixed;Variable
Fluid Outlet Size (in) 3/16, 1/4, 3/8, 1/2, 3/4
Frequency (Hz) 50/60
Maximum Air Inlet Pressure (psi) 100
Maximum Cycle Rate (CPM) 15
Maximum Fluid Working Pressure (MPa) 20.68
Maximum Fluid Working Pressure (psi) 3000
Maximum Operating Temperature (°F) 160, 120, 300
Maximum Stroke Length (in) 1.5
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (psi) 3000
Minimum Stroke Length (in) 0.23
Mix Ratio 1:1-12:1
Model PR70
Overall Depth (in) 21
Overall Height (in) 38
Overall Width (in) 52
Phase 1
Power Input (V) 240
Pump Cycles per 1L 14.3-500
Pump Ratio 1:1;12:1
Series s
Sound Pressure Level (dB(A)) 82
Type Dispensing System
Volume Per Cycle (in³) 0.13-4.3
Weight (lb) 120, 330
Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Amperage (A) 15, 40
Construction Carbide, Hard Chrome, Chromex, UHMWPE, 303 Stainless Steel, 17-ph Stainless Steel, 304 Stainless Steel
Controls Yes
Drive Method Servo motor
Effective Area (mm²) 80-960
Fixed/Variable Ratio Fixed;Variable
Fluid Outlet Size (in) 3/16, 1/4, 3/8, 1/2, 3/4
Frequency (Hz) 50/60
Maximum Air Inlet Pressure (bar) 6.9
Maximum Air Inlet Pressure (kPa) 690
Maximum Air Inlet Pressure (psi) 100
Maximum Cycle Rate (CPM) 15
Maximum Fluid Working Pressure (MPa) 20.68
Maximum Fluid Working Pressure (bar) 206.8
Maximum Fluid Working Pressure (psi) 3000
Maximum Operating Temperature (°C) 70, 50, 150
Maximum Stroke Length (mm) 38.1
Maximum Working Pressure (MPa) 21
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 20700
Maximum Working Pressure (psi) 3000
Minimum Stroke Length (mm) 5.8
Mix Ratio 1:1-12:1
Model PR70
Overall Depth (cm) 53.3
Overall Depth (mm) 533
Overall Height (cm) 96.5
Overall Height (mm) 965
Overall Width (cm) 132.1
Overall Width (mm) 1321
Phase 1
Power Input (V) 240
Pump Cycles per 1L 14.3-500
Pump Ratio 1:1;12:1
Series s
Sound Pressure Level (dB(A)) 82
Type Dispensing System
Volume Per Cycle (cc) 2-70
