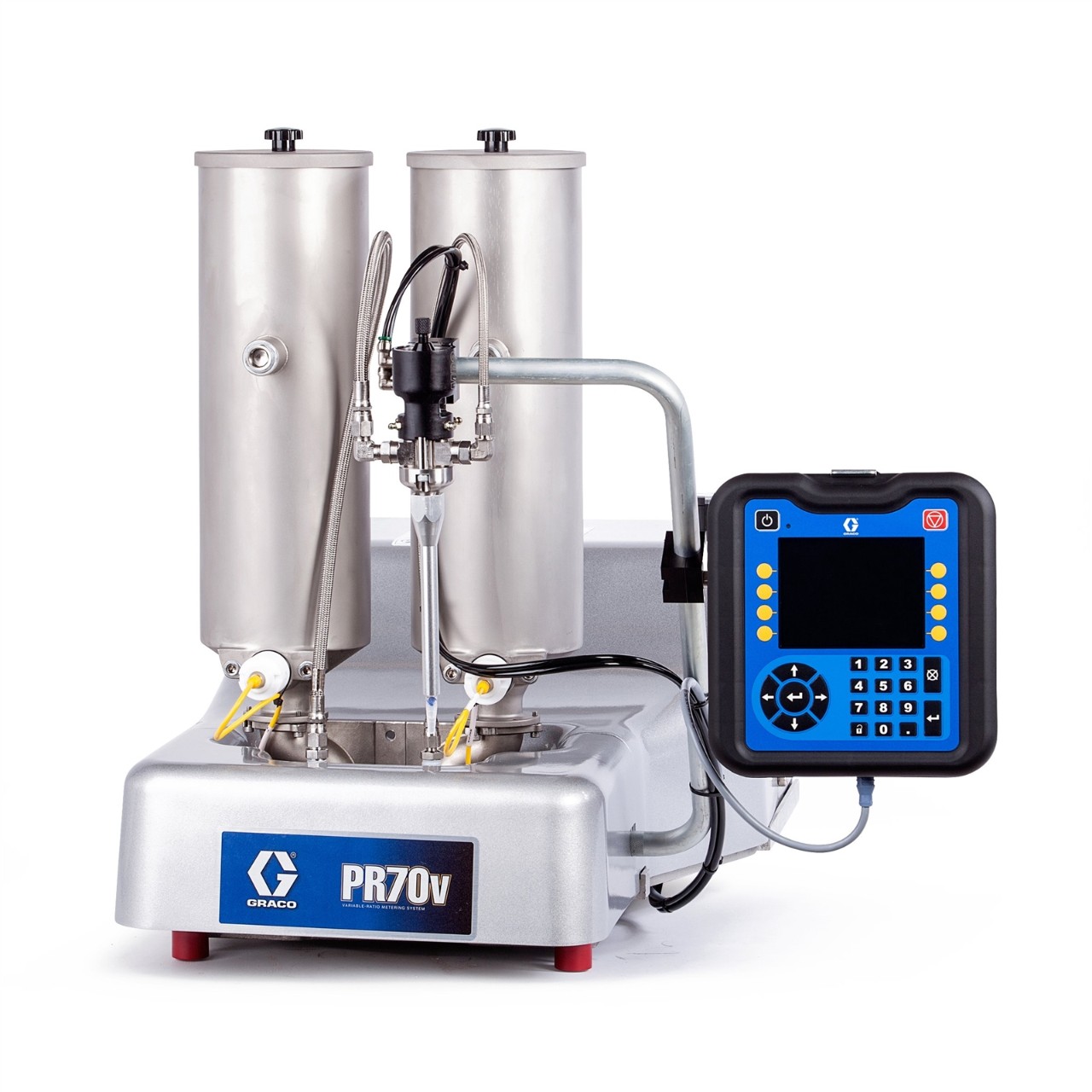

PR70v, 1:1 to 24:1, Variable Ratio Dispensing System
Part Number: PR70v
PR70 v
PR70v, 1:1 to 24:1, Variable Ratio Dispensing System
Part Number: PR70v
For variable ratio dispensing, the PR70v handles ratios from 1:1 to 24:1 and offers superior control with an optional Advanced Display Module.
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
For variable ratio dispensing, the PR70v handles ratios from 1:1 to 24:1 and offers superior control with an optional Advanced Display Module.
- Handles a wide range of material formulations
- Material ratios from 1:1 to 24:1
- Proven ratio accuracy of +/- 1%
- Versatile – ideal for applications using up to 70 cc shot sizes
- Multiple levels of user interface to best support your application
Specifications & Documents
Technical Specifications
Convert to MetricAir Inlet Size (in) | 1/4 |
---|---|
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Construction | Carbide, Hard Chrome, Chromex, UHMWPE, 303 Stainless Steel, 17-ph Stainless Steel, 304 Stainless Steel |
Effective Area (in²) | 0.124-1.49 |
Fixed/Variable Ratio | Fixed;Variable |
Flow Control Type | Fluid Flow Control |
Fluid Outlet Size (in) | 3/16, 1/4, 3/8, 1/2, 3/4 |
Frequency (Hz) | 50/60 |
Large Air Cylinder Effective Area (in²) | 16 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 30 |
Maximum Fluid Working Pressure (MPa) | 20.68 |
Maximum Fluid Working Pressure (psi) | 3000 |
Maximum Operating Temperature (°F) | 160, 120 |
Maximum Stroke Length (in) | 1.5 |
Maximum Working Pressure (MPa) | 21 |
Maximum Working Pressure (psi) | 3000 |
Minimum Stroke Length (in) | 0.23 |
Mix Ratio | 1:1-12:1 |
Model | PR70 |
Overall Depth (in) | 30.6 |
Overall Height (in) | 26.39, 27.37 |
Overall Width (in) | 18.49, 15.5 |
Phase | 1 |
Power Input (V) | 100-240, 208-240, 120, 240 |
Pump Cycles per 1L | 14.3-500 |
Pump Ratio | 1:1, 12:1 |
Series | v |
Small Air Cylinder Effective Area (in²) | 7.07 |
Type | Dispensing System |
Volume Per Cycle (in³) | 0.13-4.3 |
Weight (lb) | 120, 330 |
Air Inlet Size (cm) | 0.635 |
Air Inlet Size (in) | 1/4 |
Air Inlet Size (mm) | 6.35 |
Air Inlet Thread Gender | Female |
Air Inlet Thread Type | NPT |
Construction | Carbide, Hard Chrome, Chromex, UHMWPE, 303 Stainless Steel, 17-ph Stainless Steel, 304 Stainless Steel |
Effective Area (mm²) | 80-960 |
Fixed/Variable Ratio | Fixed;Variable |
Flow Control Type | Fluid Flow Control |
Fluid Outlet Size (in) | 3/16, 1/4, 3/8, 1/2, 3/4 |
Frequency (Hz) | 50/60 |
Large Air Cylinder Effective Area (mm²) | 10260 |
Maximum Air Inlet Pressure (bar) | 6.9 |
Maximum Air Inlet Pressure (kPa) | 690 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Cycle Rate (CPM) | 30 |
Maximum Fluid Working Pressure (MPa) | 20.68 |
Maximum Fluid Working Pressure (bar) | 206.8 |
Maximum Fluid Working Pressure (psi) | 3000 |
Maximum Operating Temperature (°C) | 70, 50 |
Maximum Stroke Length (mm) | 38.1 |
Maximum Working Pressure (MPa) | 21 |
Maximum Working Pressure (bar) | 207 |
Maximum Working Pressure (kPa) | 20700 |
Maximum Working Pressure (psi) | 3000 |
Minimum Stroke Length (mm) | 5.8 |
Mix Ratio | 1:1-12:1 |
Model | PR70 |
Overall Depth (cm) | 77.7 |
Overall Depth (mm) | 777 |
Phase | 1 |
Power Input (V) | 100-240, 208-240, 120, 240 |
Pump Cycles per 1L | 14.3-500 |
Pump Ratio | 1:1, 12:1 |
Series | v |
Small Air Cylinder Effective Area (mm²) | 4560 |
Type | Dispensing System |
Volume Per Cycle (cc) | 2-70 |
