ProBell

ProBell Applicator, Hollow Wrist Robot, Solventborne, 30 mm bell cup, 1.5 mm nozzle

R3A260

ProBell_HW_30mm ProBell_Application_9719

ProBell

ProBell Applicator, Hollow Wrist Robot, Solventborne, 30 mm bell cup, 1.5 mm nozzle

R3A260

With our ProBell rotary applicator, you get high performance spraying with intuitive controls and a modular, scalable design. Plus you have the flexibility to start small with one controller and work your way up to more, or install a complete system all at once, accommodating your specific installat... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

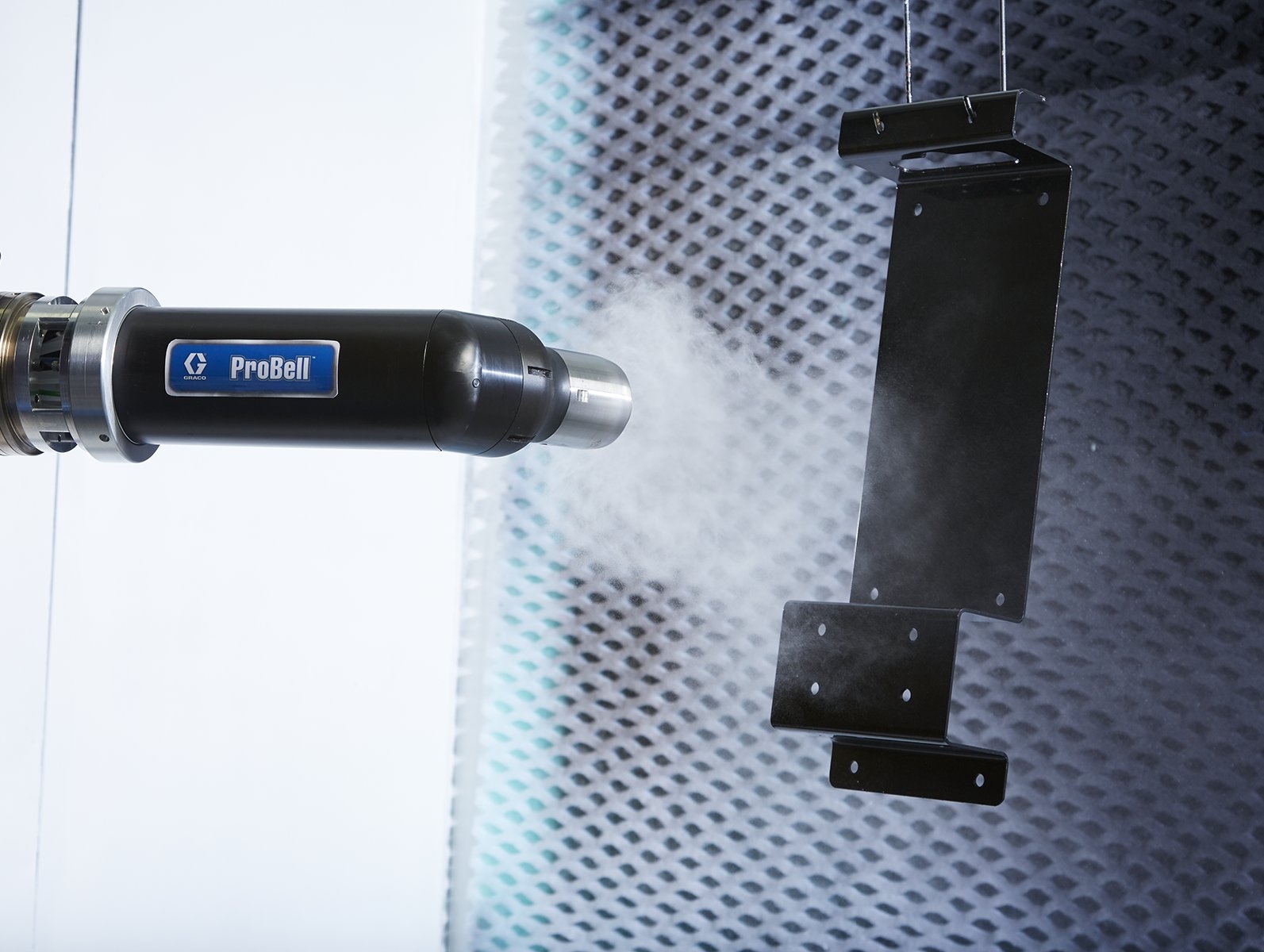

With our ProBell rotary applicator, you get high performance spraying with intuitive controls and a modular, scalable design. Plus you have the flexibility to start small with one controller and work your way up to more, or install a complete system all at once, accommodating your specific installation and budget needs. And at 60,000 RPM, you not only get high production speeds for your industrial application, but the precision balanced cup also gives you low vibration.
  • Modularity allows customers to design a system to meet their production needs and budget
  • Easy system integration with existing PLC or new installation
  • Controller interface allows for easy management of spray parameters
  • Improved safety and reliability with a low voltage cable and adjustable arc detection settings.
  • Configurations for a Hollow Wrist Robot, Solid Wrist Robot, Fixed Mount or Reciprocator Mount
  • Bell cups are optimized for superior spraying with a variety of pattern sizes and flow rates
  • 2 different aluminum finishes (including high wear for abrasive materials) or composite construction for bell cups
  • Compact, lightweight design allows for lower payload robots or reciprocators to be used - saving money

Specifications

Technical Specifications

Convert to Metric
Applicator Type Automatic
Bell Cup Edge Type Serrated
Bell Cup Material Aluminum Standard
Bell Cup Size (in) 1.2
Compatible Paint Type Solventborne
For Use With Hollow Wrist Bell Systems
Gun Activation Automatic
Gun Model Solventborne
Gun Mount Hollow Wrist
Gun Type Rotary Applicator
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Current Draw (µA) 150
Maximum Fluid Pressure (MPa) 1.03
Maximum Fluid Pressure (psi) 150
Maximum Turbine Speed (RPM) 60000
Maximum Viscosity (cSt) 150
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (psi) 150
Minimum Bearing Air Pressure (MPa) 0.5
Minimum Bearing Air Pressure (psi) 70
Minimum Viscosity (cSt) 30
Nozzle Size (in) 0.059
Output Voltage (kV) 100
Spray Type Rotary Bell, Electrostatic
Technology Type Rotary Atomization
Type Rotary Applicator
Applicator Type Automatic
Bell Cup Edge Type Serrated
Bell Cup Material Aluminum Standard
Bell Cup Size (cm) 3
Bell Cup Size (mm) 30
Compatible Paint Type Solventborne
For Use With Hollow Wrist Bell Systems
Gun Activation Automatic
Gun Model Solventborne
Gun Mount Hollow Wrist
Gun Type Rotary Applicator
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7.0
Maximum Air Pressure (kPa) 700
Maximum Current Draw (µA) 150
Maximum Fluid Pressure (MPa) 1.03
Maximum Fluid Pressure (bar) 10.3
Maximum Fluid Pressure (kPa) 1030
Maximum Turbine Speed (RPM) 60000
Maximum Viscosity (cSt) 150
Maximum Working Pressure (MPa) 1
Maximum Working Pressure (bar) 10.3
Maximum Working Pressure (kPa) 1030
Minimum Bearing Air Pressure (MPa) 0.5
Minimum Bearing Air Pressure (bar) 5
Minimum Viscosity (cSt) 30
Nozzle Size (cm) 0.15
Nozzle Size (mm) 1.5
Output Voltage (kV) 100
Spray Type Rotary Bell, Electrostatic
Technology Type Rotary Atomization
Type Rotary Applicator
