SaniForce 1590 HS

SaniForce 1590 HS Ball Check Diaphragm Pump with DIN DN 50 Sanitary Connection, Overmolded EPDM Diaph & PTFE Ball

SBDAAA

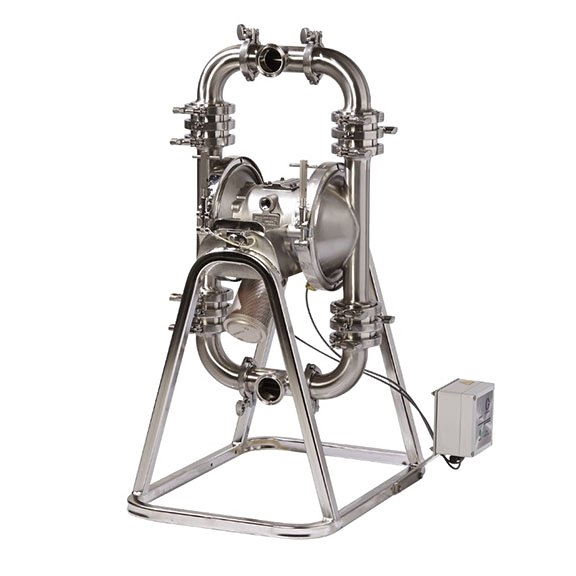

SaniForce_3A_1590_SS_SS

SaniForce 1590 HS

SaniForce 1590 HS Ball Check Diaphragm Pump with DIN DN 50 Sanitary Connection, Overmolded EPDM Diaph & PTFE Ball

SBDAAA

Ideal for applications that benefit from the convenience of a quick knockdown design, Graco’s 1590 HS sanitary pumps can be disassembled in five minutes or less.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

Ideal for applications that benefit from the convenience of a quick knockdown design, Graco’s 1590 HS sanitary pumps can be disassembled in five minutes or less.

  • SaniForce 1590 HS Diaphragm Pump

    • Pumps up to 90 gpm (341 lpm)
    • Pump rotates 360º for easy draining
    • Easy to clean, quick knockdown, rotating design
    • Features our lube free, non-sticking air valve
    • Transfer product from a variety of containers to smaller receptacles - up to 15,000 cps
    • Suitable to pump products such as: fruit filling, spaghetti sauce, muffin and cake batter, oils and lotions
  • Air Valve

    • Fewer moving parts
    • Three-way pilot valve for true non-sticking operation
    • Externally serviceable for quick, inexpensive repairs
    • Elimination of o-rings and spool valve prevents problems associated with competitive pumps
  • PTFE/EPDM Diaphragms

    • Overmolded diaphragm plate with PTFE on the fluid side and EPDM on the air side on Graco's PTFE/EPDM diaphragms so there's no place to harbor bacteria
    • Improve wear and diaphragm life with no exposed diaphragm plate on the fluid side
    • Longer diaphragm life in abrasive applications that still require PTFE

Specifications

Technical Specifications

Convert to Metric
Air Exhaust Port Size (in) 3/4
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/2
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material PTFE
Center Section Material Stainless Steel
Compatible Material Food, Personal Care, & Pharmaceutical
Connection Type DIN
Diaphragm Material EPDM Overmold
Fluid Inlet Size (in) 2
Fluid Outlet Size (in) 2
Fluid Section Material Stainless Steel
For Use With Food, Personal Care, Pharmaceutical
Includes Pump Stand
Manifold Configuration Center Port
Manifold O-Ring Material EPDM
Material Stainless Steel
Maximum Air Consumption (SCFM) 125
Maximum Air Pressure (MPa) 0.8
Maximum Air Pressure (psi) 120
Maximum Cycle Rate (CPM) 200
Maximum Flow Rate (GPM) 100
Maximum Fluid Pressure (MPa) 0.8
Maximum Fluid Pressure (psi) 120
Maximum Solid Size (in) 0.625
Power Source Air
Seat Material Stainless Steel
Standards Met ATEX, CE, FDA
Type Pneumatic Diaphragm Pump
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Sanitary
Ball Material PTFE
Center Section Material Stainless Steel
Compatible Material Food, Personal Care, & Pharmaceutical
Connection Type DIN
Diaphragm Material EPDM Overmold
Fluid Inlet Size (cm) 5.08
Fluid Inlet Size (mm) 50.8
Fluid Outlet Size (cm) 5.08
Fluid Outlet Size (mm) 50.8
Fluid Section Material Stainless Steel
For Use With Food, Personal Care, Pharmaceutical
Includes Pump Stand
Manifold Configuration Center Port
Manifold O-Ring Material EPDM
Material Stainless Steel
Maximum Air Pressure (MPa) 0.8
Maximum Air Pressure (bar) 8
Maximum Air Pressure (kPa) 800
Maximum Cycle Rate (CPM) 200
Maximum Flow Rate (L/min) 379
Maximum Fluid Pressure (MPa) 0.8
Maximum Fluid Pressure (bar) 8
Maximum Fluid Pressure (kPa) 800
Maximum Solid Size (cm) 1.5875
Maximum Solid Size (mm) 15.875
Power Source Air
Seat Material Stainless Steel
Standards Met ATEX, CE, FDA
Type Pneumatic Diaphragm Pump
