Fusion FX

Breakthrough Spray Gun Technology

The Smallest, Lightest, Best Balanced Gun Ever Built



Introducing the Fusion FX, the biggest breakthrough technology in spray foam and polyurea designed to deliver the highest quality results. Created with the contractor in mind; built to be the smallest, lightest, and best balanced gun ever.

Lightest Gun On The Market

Most Balanced Gun On The Market

Easiest To Service And Maintain

Easiest Access to Mix Chamber

New Spray Technology

Fusion FX

Designed to Deliever High Quality Results

390 PC Cordless
FX Cartridge FX Cartridge FX Cartridge
FX Cartridge

FX Cartridge

ProConnect Design

  • Designed for fast and simple gun rebuilds
  • DuoFlo valving technology eliminates side seals
  • A perfect rebuild every time
  • Precision Control and Mixing
close
Air Cap/Mix Chamber Air Cap/Mix Chamber Air Cap/Mix Chamber
Air Cap/Mix Chamber

Air Cap/Mix Chamber

RapidSwap Mix Chamber

  • Mix chamber can be accessed in seconds by just removing the air cap
  • Easily change chamber sizes to best match your spray application
  • Keep a perfect spray pattern by quickly cleaning impingement ports
close
Hose Manifold & Gun Filters Hose Manifold & Gun Filters Hose Manifold & Gun Filters

Hose Manifold & Gun Filters

New Lightweight Hose Manifold

  • New lightweight aluminum hose manifold
  • Ball checks included to prevent chemical leakage from manifold

Gun Manifold

  • Easy access to gun filters without removing hose manifold from gun
close
Responsive Trigger Responsive Trigger Responsive Trigger

Responsive Trigger

  • Over 30% shorter trigger pull compared to its' predecessors for an improved responsiveness
  • Wider trigger design for less fatigue and improved comfort
  • One or two finger trigger pull design
close
Handle and Hand Strap Handle and Hand Strap Handle and Hand Strap

Handle and Hand Strap

Lightweight handle design for ultimate ergonomics

  • Temperature stable with great strength and heat resistance
  • Larger, ergonomic design for improved comfort and reduced fatigue
  • Easily removable from the gun body with one screw for simple repair and replacement

Hand Strap

  • Designed to reduce sprayer fatigue and required grip strength when holding the gun
  • Easy to adjust and remove from the sprayer
close
QuickFlex Technology QuickFlex Technology QuickFlex Technology

QuickFlex Technology

  • Effortlessly swap betwen CS and AP modes
  • Easy access to clear shot fluid
  • Handle designed for both ClearShot Fluid or Air Purge use
close
Tool-Less Manual Valves Tool-Less Manual Valves Tool-Less Manual Valves

Tool-Less Manual Valves

  • New wing nut design allows valves to be open and closed by hand or with a standard nut driver
close
On/Off Knob On/Off Knob On/Off Knob

On/Off Knob

  • 1/4 turn easily shuts off flow
  • Knob aligned up/down = material is flowing
  • Knob aligned left/right = material is shut off
close

The FX Difference


FX Size And Weight

Lightest Gun On The Market

Over 30% lighter than the Fusion PC

Gun Design

Narrow front end allows for easy access to small areas, while the lightweight balanced feel helps reduce fatigue

Gun Balance

The most balanced gun in your hand with hoses attached. 9X the improved balance compared to the Fusion PC

FX Service and Maintance

ProConnect FX Cartridge

Replace the FX Cartridge in seconds for a perfect rebuild every time

RapidSwap Mix Chamber

Easily access the mix chamber in seconds without having to disassemble the gun for quick changes of mix chamber sizes, or to clean impingement ports

FX Spray Technology

DuoFlo Valving

ProConnect cartridge design for a perfect rebuild in seconds. DuoFlo valving eliminates side seals and provideds precision control and mixing

QuickFlex Technology

Switch effortlessly between ClearShot and Air Purge modes by easily swapping the air piston, giving you the flexibility to tackle any project with confidence

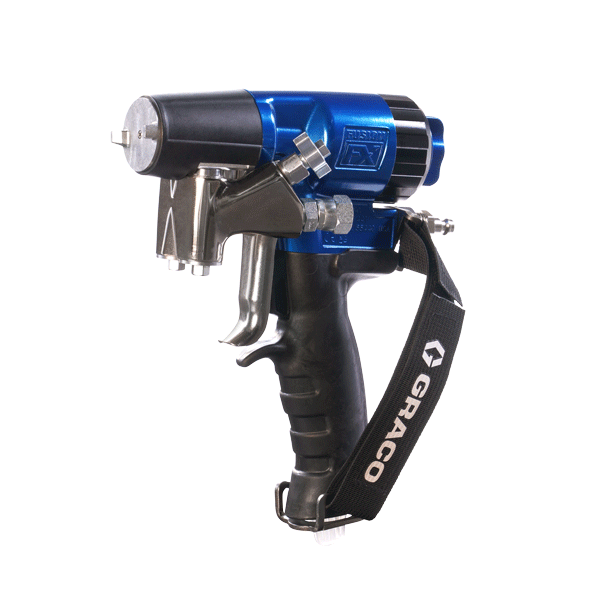

The NEW Fusion FX

The Smallest, Lightest, Best Balanced Gun Ever Built

FX Fluid Flow Animation

Watch Graco's DuoFlo Valving Technology in action on this Fusion FX Spray Gun.

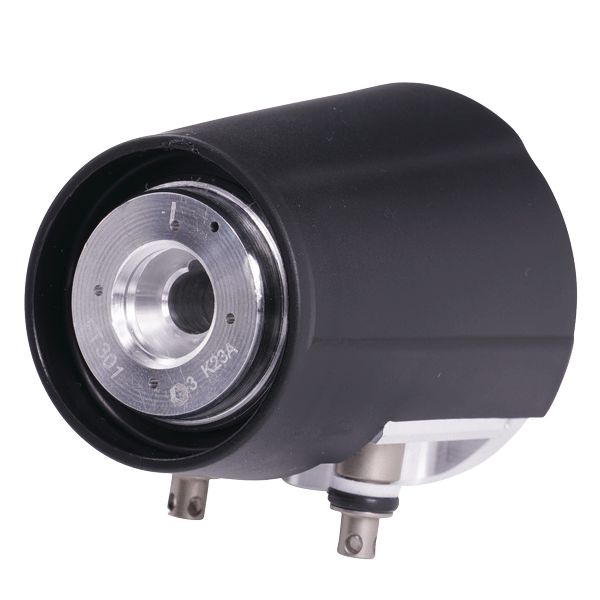

FX Cartridge With ProConnect

Rebuild technology for quick and simple rebuilds
Front
  • Easy access to RapidSwap Mix Chamber
  • Small diameter for spraying in tight locations
  • Location to clean off air hoses

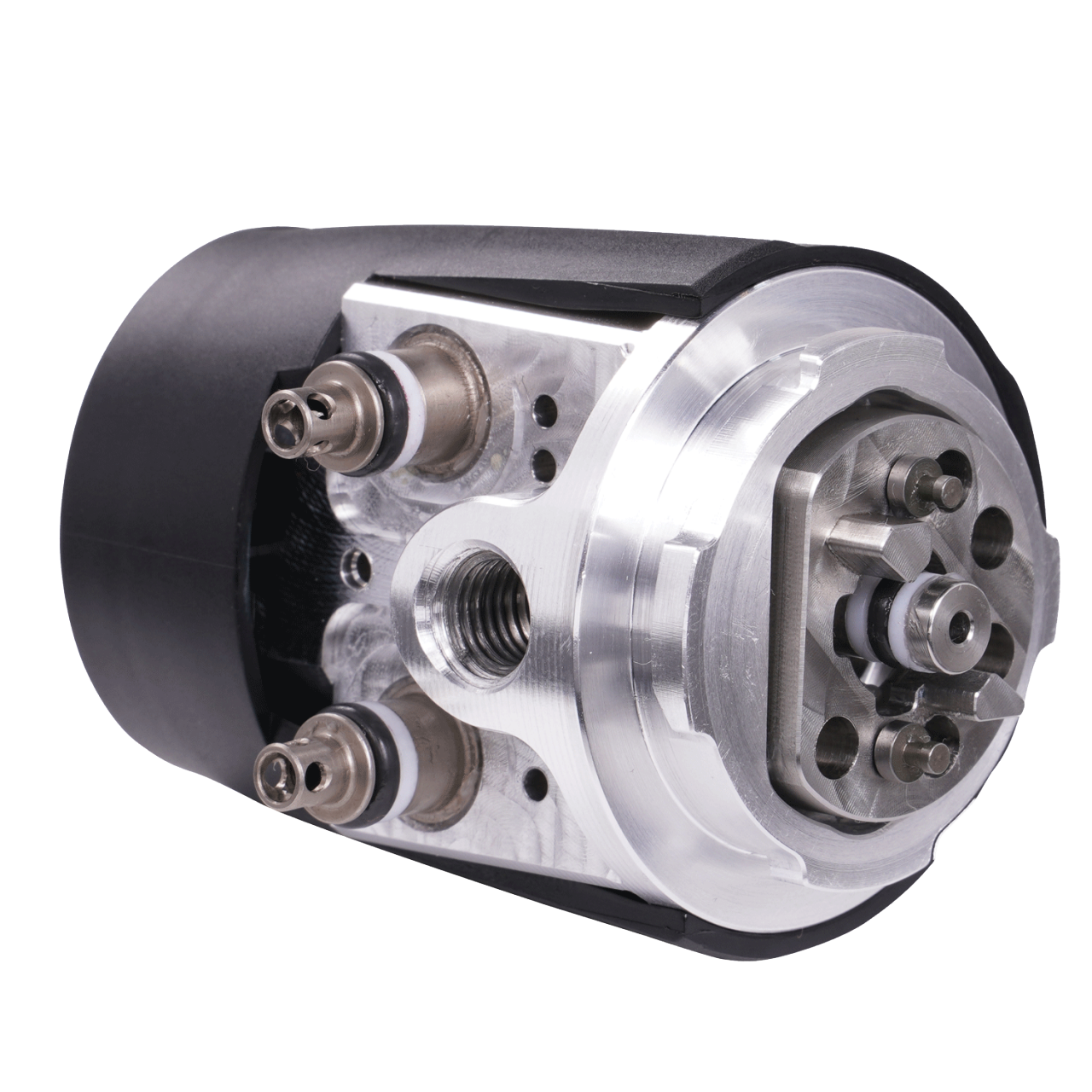

Bottom
  • Check valves for clean attachment to hose manifold
  • Fluid weep holes for early detection of when a cartridge should be replaced

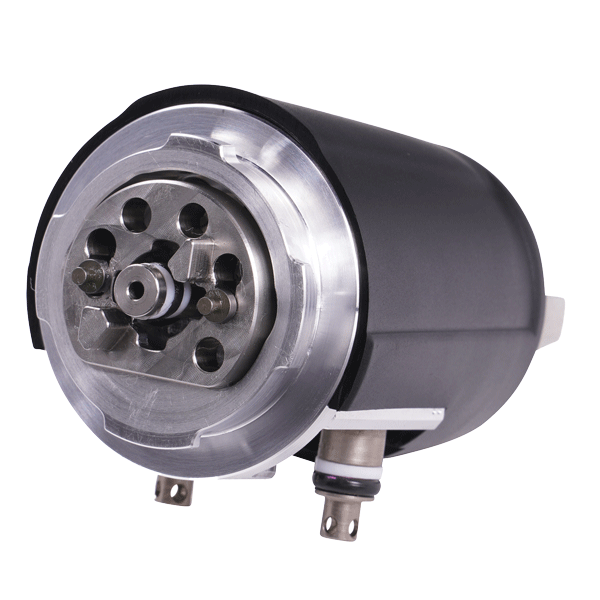

Rear
  • Simple attachment to Air Piston
  • Fluid connection when using CS Fluid
  • Easy access to DuoFlo valves

It's A Game Changer...

Have the right equipment for the job. Finish faster, and save money doing it. See what the Fusion FX Spray Gun can do for your next job.

Revolutionary Flexible XChange Fusion Gun



FX Cartridge

Quick XChange FX Cartridge with ProConnect
ProConnect 1

1) Remove hose manifold

ProConnect 2

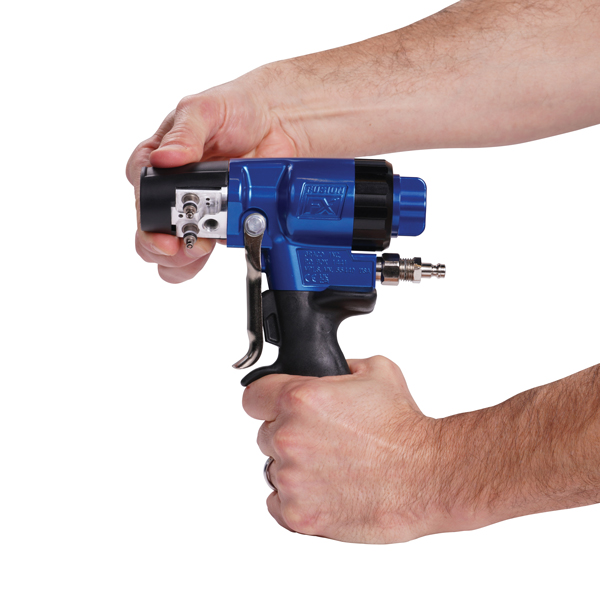

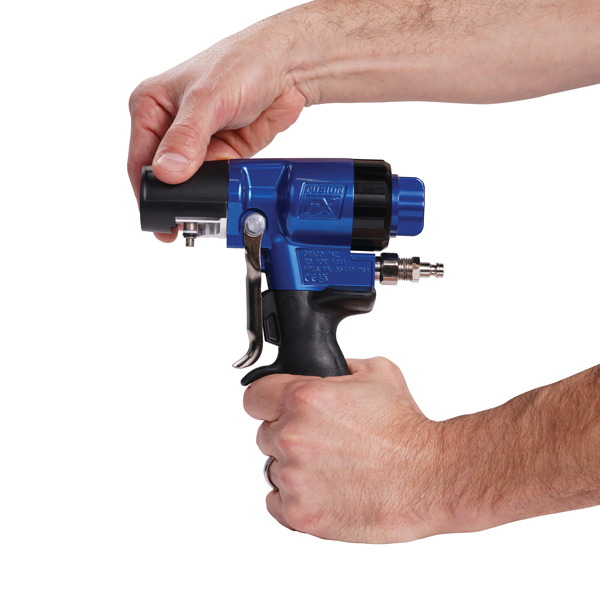

2) Twist cartridge 1/8 turn CCW

ProConnect 3

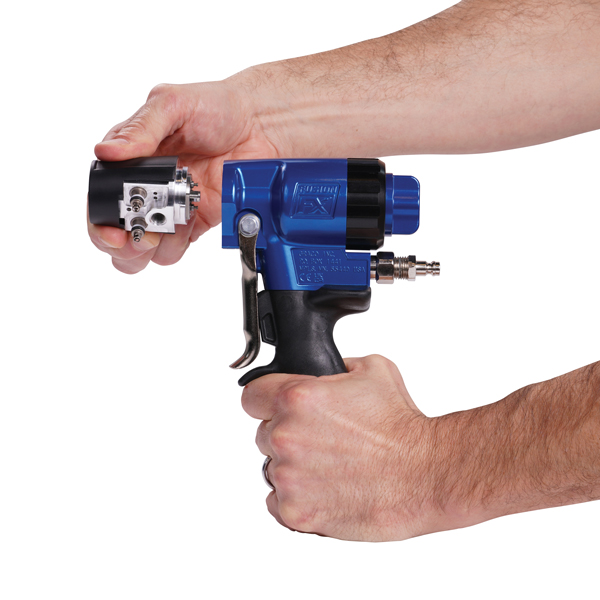

3) Pull cartridge away from gun body

ProConnect Pump

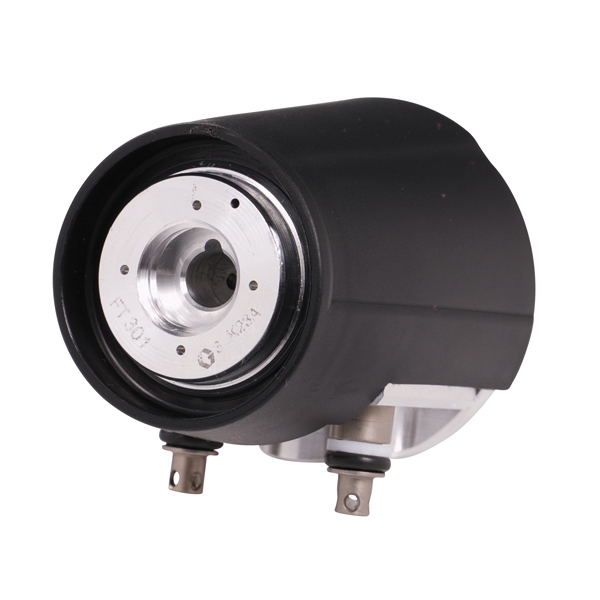

The FX Cartridge



FX Mix Chamber & Air Cap

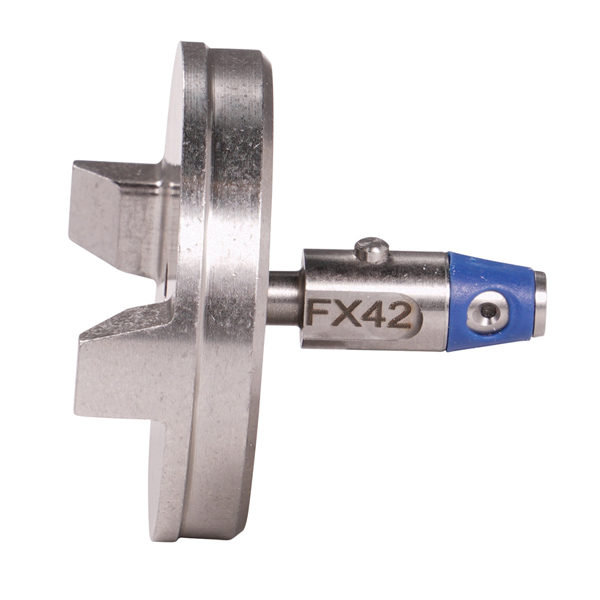

RapidSwap Mix Chamber
ProConnect 1

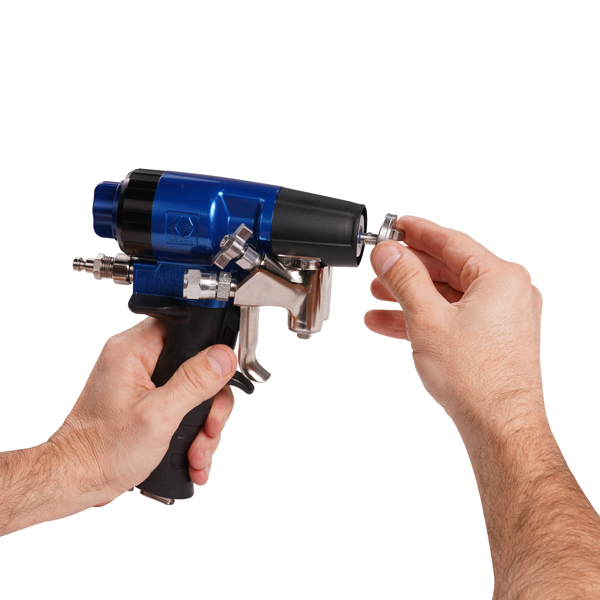

1) Insert chamber into FX Cartridge making sure alignment pin is at the 12 o'clock position

ProConnect 2

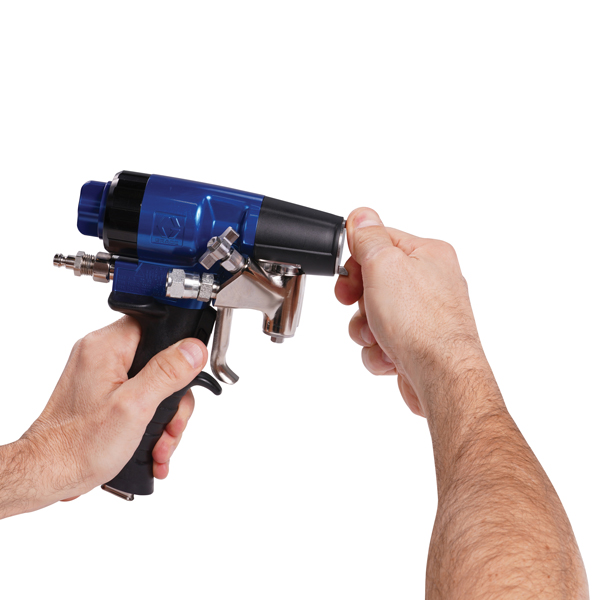

2) Hand tighten. The tip of the mix chamber should be flush with the air cap

ProConnect 3

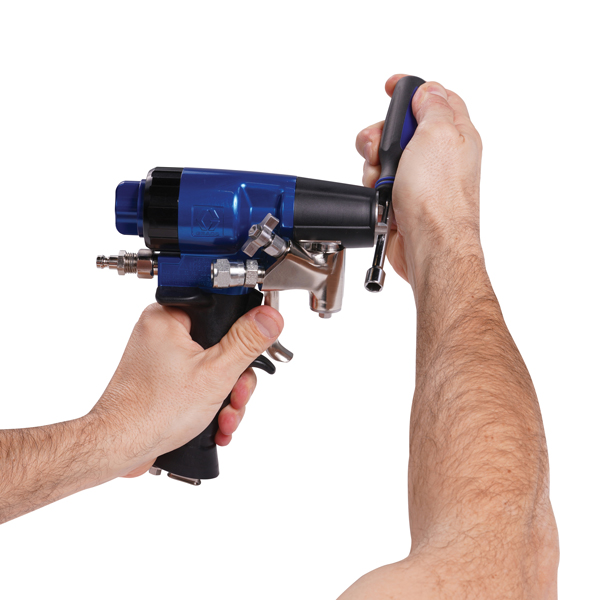

3) Snug air cap tight using a tool to be sure the air cap stand-offs are at the 9 and 3 o'clock positions

ProConnect Pump

FX Air Cap/Mix Chamber

QuickFlex Technology

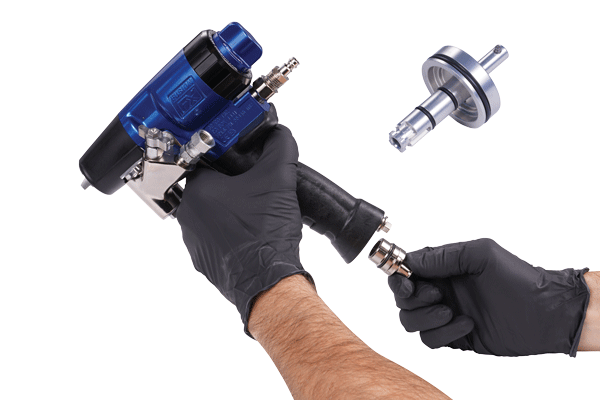

Spray in ClearShot or Air Purge Mode With a Simple Air Piston Swap

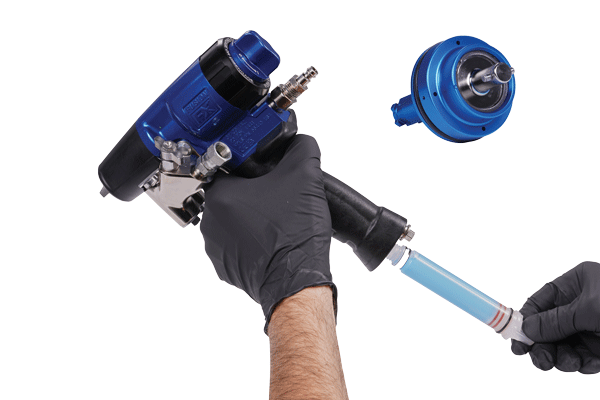

ClearShot

For reduced drilling and improved pattern retention. Most effective when spraying closed cell foams. Utilized existing CS tubes.

Air Purge

For traditional spraying, most effective for applying open cell foams and polyureas.

Support

Visit the Fusion FX Support page for videos, manuals and other resources to get the most out of your new gun!
