Gusmer GH-3
Gusmer GH-3
All in one hydraulic proportioner for Spray Foam & Polyurea
The Gusmer GH-3 is engineered for those who demand performance and practicality without compromise. With a focus on simplicity, affordability, and robustness, the Gusmer GH-3 is designed for sprayers who seek a reliable and cost-effective solution. Crafted to excel in the most challenging job site conditions, this innovative system ensures unparalleled reliability. With its seamless operation and user-friendly controls, the Gusmer GH-3 prioritizes simplicity, enabling swift training and minimizing troubleshooting time.
Reliable, Robust, Proven Graco Quality
From waterproofing to bedliners and spray foam applications, the Gusmer GH-3 stands as your all-in-one solution, exhibiting remarkable versatility to meet the diverse demands of your projects. Affordability is seamlessly woven into the Gusmer GH-3's design, offering quality, robustness, and reliability without compromise.
Experience the assurance of quick and direct support by leveraging Graco's extensive global distribution network. Whether you require assistance, maintenance, or replacement parts, our dedicated support system is at your disposal, ensuring uninterrupted workflow and peace of mind.
Why choose the Gusmer GH-3
Choose the Gusmer GH-3 for a reliable, efficient, and cost-effective solution that seamlessly integrates into your workflow, setting a new standard in performance and user satisfaction.
Effortless Operation
User-friendly controls ensure simplicity, quick training and minimized troubleshooting time.
Reliability under Pressure
Built on Gusmer's legacy of robust performance. The Gusmer GH-3 offers unmatched reliability in the toughest job site conditions
Affordability without compromise
Quality, robustness and reliability without compromising performance
Gusmer GH3 hydraulic proportioner
Control panel & electrical cabinet
- Easy access for troubleshooting or repairs
- Simple controls for ease of use
Fluid & recirculation manifold
- Proven Graco design
- Analogue pressure gauges – for easy pressure reading
- Set up for easy recirculation of the material
Y-strainer with inlet temperature & pressure
- Easy troubleshooting
- Filters to collect iso crystals and debris
- Simple preventive maintenance
Pump lowers
- Easy to service
- Durable & robust
- Multiple sizes available for off-ratio applications
Hydraulic pump system
- Durable and reliable
- Capable of operating in harsh environments
- Delivers a stable and smooth performance
- Less pulsation
12 kw (2x 6kw) primary heaters
- With control and safety features for accurate and reliable heating performance
Reversing sensor
- For pump position indication
- Non-contact for longer life
Clear pump cover
- For easy visual movement of pump line
Which model
suits you best:
| Models | Gusmer GH-3 - 2001752 | Gusmer GH-3, Single Hose package – HS01752 | Gusmer GH-3, Multi Hose package – HH01752 | |
|---|---|---|---|---|
| Options | Voltage - 400V, 3PH-N |  |
|
|
| Whip Hose Included - whip hose (3m/10ft, 240 bar/3500psi) | |
|
||
| Heated Hose HP (15m/50ft, 240 bar/3500psi) | 1x 15m | 4x 15m |
| Technical Specifications | |
|---|---|
| MAX OUTPUT (120CC PUMPS): | 15 kg/min @ 110 bar |
| 9 kg/min @ 160 bar | |
| 7 kg/min @ 240 bar | |
| Electrical Consumption: | 400 VAC 3o+N//50/60 Hz |
| Heating Power: | 12kW |
| Hose Heating: | 3 kW |
| Moter Power: | 5.5 kW |
| Total System Load: | 20.000 W |
| Machine Consumption: | 37A full load peak current |
| Max. Hoses Length: | 93m (for foam) |
| 78m (for polyurea) | |
| Weight: | 258kg (without oil) |
| Oil Capacity | 18 L |
| Dimensions: | 13,56 cm x 9,54 cm x 6,7 cm |
Stand out over competition
Gusmer GH-3 is more than just a machine; it's a strategic partner for contractors like you. See how the Gusmer GH-3 stands out from competition and what it can do to enhance your business. Join the ranks of those who have elevated their craft with Graco’s commitment to excellence.
- Less hydraulic oil: for a cheaper start-up and maintenance
- More power: for a stable spray pattern & consistent flow – all day, every day
- Less Noise: for a more pleasant work environment
- Ease of pump maintenance: easy to access Pump Base/Ball Check assembly
- Global distribution network: for fast and premium service
Download the technical manuals below:
Maximize your Gusmer GH-3's potential with the right accessories

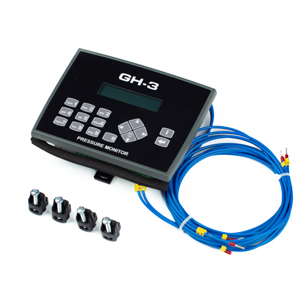

Pressure Imbalance Kit
For Quality assurance with every job, the Gusmer GH- 3 has an optional pressure imbalance kit that monitors the A & B fluid pressures. The pressure imbalance settings and alarm can be activated and adjusted. When an error occurs, the machine automatically shuts down, stopping you from applying bad foam or polyurea.
T3 - Carbon steel
Experience transfer efficiency with the T3 pump
The T3 Transfer Pump merges Graco's proven Merkur air-motor with the popular T2 lower. Operating at a 3:1 ratio, it achieves optimal fluid pressure while using less air pressure. The T3 pump is rated for a continuous output of 17 lpm, allowing enough flow to easily keep up with your proportioner.
- Easier to maneuver - Streamlined design, the T3 has an overall height 9,4 cm lower than the T2 pump, facilitating easy removal from drums within spray rigs. Experience greater agility and convenience in your workflow.
- Less noise - Studies show the T3 Transfer Pump is approx. 3x quieter than the T2 Transfer Pump.
- Less maintenance - The air motor switching is completely pneumatic. This differs from T1 and T2 Transfer Pumps, which use a mechanical reversing mechanism in the air motor.

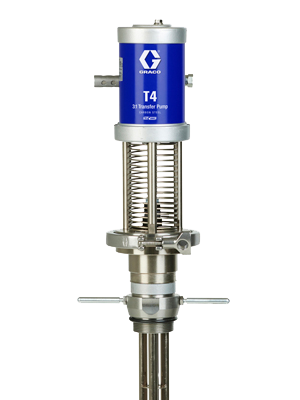

T4 - Carbon steel
Quickly connect & disconnect the air motor from the new T4 Transfer Pump
The T4 Carbon Steel pump is a versatile 3:1 ratio pump equipped with ProConnect technology, allowing for swift and hassle-free connection and disconnection of the air motor from the pump lower.
- Easier to manoeuvre – The T4 pump is designed for easy maneuvering between drums. By swiftly disconnecting the air motor from the lower before transferring, the pump becomes lighter in weight. This not only enhances maneuverability but also reduces the required ceiling height for your rig.
- Quick transfer between drums – Facilitate efficient material transfer by rapidly switching between drums. With the use of multiple pump lowers, you can change to a new drum without the mess of dripping chemicals, ensuring a cleaner and more convenient process.
- Eliminate downtime – Minimize downtime and maintain operational efficiency. The T4 pump allows for quick installation of a spare pump lower when maintenance is required, ensuring that you can get back up and running quickly.

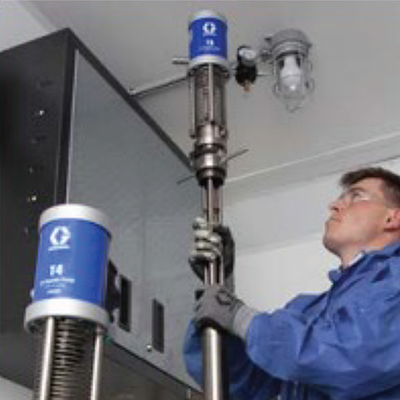

THE OLD WAY

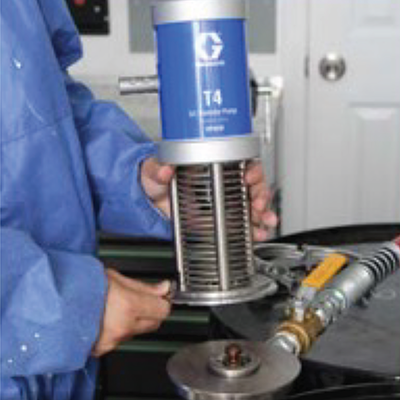

THE NEW WAY
Quick transfer between drums
Supply pump accessories
Elevate your Gusmer GH-3's performance with our supply pump accessories. Designed as an integrated system, these accessories ensure optimal output, superior efficiency, and extended equipment life. Our rigorous testing guarantees outstanding performance, making them the perfect match for your Gusmer GH-3. Choose quality, choose durability—enhance your pump's capabilities with Graco.
The following supply pump accessories are available for the Gusmer GH-3
- Reactor manifold circulation kit with return tubes, return fluid lines and dryers
- Desiccant replacement

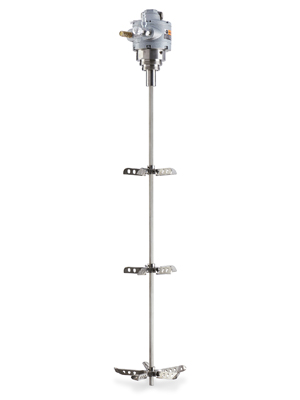

- Expandable blade mixer, extended shaft, high viscosity, up to 2000 centipoise
Heated hoses
Designed exclusively for seamless integration with the Gusmer GH-3 spray foam and polyurea proportioner, through uniform distribution of the copper resistance element along the hose, precise and consistent control of product application temperature is achieved. With Graco heated hoses, expect unparalleled performance and reliability, ensuring optimal operation of your Gusmer GH-3 system.

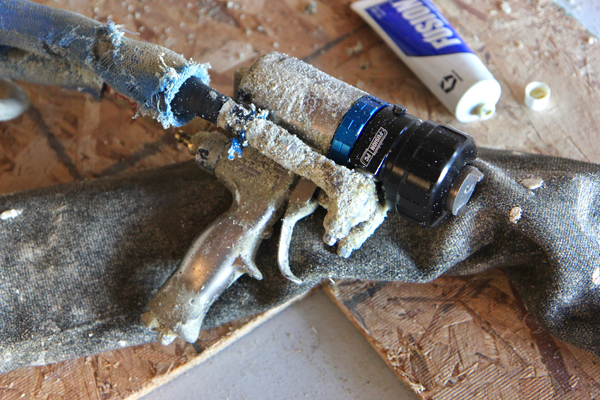

Spray Foam and Polyurea Guns
Graco offers the widest range of top-quality spray foam and polyurea guns available today. From the ever popular Fusion AP and Fusion PC, Graco offers spray foam and polyurea guns that tackle any application or environment you can throw at them. Don’t forget to choose your gun separately when ordering your Gusmer.
For more information on additional gun options, see our parts and accessories brochure.
See the Gusmer GH-3 in action!
Meet the Gusmer GH-3 and come see it in action. RSVP now for one of the events that showcase excellence without compromise!
