FinishPro HVLP
HVLP Fine Finish Sprayers
FinishPro HVLP Sprayers
Graco's FinishPro HVLP sprayers incorporate the newest technology allowing contractors and woodworkers to achieve the highest quality finish available in the industry. The new EDGE II guns allow spraying at any angle while the adjustable Turbo Control reduces heat and allows you to match fan speed to what you require for the optimal finish. FinishPro HVLP sprayers are now available in Standard, ProContractor and ProComp models matching the features and performance to what each contractor needs across a range of projects like furniture, cabinets, door frames, and railings. With the new TurboForce technology, Graco FinishPro HVLP sprayers are one of the coolest running, longest life HVLP sprayers on the market.

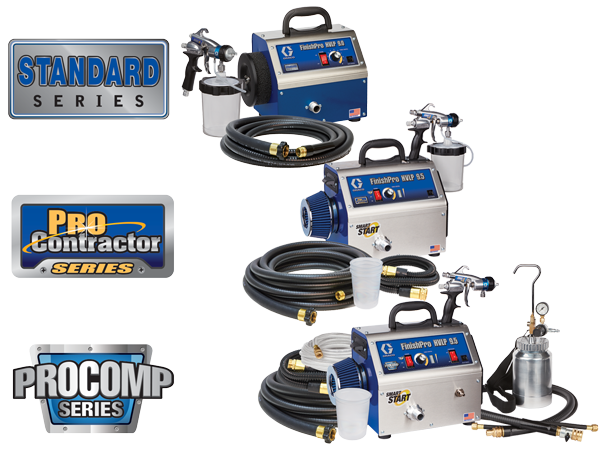

Find the Right Sprayer
Standard Series
Built for Small Jobs
Features Include:
- FlexLiner Bag System - Spray at any angle, even upside down
- TurboForce Technology - Turbine design builds more pressure through each stage, resulting in more performance at the gun
- Turbo Control System - Reduce heat by adjusting the turbine speed to match the performance you require
ProContractor Series
Built for Small-to-Medium Jobs
Includes all the Standard Series Features PLUS:
- SmartStart Turbine - Automatically shuts down when you are not spraying, reducing heat and extending turbine life
- Ultimate Control EDGE II Plus gun and 30 ft Super-Flex hose
- Includes industry leading Dual Filtration System, Needle/Nozzle Toolbox, and on-board gun holder
ProComp Series
Built for Medium-to-Large Jobs
Includes all the Standard & ProContractor Features PLUS:
- Double the fluid capacity and reduced weight by separating the material from the spray gun
| STANDARD SERIES | PROCONTRACTOR SERIES | PROCOMP SERIES | ||||
| FinishPro HVLP 7.0 | FinishPro HVLP 9.0 | FinishPro HVLP 7.0 | FinishPro HVLP 9.0 | FinishPro HVLP 9.5 | FinishPro HVLP 9.5 | |
| FEATURES | ||||||
| FlexLiner Bag System | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| TurboForce Technology | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Turbo Control System | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| SmartStart Turbine | ✓ | ✓ | ✓ | ✓ | ||
| Dual Filtration | ✓ | ✓ | ✓ | ✓ | ||
| On-Board Gun Holder | ✓ | ✓ | ✓ | ✓ | ||
| Double Capacity | ✓ | |||||
| SPECIFICATIONS | ||||||
| Turbine Stages | 3 Stage | 4 Stage | 3 Stage | 4 Stage | 5 Stage | 5 Stage |
| Maximum psi (bar) | 7.0 (0.48) | 9.0 (0.62) | 7.0 (0.48) | 9.0 (0.62) | 9.5 (0.65) | 9.5 (0.65) |
| Cup Size | 1 qt (1 l) | 1 qt (1 l) | 1 qt (1 l) | 1 qt (1 l) | 1 qt (1 l) | 2 qt (1.9 l) |
| Weight | 18 lb (8.1 kg) | 19 lb (8.6 kg) | 23 lb (10.4 kg) | 24 lb (10.8 kg) | 26 lb (11.7 kg) | 30 lb (13.6 kg) |
| Max Hose Supported | 40 ft (12 m) | 40 ft (12 m) | 60 ft (18 m) | 60 ft (18 m) | 60 ft (18 m) | 60 ft (18 m) |
| Air Ball Valve | ✓ | ✓ | ✓ | ✓ | ||
| Artisan Air Valve Installed | ✓ | ✓ | ✓ | ✓ | ||
| Part Number | 17N263 | 17N264 | 17N265 | 17N266 | 17N267 | 17N269 |
| INCLUDES | ||||||
| Gun | EDGE II | EDGE II | EDGE II Plus | EDGE II Plus | EDGE II Plus | EDGE II Plus |
| Super-Flex Air Hose | 20 ft (6 m) | 20 ft (6 m) | 30 ft (9 m) | 30 ft (9 m) | 30 ft (9 m) | 30 ft (9 m) |
| Whip Hose | 4 ft (1.2 m) | 4 ft (1.2 m) | ||||
| Quick Release Fluid Set | #3 | #3 | #3 | #3 & #4 | #3, #4, & #5 | #3, #4, & #5 |
| Filter | Foam | Foam | Automotive | Automotive | Automotive | Automotive |
Videos
SmartStart Turbine
- Automatically shuts off when not in use so if you're not spraying, it's not running
- Reduces jobsite noise, resulting in less fatigue
- Automatic shut-off reduces heat and extends turbine life
See Why Customers Choose FinishPro HVLP
Standard Series
FinishPro HVLP 7.0 Standard

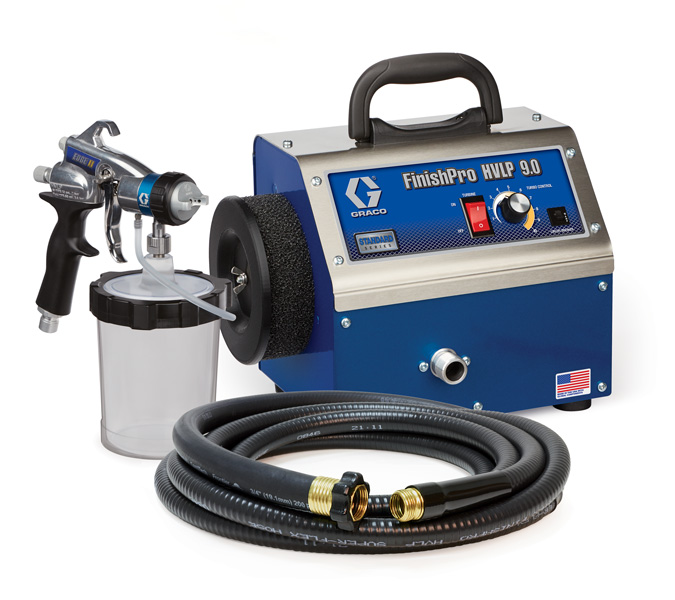

FinishPro HVLP 9.0 Standard (shown)
EDGE II Gun
Patented Single User Control combines material and air flow into one simple control
Exclusive Graco air cap design increases the fluid flow in every need by 4X
Change out needles from the front of the gun with just a click
75% lighter trigger pull than the competition with EasyGlide

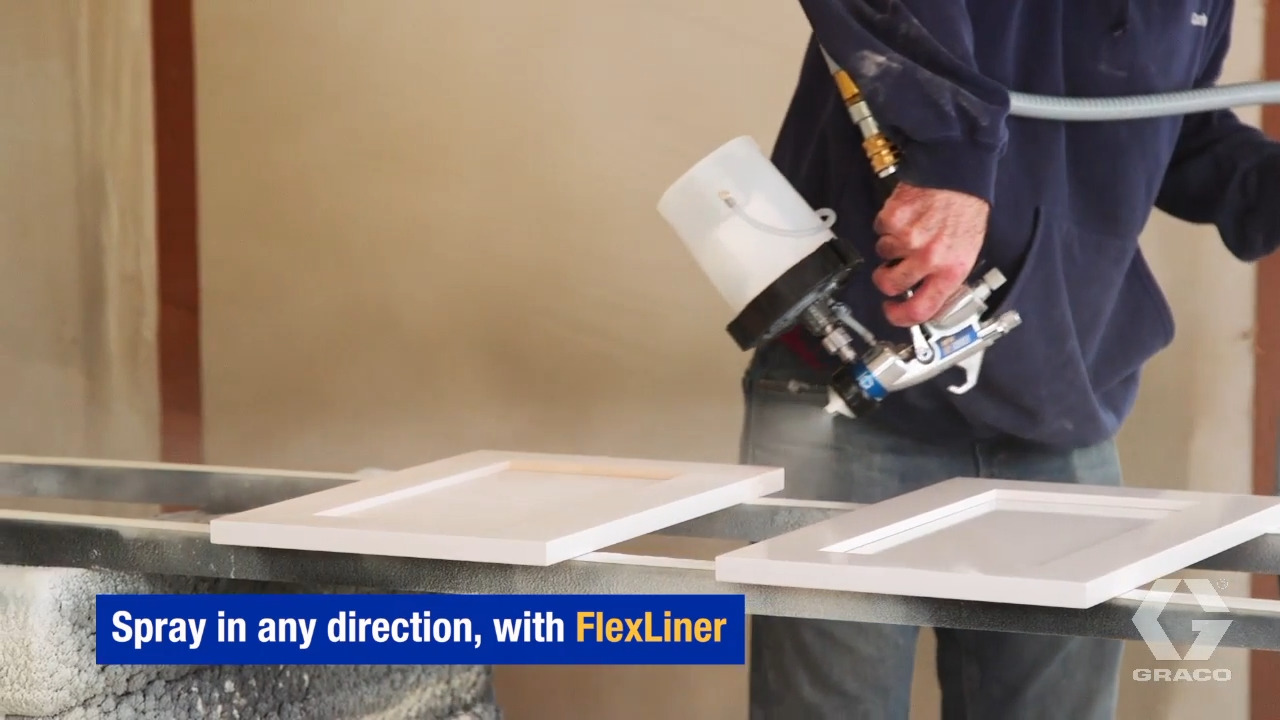

FlexLiner Bag System
FlexLiner Bag system replaces traditional material cups
Spray at any angle with no adjustment, even upside down
Easy cleanup, either reuse the liner or toss, and no suction tube to clean
Super-Flex Air Hose
15% lighter weight than other leading brands for more control at the gun
No tools needed to connect
20 ft of hose included
Standard Filtration System
Washable filter extends motor life and ensures a quality finish
Tool-less filter removal
Out performs foam filters commonly used on other HVLP sprayers
TurboForce Technology
Exclusive, proprietary turbine design builds more pressure through each stage, resulting in more performance at the gun
More air flow and air pressure means higher production with less thinning of material
Generates less heat and provides longer turbine life
Turbo Control System
Adjust TurboForce Turbine speed to match the performance required
Reduces heat build up
Runs quieter
Extends turbine system life
Steel "Tough Box" Design
Rugged, all steel enclosure protects the turbine on the job and during transport
50% smaller size and 30% lighter than the previous version
ProContractor Series
FinishPro HVLP 7.0 ProContractor
FinishPro HVLP 9.0 ProContractor
FinishPro HVLP 9.5 ProContractor (shown)
Super-Flex Air Hose
15% lighter weight than other leading brands for more control at the gun
No tools needed to connect
30 ft of hose included
Dual Filtration System
Premium automotive-grade filter provides industry-leading, high performance filtration
Outperforms foam and traditional paper filters used on most HVLP systems
Needle/Nozzle Toolbox
Store your extra needles and nozzles in a convenient built-in toolbox
SmartStart Turbine
Automatically shuts off when not in use so if you're not spraying, it's not running
Reduces jobsite noise, resulting in less fatigue
Automatic shut-off reduces heat and extends turbine life
Turbo Control System with LCD Display
Adjust the TurboForce turbine speed to match the performance you require
Reduces heat build up
Runs quieter
Extends turbine system life
50% longer hoses
EDGE II Plus Gun
Ultimate control with independent user controls for material volume, air flow, and spray fan size
Exclusive Graco air cap design increases the fluid flow in every need by 4X
Change out needles from the front of the gun with just a click
75% lighter trigger pull than the competition with EasyGlide
Compact and Durable Body
Rugged all steel enclosure protects the turbine on the job and during transport
On-board gun and cup holder allows for easy transport and paint refills with less spills
Separate utility toolbox built-in for needle storage
FlexLiner Bag System
FlexLiner Bag system replaces traditional material cups
Spray at any angle with no adjustment, even upside down
Easy cleanup, either reuse the liner or toss, and no suction tube to clean
ProComp Series

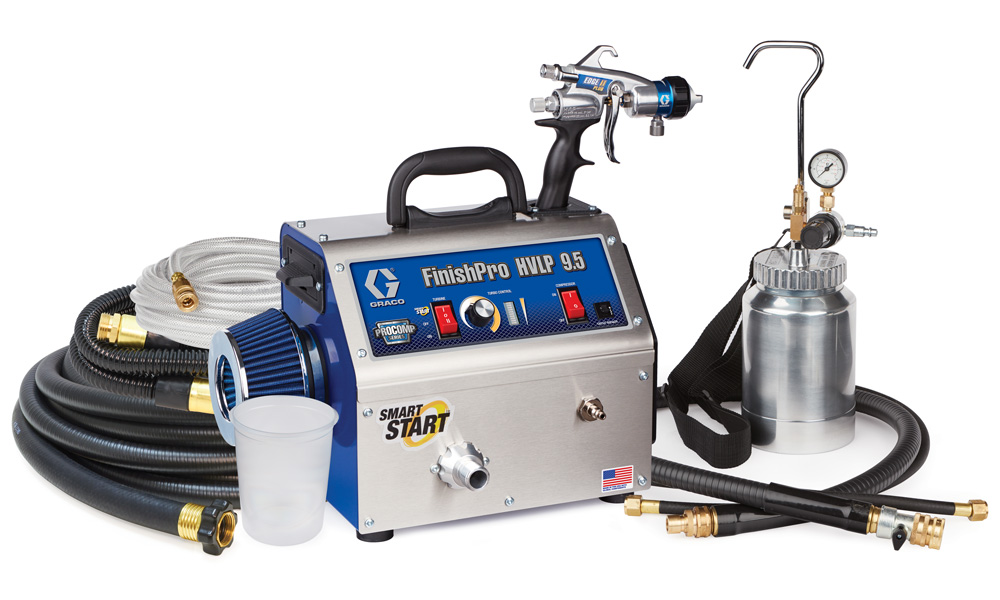

FinishPro HVLP 9.5 ProComp (shown)
Super-Flex Air Hose
Needle & Nozzle Toolbox
Dual Filtration System
FlexLiner Bag System
SmartStart Turbine
TurboControl System with LED Display
EDGE II Plus Gun
Double the Capacity
